Basic devices IZM
Switching capacity 440 V AC, I
cu
= I
cs
from 42 – 100 kA +++ 3 or 4 pole +++ electronic releases
for system protection, selective and universal protection, universal protection with power
measurement +++ rated operational current from 630 – 6300 A +++ rated operating voltage U
e
1100 V for IZM32…3200-1100V
High availability
Withdrawable units +IZM-CAS… +++ Main terminal kits IZM-T… +++ mechanical interlocks
IZM-MIL…
Comprehensive fixed mounted accessories
Motor operator IZM…M… +++ Shunt release IZM…ST… +++ Closing release
IZM…-SR… +++ Undervoltage release IZM…-UV… +++ Auxiliary contact IZM…-AS… +++
Latch check switch IZM…LCS… +++Trip indicator auxiliary switch IZM…-OTS +++ Mechanical
interlocks
Worldwide novelty ARMS
TM
– greater safety for maintenance personnel
If there is an accidental arc, the ARMS
TM s
ystem (Arcflash Reduction Maintenance System)
shuts down faster than a short circuit trip device. In connection with IZM, additional compo-
nents from the accidental arc protection system ARCON provide incremental protection
against accidental arcing.

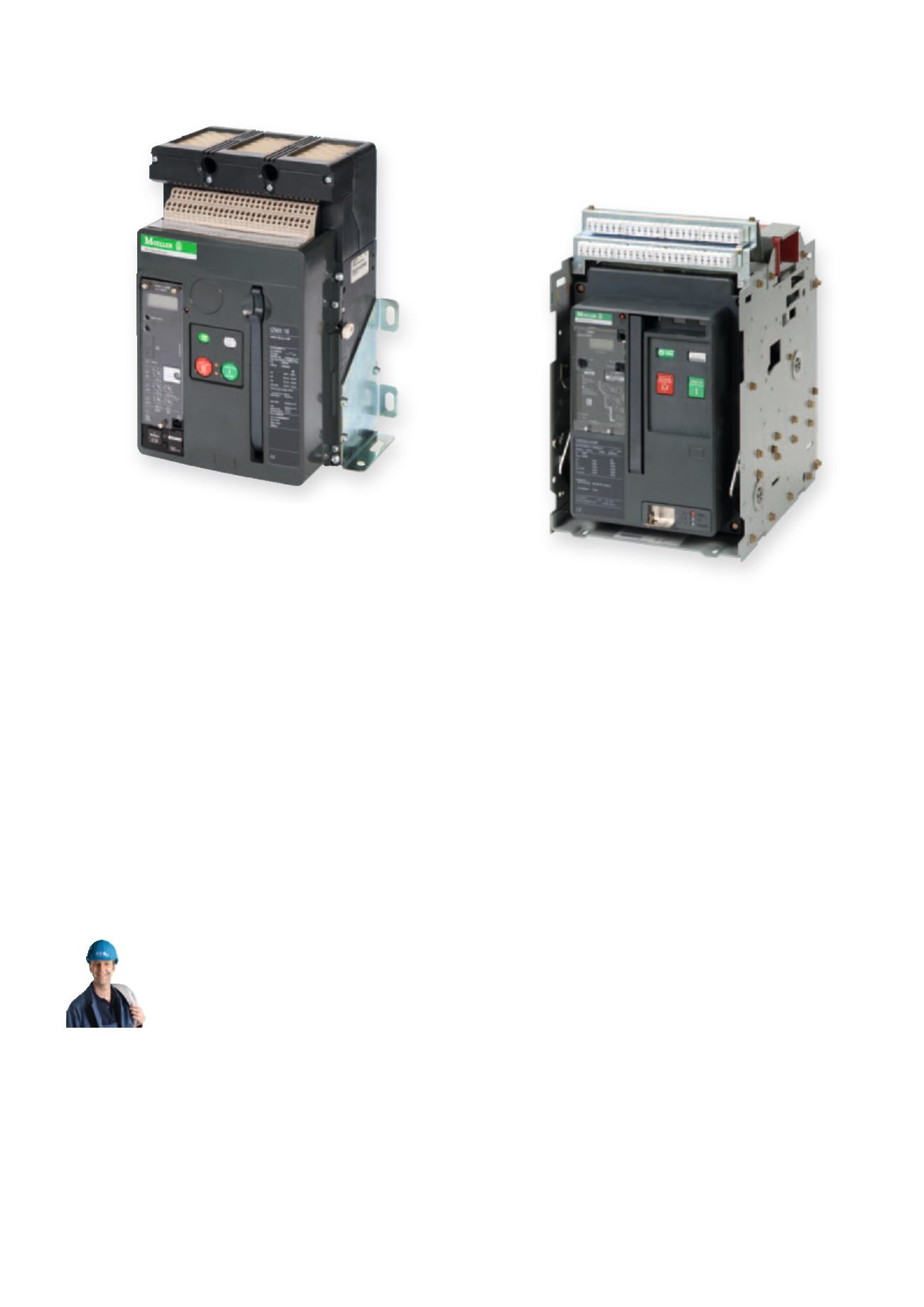

With the new IZM series, Eaton presents a complete offering of air circuit-breakers (ACB)
up to 6300 A. Five construction sizes make it possible to select the most economical
switch for each project.
The new star is the circuit-breaker IZMX16. This innovative concept allows economical
construction of two circuit-breakers within a field width of 600 mm.
There is no greater performance within such small space.
Circuit-breakers IZM up to 6300 A
Switch-disconnectors IN up to 6300 A
Eaton After Sales Service
Testing switching devices in
compliance with regulations
applicable to this technology
