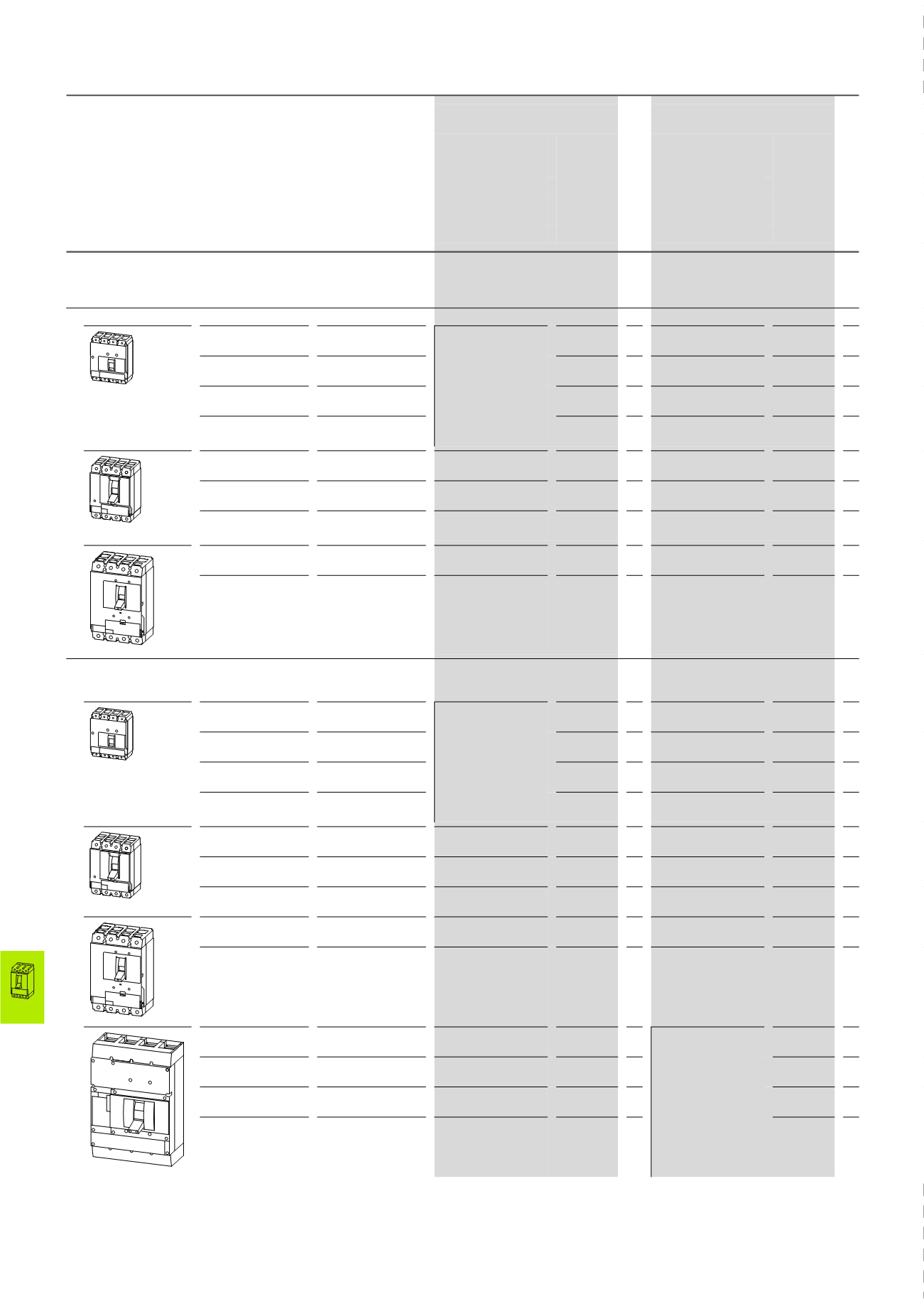

17/44 Circuit-breakers, switch-disconnectors
Switch-disconnectors, 4 pole
2010 CA08103002Z-EN
Switch-disconnectors,4 pole
Fixed mounting
with screw terminals
Fixed mounting
with box terminals
Rated current = Rated
uninterrupted current
Short-circuit
protection, max. fuse
gL-characteristic
Part no.
Article no.
Price
See price
list
Part no.
Article no.
Price
See price
list
In = Iu
A A gL
Switch-disconnectors
2 switch positions Ι, 0
63 125 Screw terminals as
accessories
PN1-4-63
265999
B
100 125 PN1-4-100
266000
B
125 125 PN1-4-125
266001
B
160 160 PN1-4-160
281253
B
160 250 PN2-4-160
266011
S PN2-4-160-BT
118880
B
200 250 PN2-4-200
266012
S PN2-4-200-BT
118881
B
250 250 PN2-4-250
266013
S PN2-4-250-BT
118882
B
400 630 PN3-4-400
266021
S PN3-4-400-BT
111653
B
630 630 PN3-4-630
266022
S PN3-4-630-BT
111654
B
3 switch positions I, +, 0
Can be remotely operated with shunt release XU/XA, remote operator XR,
Can be equipped with trip-indicating auxiliary contact M22-K..
63 125 Screw terminals as
accessories
N1-4-63
266002
B
100 125 N1-4-100
266003
B
125 125 N1-4-125
266004
B
160 160 N1-4-160
281254
B
160 250 N2-4-160
266014
S N2-4-160-BT
118883
B
200 250 N2-4-200
266015
S N2-4-200-BT
118884
B
250 250 N2-4-250
266016
S N2-4-250-BT
118885
B
400 630 N3-4-400
266023
S N3-4-400-BT
111651
B
630 630 N3-4-630
266024
S N3-4-630-BT
111652
B
800 1600 N4-4-800
266029
S Terminals as acces-
sory
1000 1600 N4-4-1000
266030
S
1250 1600 N4-4-1250
266031
S
1600 1600 N4-4-1600
266032
S
PN...-4, N...-4 HPL17044EN
