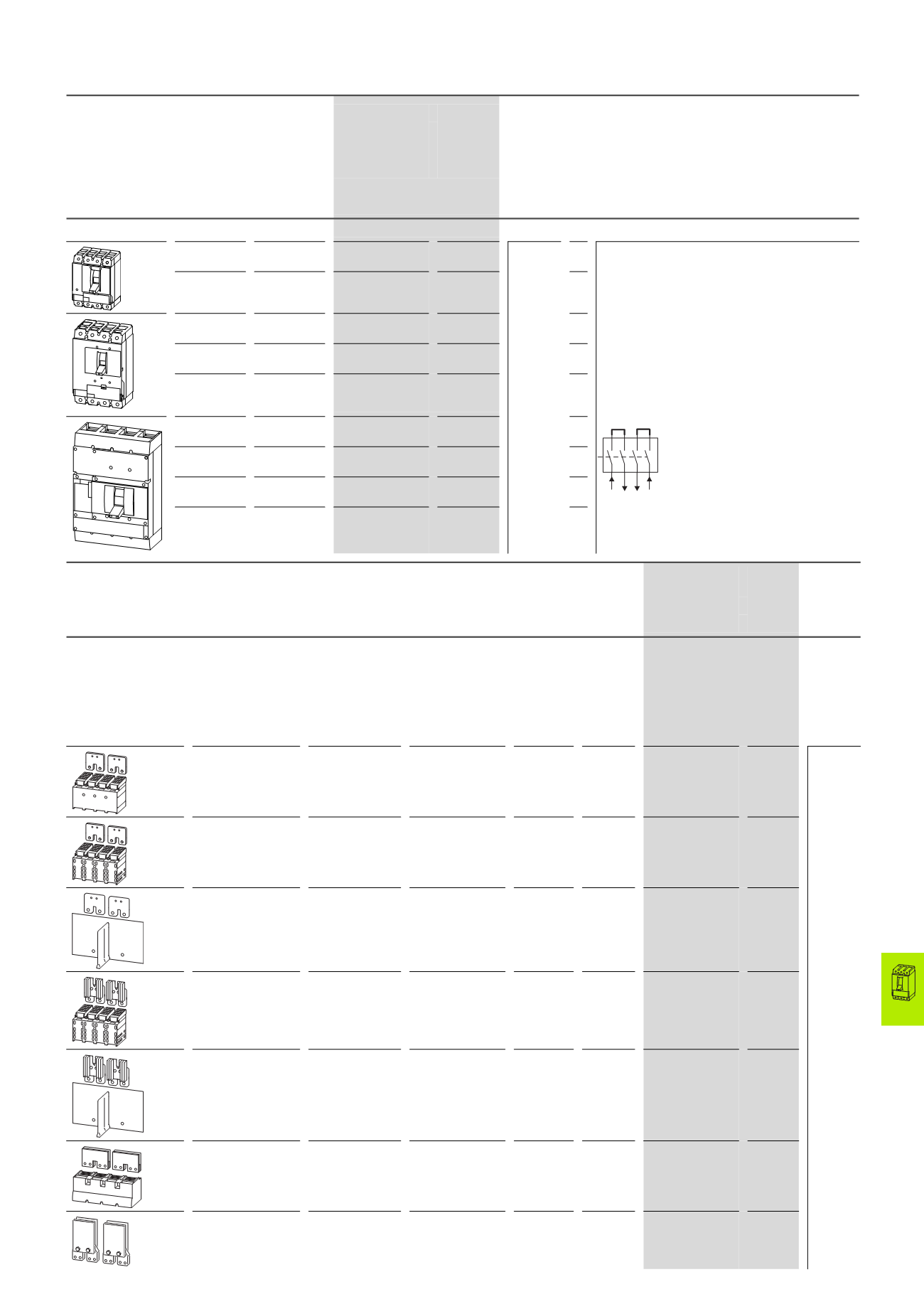

Circuit-breakers, switch-disconnectors
Switch-disconnectors for 1000 V DC, 2 pole
2010 CA08103002Z-EN
17/49
Switch-disconnectors for1000VDC, 2pole
Fixed mounting
Part no.
Article no.
Price
See price
list Ratedcurrent=
Rated
uninterrupted
current
Short-circuit
protection,
max. fuse gR-
characteristic
In = Iu Std. pack Notes
A A gR
Switch-disconnectors for 1000 V DC B = box terminalsS = screw terminals
160 200 N2-4-160-S1-DC
127732
1 off S IEC/EN 60947-3
Main switch characteristics including positive
operation to IEC/EN 60204, VDE 0113.
Isolating characteristics to IEC/EN 60947, VDE 0660.
Protection against electric shock to VDE 0160 part 100.
Switch-disconnectors N can, in addition, be combined
with shunt releases NZM...-XU, NZM...-XA and auxiliary
contacts as well as with remote operator NZM...-XR...
Connection types:
For 2 pole switching, series connection of two poles
each is required. See jumper kits under accessories
Terminals as accessory
Switch can not be combined with plug-in/withdrawable
units and/or connection on rear.
200 200 N2-4-200-S1-DC
127733
S
320 500 N3-4-320-S1-DC
127734
S
400 500 N3-4-400-S1-DC
142267
S
500 500 N3-4-500-S1-DC
142268
S
800 1600 N4-4-800-S1-DC
119890
S
1000 1600 N4-4-1000-S1-DC
119891
S
1250 1600 N4-4-1250-S1-DC
119886
S
1400 1400 N4-4-1400-S1-DC
119887
S
Rated operational
current
For use with Number of
poles
Degree of
protection
Part no.
Article no.
Price
See
price list
Std. pack
In
A
Jumper kits
Model contains parts for upper switch side for 4 pole switches
N...-S1-DC that are used as 2 pole switches for DC.
The jumpers each connect two current paths in series.
Incomer and outgoer at bottom or top, freely selectable.
≥ 1250 A:
For 65 °C ambient air temperature connection at bottom through module plates NZM4-4-XKM2S-1600.
Jumper kit with cover 200 at 65 °C
160 at 70 °C
N2-4-…S1-DC 4 pole/
2 pole
IP2X NZM2-4-XKV2P
131730
1 off
Terminal jumperswith
cover
400 at 70 °C N3-320(400)-S1-DC 4 pole/
2 pole
IP2X NZM3-4-XKV2P
131731
Jumper kit with
insulating plates
500 at 50 °C
400 at 70 °C
N3-400(500)-S1-DC 4 pole/
2 pole
IP00 NZM3-4-XKVI2P
142269
Jumper kit with cover
and heat sink
400 at 70 °C
500 at 55 °C
500 at 40 °C
N3-400(500)-S1-DC 4 pole/
2 pole
IP1X
IP2X
NZM3-4-XKV2P-K
142271
Jumper kit with
insulating plates and
heat sinks
500 at 65 °C N3-500-S1-DC 4 pole/
2 pole
IP00 NZM3-4-XKVI2P-K
142270
Jumper kit with cover 1400 at 40 °C
1250 at 65 °C
N4-4-…S1-DC 4 pole/
2 pole
IP2X NZM4-4-XKV2P
119888
Jumper kit with heat
sink
1400 at 65 °C N4-4-1400-S1-DC 4 pole/
2 pole
IP00 NZM4-4-XKV2P-
1400
119905
N...DC HPL17049EN
