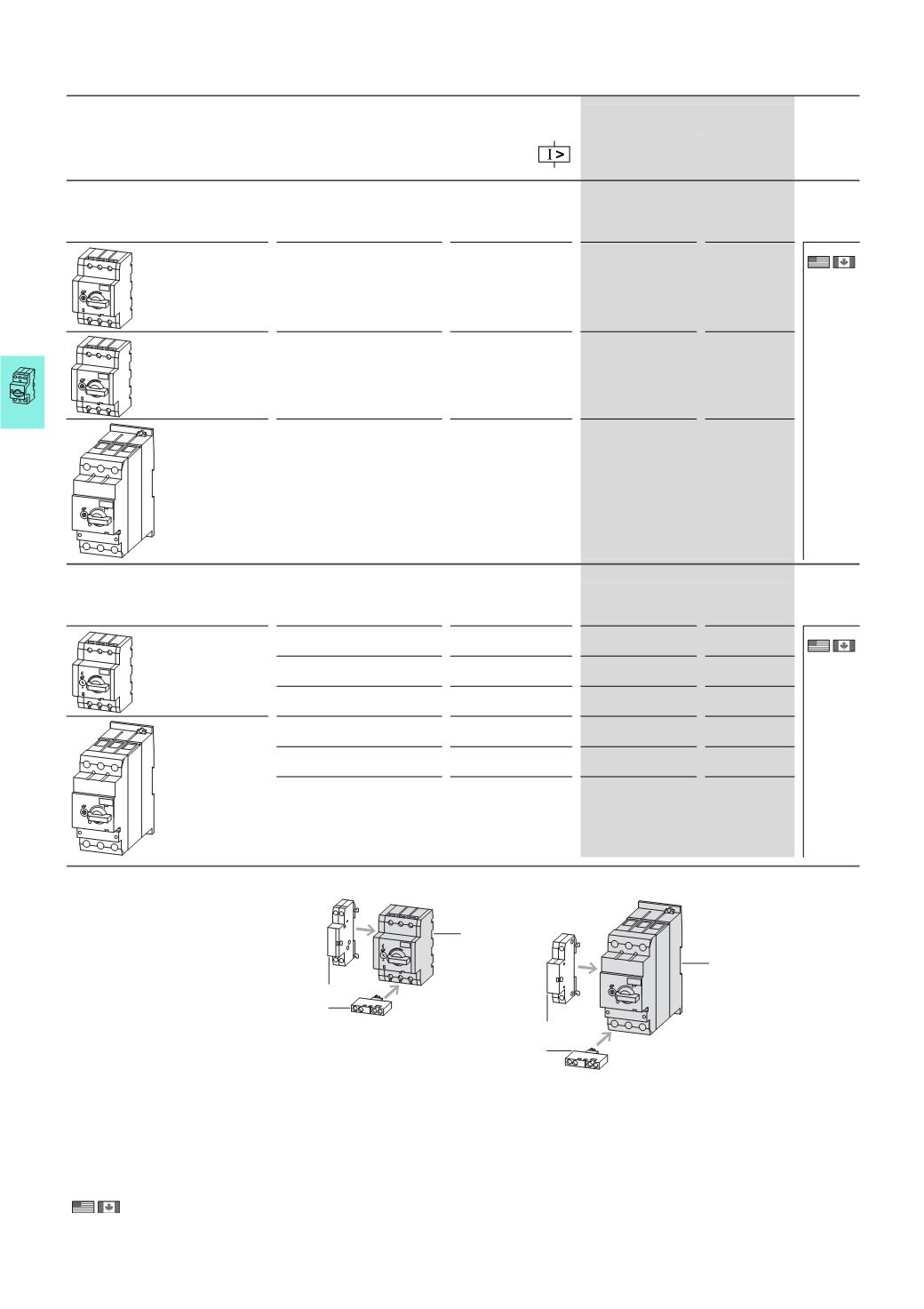

7/86 DC string circuit-breakers, DC switch-disconnectors
2010 CA08103002Z-EN
Max. rated operational current
DC-21A
Permissible solar module
short-circuit currents
Part no.
Article no.
Price
See price list
Std. pack
Ie
A
DC switch-disconnector, open
Rated operating voltage Ue 1000 V
Protection class II
2 pole
20 P-SOL20
120934
1 off
30 P-SOL30
120935
63 P-SOL60
120936
DC string circuit-breakers
Rated operating voltage Ue 900 V
Protection class II
2 pole
12 5 - 9 PKZ-SOL12
120937
1 off
20 9 - 15 PKZ-SOL20
120938
30 15 - 22 PKZ-SOL30
120939
40 22 - 30 PKZ-SOL401)
120940
50 29 - 38 PKZ-SOL501)
120941
60 38 - 47 PKZ-SOL601)
120942
Notes 1) Availability from November 2010
Information relevant for export to North America
NA Certification Request filed for UL and CSA
1
2
3
1
2
3
Accessories Page
2 Auxiliary contacts NHI-E ￫7/10
3 Shunt releases A-PKZ0 ￫7/29
3 Undervoltage releases U-PKZ0 ￫7/29
P-SOL, PKZ-SOL HPL07086EN
