Eaton Industrial Switchgear - xStart switching, protections and actuating motors

7/14

Motor-protective circuit-breakers PKZM01, PKZM0, PKZM4, PKE

Accessories for motor-protective circuit-breakers in enclosures

2010

CA08103002Z-EN

www.eaton.com

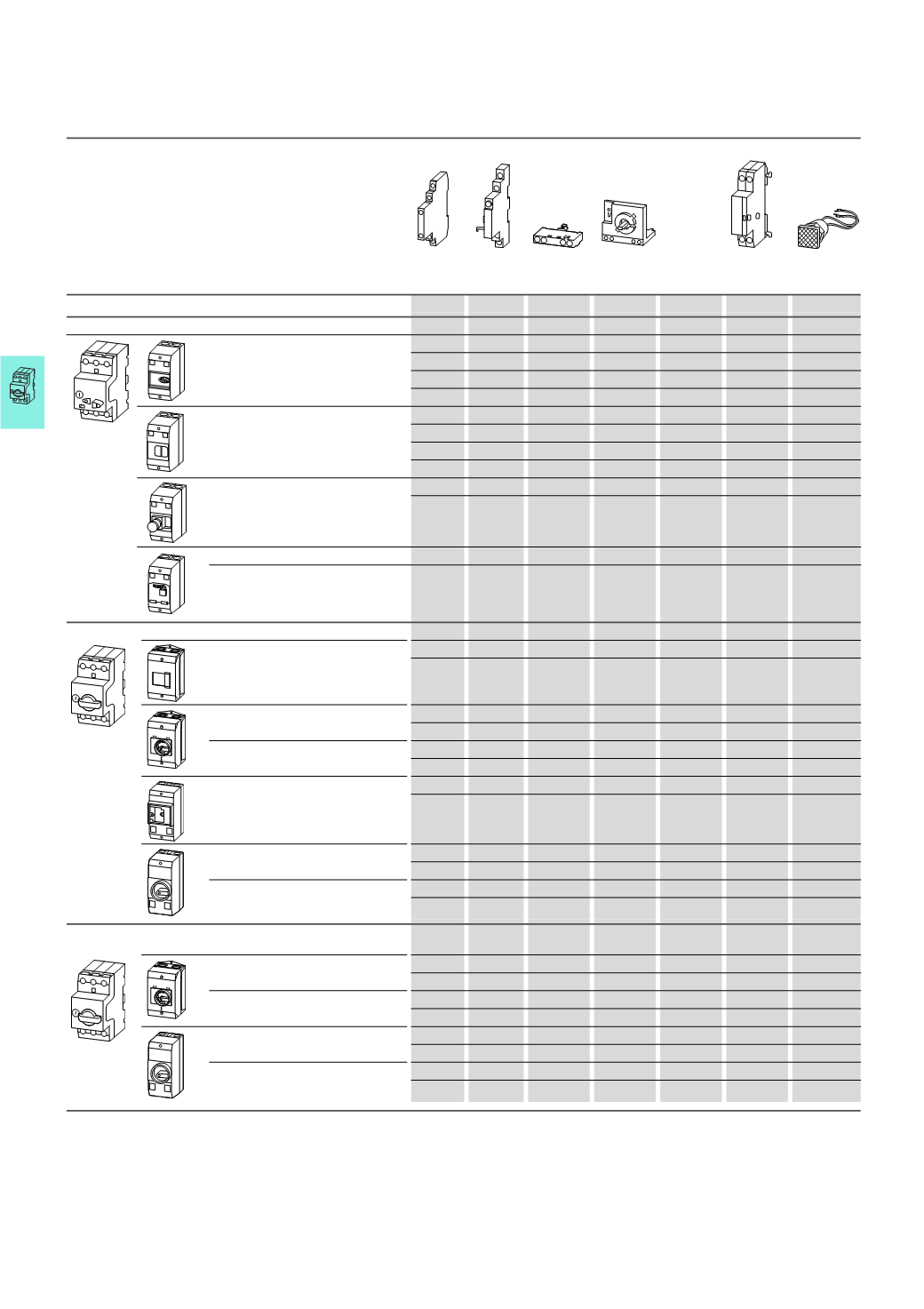

Engineering

Enclosure

Accessories

Part no.

Degreeof

protection

Handle

color

NHI..-

PKZ0

AGM2-..-

PKZ0

NHI-E..-

PKZ0

VHI..-PKZ0 VHI..-

PKZ01

U-PKZ0

A-PKZ0

L-PKZ0

Surface mounting enclosure

Motor-protective circuit-breaker PKZM01

CI-PKZ01

IP40 –

–

●

–

●

–

●

–

●

–

●

–

●

–

●

CI-PKZ01-G

IP65 –

–

●

–

●

–

●

–

●

–

●

–

●

–

●

CI-PKZ01-PVT

CI-PKZ01-PVS

IP65 Red-

yellow

–

●

–

●

–

●

CI-PKZ01-SVB

IP65 –

–

●

–

●

CI-PKZ01-SVB-V

IP65 –

–

●

Motor-protective circuit-breaker PKZM0

CI-K2-PKZ0

IP41 –

●

–

●

–

●

–

●

–

●

CI-K2-PKZ0-G

IP65 Black

●

–

●

–

●

–

●

–

●

CI-K2-PKZ0-GR

IP65 Red-

yellow

●

–

●

–

●

–

●

–

●

CI-PKZ0-M

IP40 –

●

–

●

–

●

–

●

–

●

CI-PKZ0-GM

IP55 Black

●

–

●

–

●

–

●

–

●

CI-PKZ0-GRM

IP55 Red-

yellow

●

–

●

–

●

–

●

–

●

Motor-protective circuit-breaker PKZM0 +

early-make auxiliary contact VHI-PKZ0

CI-K2-PKZ0-GV

IP65 Black

●

–

●

–

●

–

●

–

●

–

●

CI-K2-PKZ0-GRV

IP65 Red-

yellow

●

–

●

–

●

–

●

–

●

–

●

CI-K2-PKZ0-GVM

IP55 Black

●

–

●

–

●

–

●

–

●

CI-K2-PKZ0-GRVM

IP55 Red-

yellow

●

–

●

–

●

–

●

–

●

Notes

The combination possibilities of circuit-breakers in an enclosure with accessory modules are identified by a

●

Always required

PKZM01, PKZM
