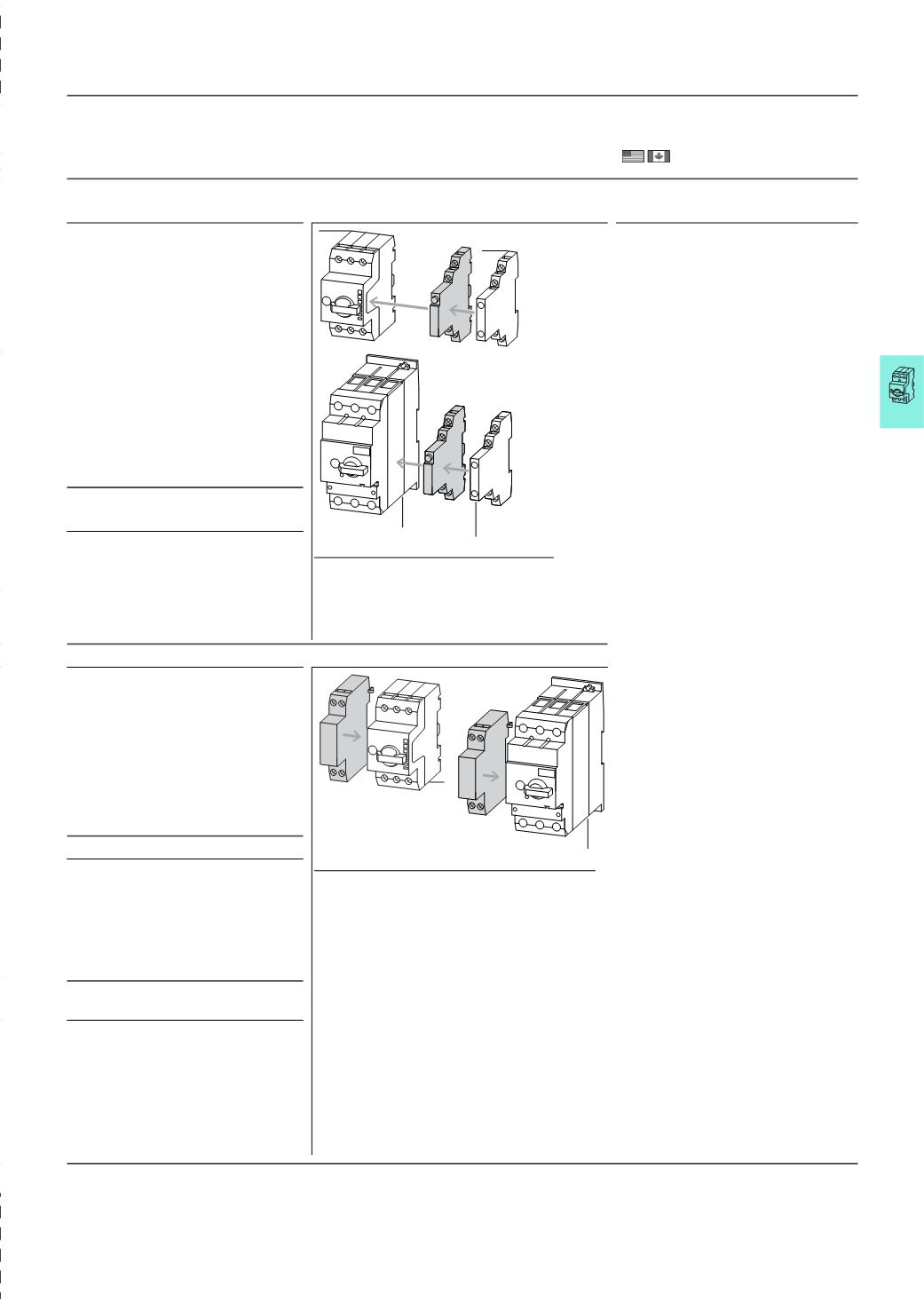

Motor-protective circuit-breakers PKZM01, PKZM0, PKZM4, PKE
Auxiliary contacts, undervoltage releases
Notes Notes Information relevant for export to North America
Product Standards UL 508; CSA-C22.2 No. 14;
IEC60947-4-1; CE marking
UL File No. E36332
UL CCN NLRV
CSA File No. 12528
CSA Class No. 3211-05
NA Certification UL Listed, CSA certified
Can be fitted to front of motor-protective circuit-
breaker, 45 mm width of the motor-protective
circuit-breaker remains unchanged.
For early energization of undervoltage release,
e.g. in emergency switching off circuits to
EN 60204.
VHI20-PKZ0 cannot be used in combination with
PKZ0-X(R).
Can be fitted to the left side of motor-protective
circuit-breakers.
Cannot be combined with:
undervoltage release U-PKZ0
DC: Intermittent operation 5 s
Can be fitted to the left side of motor-protective
circuit-breakers.
Cannot be combined with:
A-PKZ0 shunt release
When combined with circuit-breaker, can be
used as emergency switching off device to
IEC/EN 60204.
Max. rated operating voltage Ue = 690 V, rated
uninterrupted current Iu = 63 A
Can be used for individual and group protection.
For group protection and in combination with
PKZM4, order additional BK25/3 incoming terminal
if required.
Mounting next to or behind the motor-protective
circuit-breaker.
PKZM4: 16 - 63 A: 100 kA/400 V
PKZM4: 16 - 63 A: 10 kA/690 V
Can be fitted to the right side of motor-protective
circuit-breakers
Can be combined with:
Standard auxiliary contacts
NHI11-PKZ0
NHI12-PKZ0
NHI21-PKZ0
NHI-E-…
Separate indication of:
a) General trip indication (overload)
b) Short-circuit trip
Local short-circuit indication by red indicator,
manually resettable.
Accessories Page
1 Motor-protective circuit-breakers ￫7/4
3 Standard auxiliary contacts ￫7/10
1
3
3
1
Accessories Page
1 Motor-protective circuit-breakers ￫7/4
Further actuating voltages ￫7/29
1
1
7/13
