4/8 Cam switches, switch-disconnectors
2010 CA08103002Z-EN
www.eaton.comDescription
Cam switches can be used for many switching and
control applications. For example as ON-OFF
switches, main switches, main/control switches,
instrument switches.
The switches consist of a hand actuator, the switch
unit and the mounting accessories.
The contact chamber (contact unit = BE) contains
1 or 2 contacts.
Our "T Cam Switches" catalog has over 800 popular
standard contact sequences (please request under
K115D/F/GB, article no. 077643).
The following pages feature a selection of our
standard contact sequences.
T cam switches and P switch-disconnectors are
manufactured without PCB, CFC, asbestos and
silicon.The contacts are cadmium free.
The CI-K... insulated enclosures are silicon and halogen
free.
Cam switches T0 and T3
Key to part numbers
T . . . . . . . . . . . . - . . . . . . . . . . . . . . . . . . . . . . . . . . . . - . . . . . . . . . . . . . . . . . . . . . . . / . . . . . . . . . . . . . . . . . . . .
Switch size
T0 or T3
Number of contact chambers
= contact units
Contact sequence
number
Mounting form
￫Page 4/2

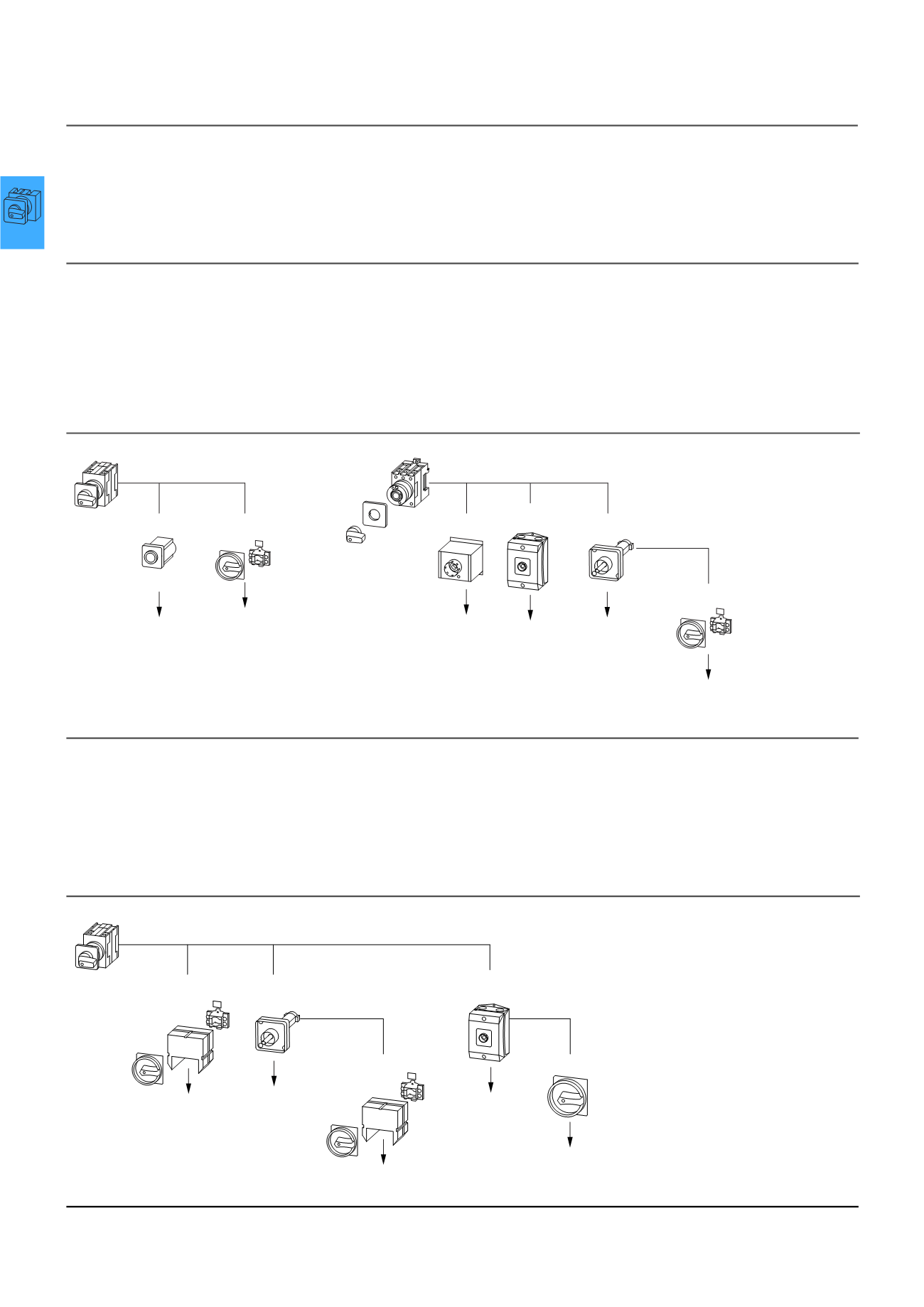

Using the modular system to convert the mounting form
Cam switch TB5
Key to part numbers
T . . . . . . . . . . . . - . . . . . . . . . . . . . . . . . . . . . . . . . . . . - . . . . . . . . . . . . . . . . . . . . . . . / . . . . . . . . . . . . . . . . . . . .
Switch size
T5(B)
Number of contact chambers
= contact units
Contact sequence
number
Mounting form
￫Page 4/2
Using the modular system to convert the mounting form T5(B)
Note
1)
Including shaft
CI-K1-T0
CI-K2-T3
T0-.../I1
T3-.../I2
T0.../IVS
1)
T0(3).../E
T0(3).../EZ
EZ-T0
V/EA/SVB-T0
T0(3).../XZ IVS-T0
DE-T0
T0(3).../Z
1)
V/EA/SVB-T0
T0-1-(T3-1-).../V/SVB
.
.
.
T0-4-(T3-6-).../V/SVB
T0-1-(T3-1-).../EA/SVB
.
.
.
T0-4-(T3-6-).../EA/SVB
CI-K4-T5B
CI-K5-T5
DE-P3
V/EA/SVB-T5
T5(B)...E
T5(B).../EA/SVB
T5(B).../Z
V/EA/SVB-T5
T5(B).../V/SVB
T5B-.../I4
T5-.../I5
SVB-P3
T5B-.../I4/SVB
T5-.../I5/SVB
T0, T3, T5, T5B
