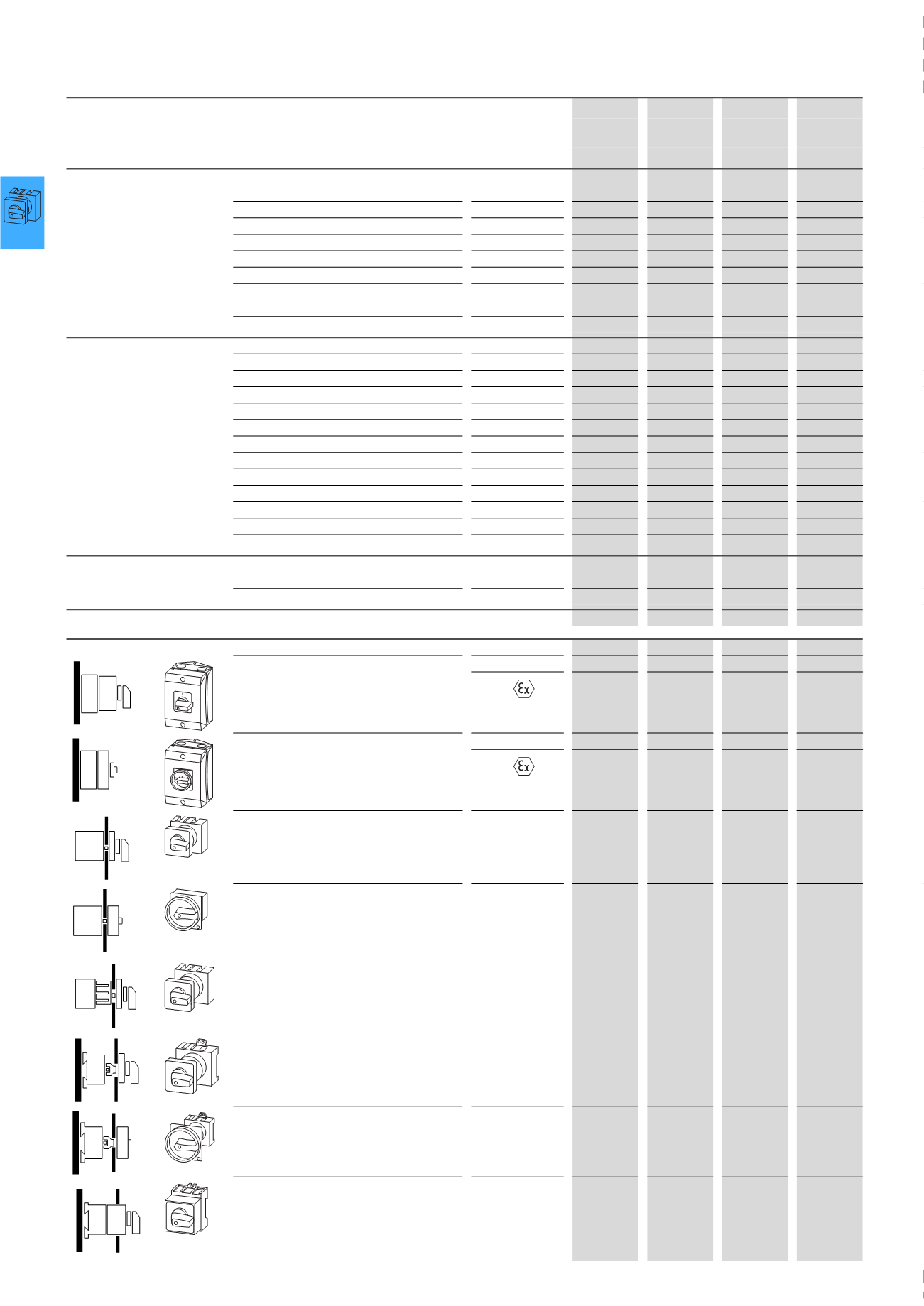

4/2 (Mini) cam switches, switch-disconnector
2010 CA08103002Z-EN
Switch, basic type Part no. TM T0 T3 T5B
Max. motor rating
AC-23 A, 400/415 V, 50/60 Hz 3.0 kW 6.5 kW 13 kW 22 kW
Max. rated operational current Iu ≦ 10 A 20 A 32 A 63 A
Switch-disconnectors
Mainswitches,maintenance/manualoverrideswitches – ￫ 4/10 ￫ 4/10 ￫ 4/10
On-Off switches ￫ 4/70 ￫ 4/22 ￫ 4/22 ￫ 4/22
Safety switches with warning label – – – ￫ 4/30
Changeover switches – ￫ 4/32 ￫ 4/32 ￫ 4/32
Reversing switch with 0 position – ￫ 4/38 ￫ 4/38 ￫ 4/38
Star-delta switches – ￫ 4/38 ￫ 4/38 ￫ 4/38
Reversing star-delta switches – ￫ 4/38 ￫ 4/38 ￫ 4/38
Multi-speed switch – ￫ 4/40 ￫ 4/40 ￫ 4/40
Reversing multi-speed switches – ￫ 4/40 ￫ 4/40 ￫ 4/40
Control switch
Step switch ￫ 4/72 ￫ 4/42 –
On-Off switches – ￫ 4/46 – –
Changeover switches ￫ 4/71 ￫ 4/48 – –
Manual/Auto switches ￫ 4/72 ￫ 4/48 – –
Push button switch – ￫ 4/50 – –
Universal control switches – ￫ 4/52 – –
Coding switches ￫ 4/76 ￫ 4/52 – –
Series switches – ￫ 4/52 – –
Instrument selector switches – ￫ 4/54 – –
Group switches ￫ 4/75 – – –
ON OFF button ￫ 4/75 – – –
Reversing switch ￫ 4/76 – – –
Switches with interlocks
Panicswitcheswithoutemergencyswitchingoff function – ￫ 4/56 – –
On-Offswitches without Emergency-Stop function – ￫ 4/56 – –
Non-standard switches ￫ 4/83 ￫ 4/79 ￫ 4/80 ￫ 4/81
Mounting form
Surface mounting …/I… – ✓ ✓ ✓
– ✓ ✓ ✓
Surface mounting main switches …/I…/SVB… – ✓ ✓ ✓
– ✓ ✓ ✓
Mounting .../E… ✓ ✓ ✓ ✓
Flush mounting main switch …/E(A)/SVB… ✓ ✓ ✓ ✓
Center mounting …/EZ… ✓ ✓ ✓ –
Rear mounting …/Z… – ✓ ✓ ✓
Rear mounting main switches …/V/SVB… – ✓ ✓ ✓
Service distribution board mounting …/IVS… ✓ ✓ – –
ATEX
ATEX
T, P, TM
