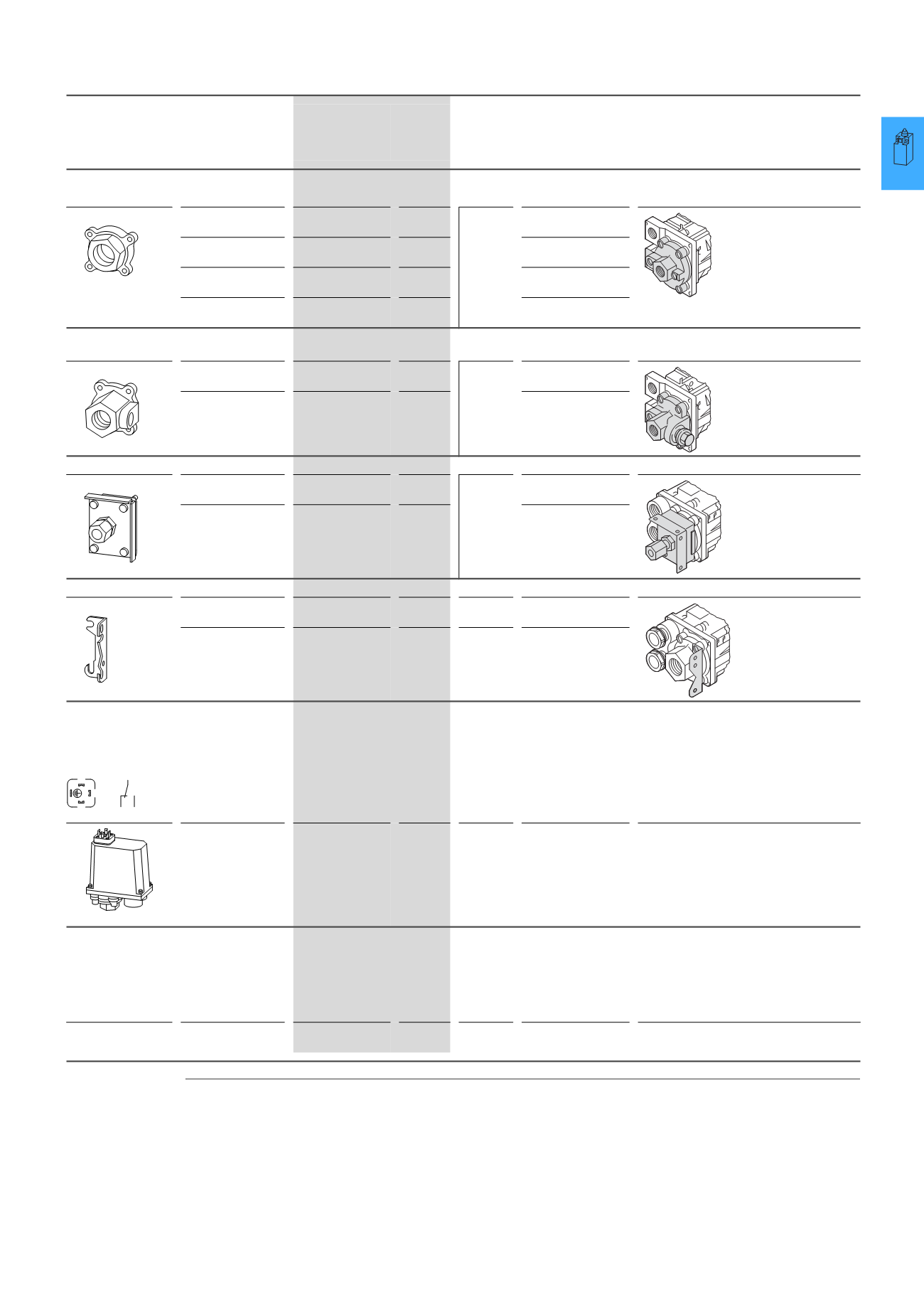

Pressure Switches
Accessories
2010 CA08103002Z-EN
3/33
Accessories
For use with Part no.
Article no.
Price
See price
list
Std. pack Notes
Pressure pipe
flange
MCS with R ½" +R1/2"-MCS
001627
1 off Order no. when
ordering basic unit
MCS with R ½" R1/2"-MCS
031617
Order no. when
ordering separately
MCSN(-V) with R ¼" +R1/4"-MCSN
001628
Order no. when
ordering basic unit
MCSN(-V) with R ¼" R1/4"-MCSN
033990
Order no. when
ordering separately
Pressure pipe flange with
pressure gauge connection
MCS, MCSN(-V) +M-MCS
001625
1 off Order no. when
ordering basic unit
Pressure gauge connection
R ¼”,
Pressure pipe flange always
R ½” also with MCS MCS, MCSN(-V) M-MCS
071913
Order no. when
ordering separately
Compression fitting
MCS, MCSN +E8-MCS
001624
1 off Order no. when
ordering basic unit
External diameter of pipe
coupling 8 mm
Wall fixing bracket
integrated can be rotated in
180° stages
MCS, MCSN E8-MCS
040949
Order no. when
ordering separately
Wall fixing bracket
MCS, MCSN +W-MCS
001631
1 off Order no. when
ordering basic unit
Wall fixing bracket can
be rotated to right or left
by 90° stages
MCS, MCSN W-MCS
050665
10 off Order no. when
ordering separately
External unit plug, IP65
3 poles plus earth for socket adapters to
DIN 43650-A/ISO 4400
Plug configuration:
MCS
MCS…-G
Not for use with
MCS…SOND910-G
+S3-MCS
201854
1 off Order no. when
ordering basic unit
–
Pressure setting
Standard setting of the cut-in and cut-out
pressures
When ordering, the type reference must
include the following details:
1st wildcard ≙ cut-in pressure in bar
2nd wildcard ≙ cut-out pressure in bar
MCS, MCSN +PMIN(*)/PMAX(*)
203948
1 off Order no. when
ordering basic unit
Notes Ordering example
• Desired part no.: MCS4
• Required cut-in pressure in bar: 2.2
• Required cut-out pressure in bar: 3.3
A maximum or one decimal place after the comma is possible with the pressure definition.
The correct part no. is:
MCS4 + PMIN(2.2)/PMAX(3,3)
