3/36 Sensors
E57 Global Series
2010 CA08103002Z-EN
Inductive Sensors
InductiveSensorsE57GlobalSeriesDescription

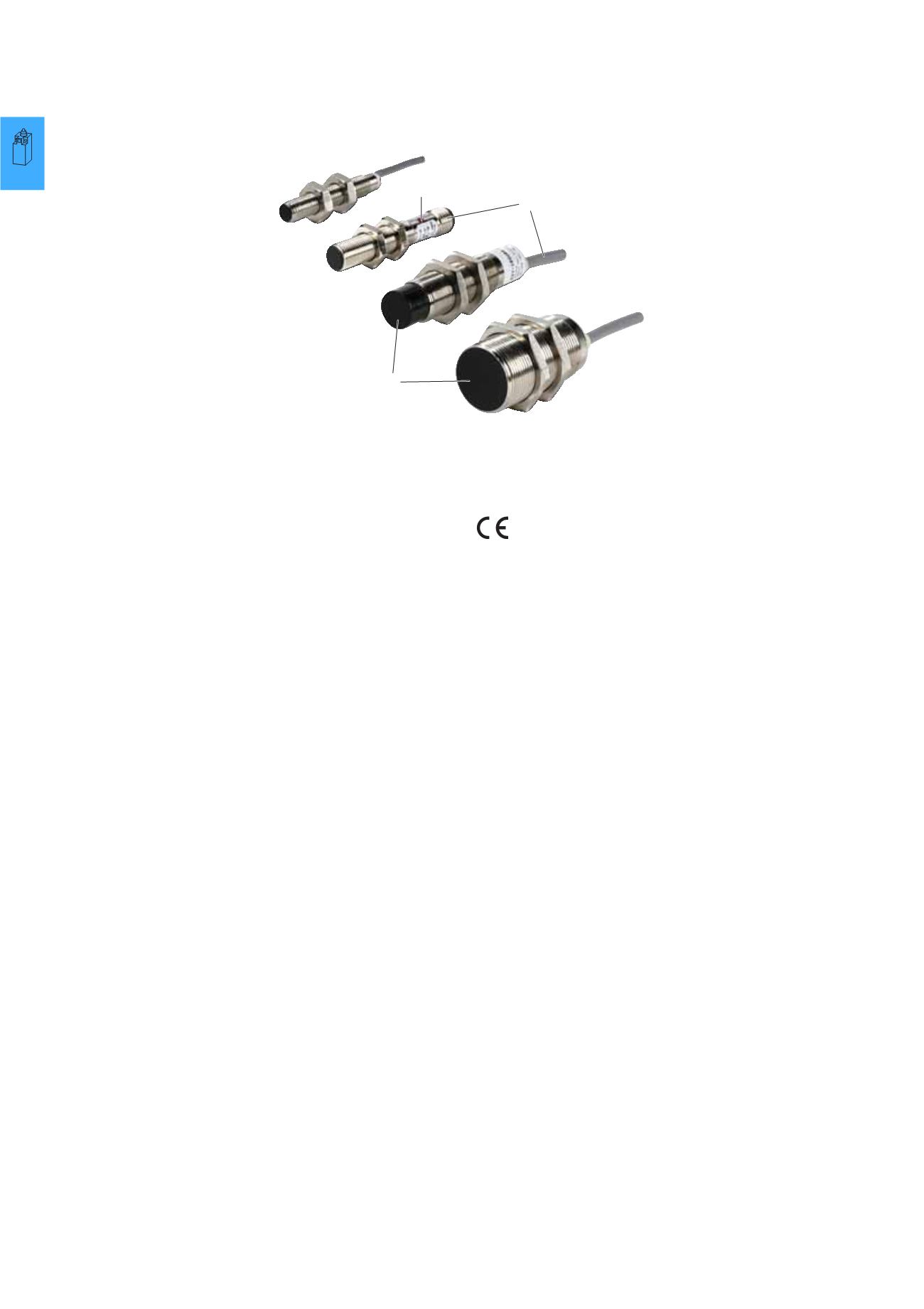

① Outputs with function display on all models.
② All models with M12 plug connector or cable (2 m).
③ Versions for flush or non-flush mounting available.
a
b
c
8 mm
12 mm
18 mm
30 mm
Short description
Eaton’s proximity sensors of the Global
series have been developed specially
for OEM series production. The
sensors feature only the functions
required for reliable operation. This
means that you do not pay for addi-
tional, unnecessary functions but get
the performance and features you
expect from a sensor. Our DC versions
feature a short-circuit protective unit
and a rating of up to 2000 measuring
cycles per second. The outputs of all
models are equipped with a function
display. The Global series includes
models with various diameters from
8 to 30 mm, making it truly versatile in
installation. Versions with various
ranges are also available. The Global
proximity sensors are DC or AC units
with a 2- or 3-wire, NPN or PNP
configuration. Versions for hard-
wiring or with M12 plug connector are
available. The DC versions have a
rated load current of 100 mA, the AC
versions 200 mA.
Product features
• The Global Proximity Line features
solid performance and a basic
feature set for reliable, cost-effec-
tive sensing.
• Available in a variety of sizes to fit
in all of your applications: 8 mm,
12 mm, 18 mm und 30 mm diameters.
• The input voltage of the DC versions
is 10 – 30 V DC with a 2- and 3-wire
configuration (PNP and NPN).
• The input voltage of the AC versions
is 2-AC 20...250 V.
• The operating frequency of the DC
versions is 2 kHz.
• Versions for flush or non-flush
installation available.
• Connection through cable (2 meters)
or M12 plug connector.
• The DC versions feature short-
circuit protection.
Approvals
cCSAus
