SL signal towers
Signal towers
2/103
Continuous light 1
Easy mounting with bayonet fitting
Modules can be arranged in any
order
Protection type IP54
Up to five levels can be actuated
independently
Operating mode: 100 % DF
Without light elements
￫Page 2/104
Flashing light 2
Easy mounting with bayonet fitting
Modules can be arranged in any
order
Protection type IP54
Up to five levels can be actuated
independently
Operating mode: 100 % DF
With filament bulb
Flashing frequency: approx. 1 Hz
￫Page 2/105
Strobe light 3
Easy mounting with bayonet fitting
Modules can be arranged in any
order
Protection type IP54
Up to five levels can be actuated
independently
Operating mode: 100 % DF
Flash power 1 Ws
Flashing frequency: approx. 1 Hz
￫Page 2/106
Caps 4
Color: red, yellow, green, white, blue
Fresnel grooves ensure even light
distribution
Acoustic device 5
Easy mounting with bayonet fitting
Modules can be arranged in any
order
Protection type IP20
Operating mode: 100 % DF
Continuous tone or pulsed tone
Sound pressure: about 90 dB at 60 cm
Frequency: 2750 Hz
￫Page 2/105
Base module 6
Easy mounting with bayonet fitting
Protection type IP54
For bottom mounting or in tubular
column
Terminal connection capacity
6 × 1.5 mm2
With top cover
￫Page 2/104
Accessories 7
Spacer available in four lengths
Filament bulbs, LEDs
90° wall mounting with commercial
four-hole fixing
￫Page 2/107
Gaskets 8
For increasing the degree of
protection type to IP65
￫Page 2/107

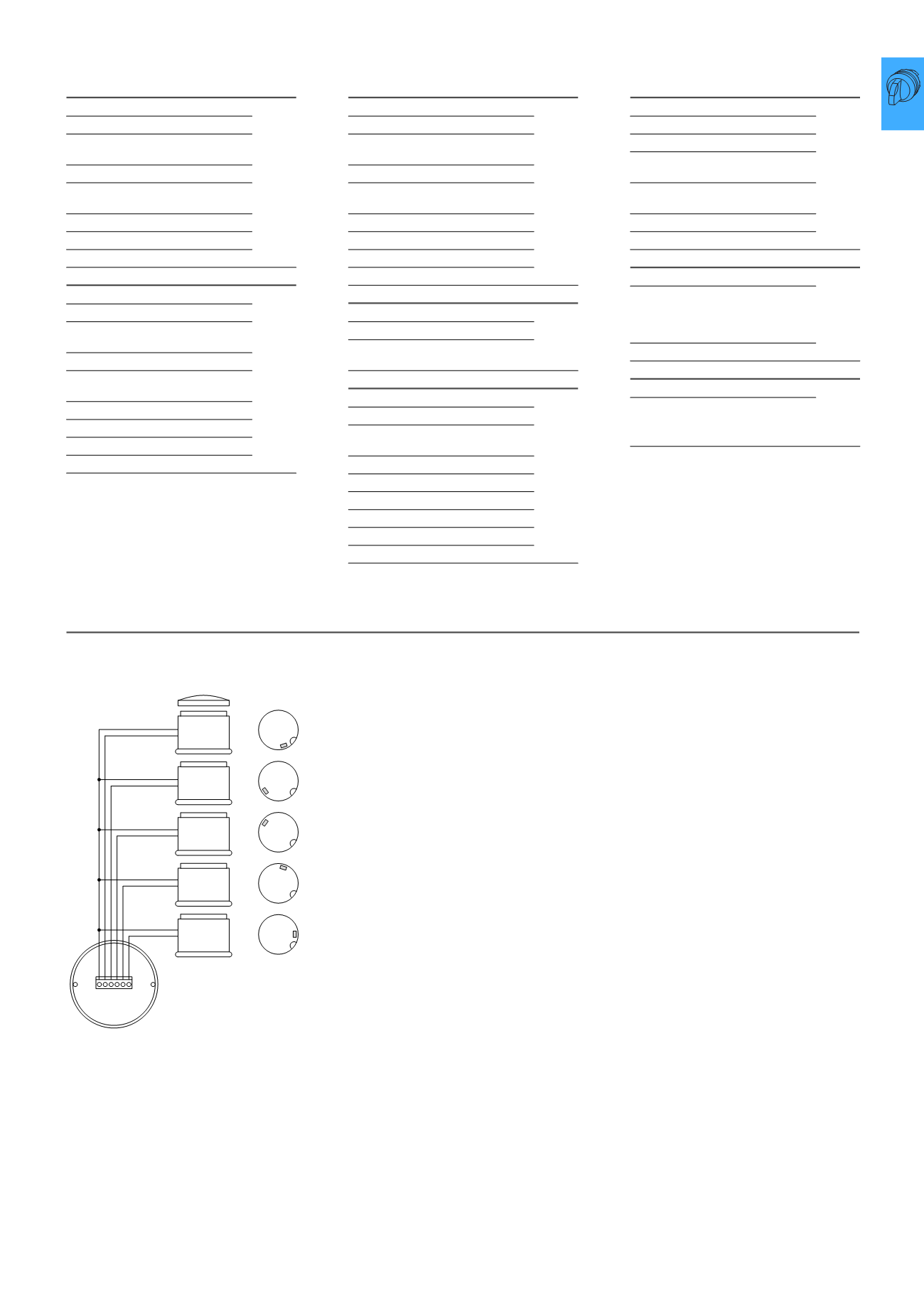

Product feature of SL
• Individual programming by jumper: max. 5 modules and base module
• Customized combinations￫Page 2/104
0 5 4 3 2 1
5
4
3
2
1 1 q
2 q
3 q
4 q
5 q
