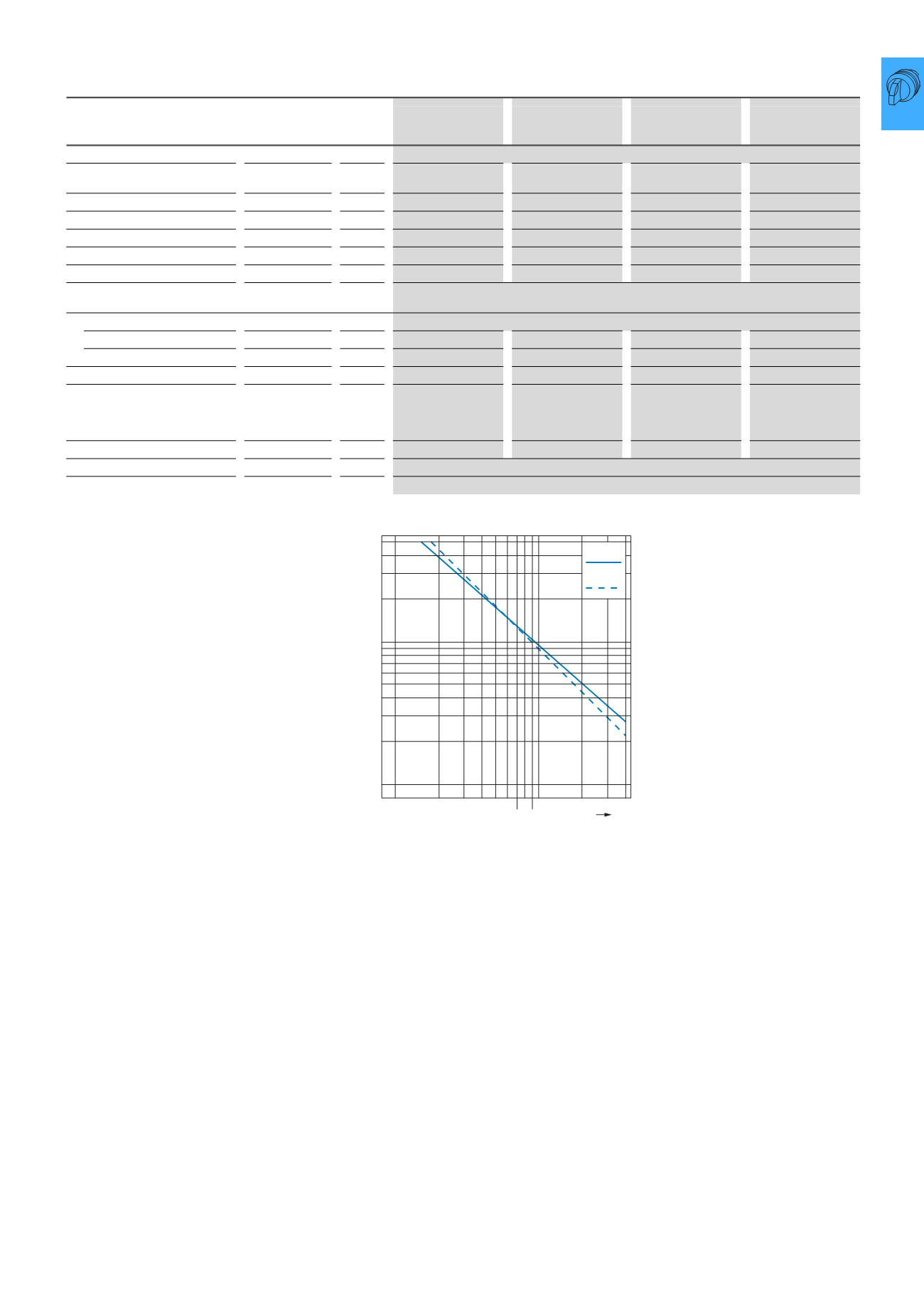

RMQ16 pilot devices
RMQ16
2010 CA08103002Z-EN
2/99
Pushbutton actuators
(maintained)
Selector switch
actuators
Key-operatedpushbutton
actuators
Emergencyswitching-off
pushbutton actuatorss
General
Standards IEC/EN 60947,
VDE 0660
IEC/EN 60947,
VDE 0660
IEC/EN 60947,
VDE 0660
IEC/EN 60947,
VDE 0660
Lifespan, mechanical Operations x 106 > 3 > 3 > 3 > 0.1
Operating frequency Operations/h ≦ 1800 ≦ 1800 ≦ 1800 ≦ 600
Actuating force N 4 – – 25
Operating torque Nm – 0.2 0.4 –
Protection type, IEC/EN 60529 IP65 IP65 IP65 IP65
Climatic proofing Damp heat, constant as per IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Ambient temperature
Open °C -25 - +60 -25 - +60 -25 - +60 -25 - +60
Encapsulated °C -25 - +40 -25 - +40 -25 - +40 -25 - +40
Mounting position Any Any Any Any
Mechanical shock resistance to
IEC 60068-2-27 Shock duration
11 ms, half-sinusoidal
g > 40 > 40 > 40 > 40
Terminal capacity mm 2 0.5 - 1.0 0.5 - 1.0 0.5 - 1.0 0.5 - 1.0
Blade terminal 2.8 × 0.8 mm to DIN 46244
Flat pin bushing 2.8 × 0.8 mm to DIN 46247 and IEC 60760
Durability, electrical AC-15 to
IEC/EN 60947-5-1 at 230 V
Ie = rated operational current
4 3 2 1.0
0.9
0.8
0.7
0.6 0.5 0.4 0.3 0.2 0.1
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
2
3
4
5
E10
E01
x 10 6
Ie [A]
