TECHNI CAL DATA

MCCB

68

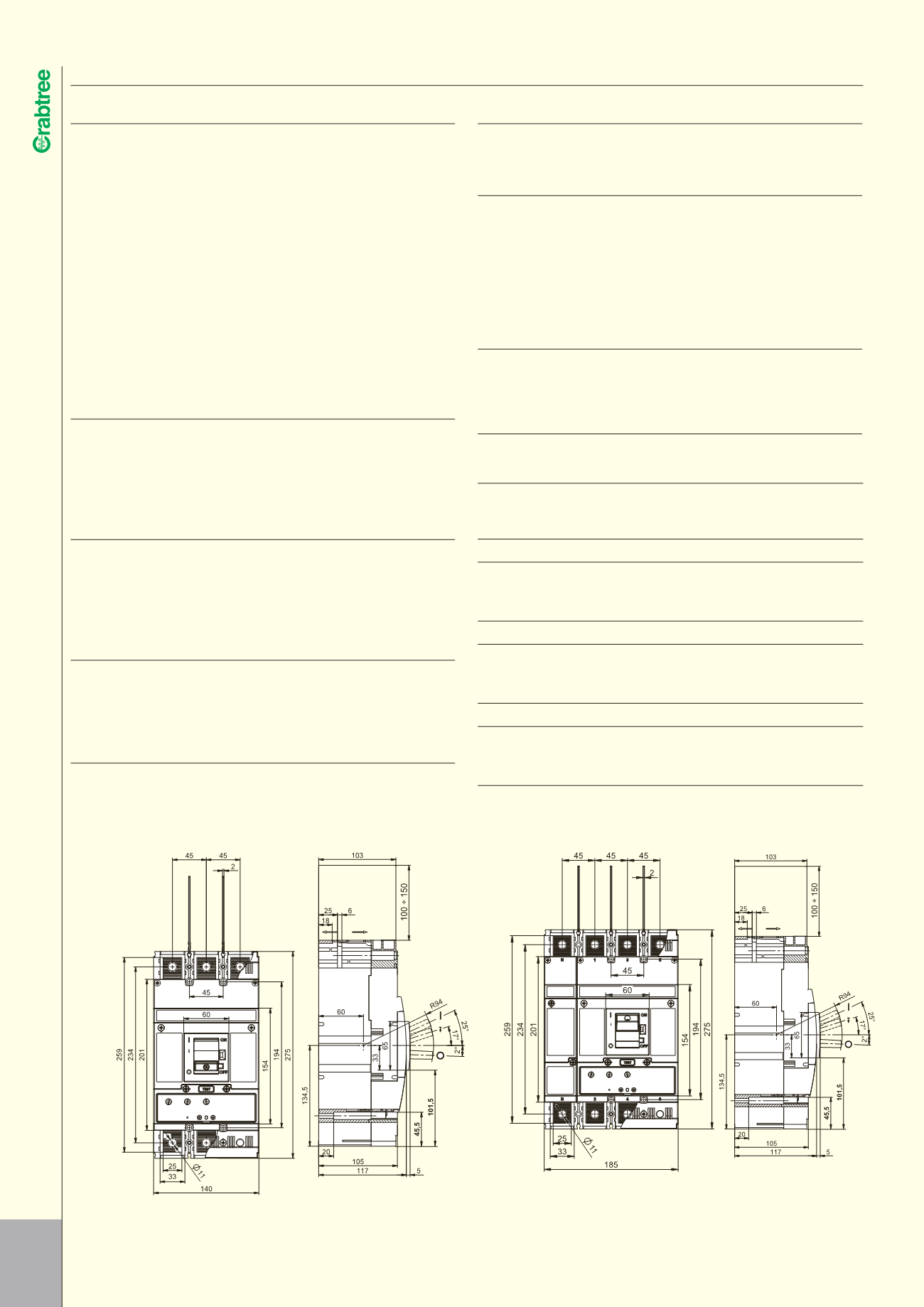

7T3 FRAME MCCB s TECHNICAL SPECIFICATION

l

7T3 FRAME SPECIFICATION

I

• Specification IEC 60947-2 & IEC 60947-3

• Current Range 100 – 630Amps

• Ue Rated Operation Voltage 690V AC

• Ui Rated Insulation Voltage 690V AC

• Rated Frequency 50/60Hz

• Release Electronic

• Adjustment 0.4 – 1.0 x Trip Unit

Rated Current

• Instantaneous Adjustment Adjustable – see below

• Icu (415V) Short Circuit Breaking Capacity 7T3S 36kA 7T3H 65kA

• Working Environment Both Dry and Tropical

Climates

• Mechanical Endurance 20,000 Cycles

7T3 FRAME FEATURES

I

The 7T3 circuit breaker consists of switching unit and either a range of

different rated electronic trip units, or a disconnector module. The modular

design provides the maximum flexibility as the user can decide not only the

rating but also the function, disconnector or protective device. With a wide

setting bandwidth electronic trip units offer unparalleled functionality.

AVAILABLE OPTIONS

I

• ST UVR

• Aux SW

• Rotary Handle (available on request)

• Padlocking

(See Product Section for selection)

SHORT CIRCUIT BREAKING CAPACITY

I

Ue 7T3S Icu 7T3H Icu

230 V 60 kA 100 kA

415 V 36 kA 65 kA

Ics

= 50% Icu

TRIP UNIT SETTINGS

I

Over current

I

R = 0.4 - 1.0 x

I

n

Instantaneous 4 or 12.5 x

I

R

I

n - Nominal Trip Unit Rating

MAIN CONNECTIONS

I

The switching unit has a 32mm main contact which will accept up to M10

cable lugs, maximum width 30mm.

AUXILIARY EQUIPMENT OPTIONS

I

a) UVR

b) Shunt Trip

c) Auxiliary Switches

Shunt Trip Voltage Range

70%

Under Voltage Release Threshold

35%

Input Power of Auxiliary Releases < 3VA AC, < 3W DC

CURRENT CHARACTERISTICS

I

Maximum earth fault loop impendance (Zs) for circuit breakers with Uo of

230V, incorporating the 0.95 C

min

factor, 17th Edition IET Wiring Regulations

(BS 7671:2008), Amendment 3 effective from January 1st 2015

IR & II SET AT MINIMUM

CURRENT VALUE (A)

OHMIC VALUE

0.4

5

0.4

5

AMPS SECONDS SECONDS VOLTAGE SECONDS SECONDS

250

375A 375A

230V 0.583

Ω

0.583

Ω

400

600A 600A

230V 0.364

Ω

0.364

Ω

630

945A 945A

230V 0.231

Ω

0.231

Ω

IR SET AT MINIMUM & II SET AT MAXIMUM

250

1250A 575A

230V 0.175

Ω

0.380

Ω

400

2000A 920A

230V 0.109

Ω

0.238

Ω

630

3150A 1449A 230V 0.069

Ω

0.151

Ω

IR & II SET AT MAXIMUM

250

3125A 1500A 230V 0.070

Ω

0.146

Ω

400

5000A 2400A 230V 0.044

Ω

0.091

Ω

630

7875A 3780A 230V 0.028

Ω

0.058

Ω

IR SET AT MAXIMUM & II SET AT MINIMUM

250

1000A 1000A 230V 0.219

Ω

0.219

Ω

400

1600A 1600A 230V 0.137

Ω

0.137

Ω

630

2520A 2520A 230V 0.087

Ω

0.087

Ω

IEC 60947-2 copper conductors for test currents

350 – 400A 1 x 240mm

2

600 – 630A 2 x 185mm

2

400 – 500A 2 x 150mm

2

630 – 800A 2 x 240mm

2
