TECHNI CAL DATA
7PBGG MCCB CHARACTER I ST I CS
65

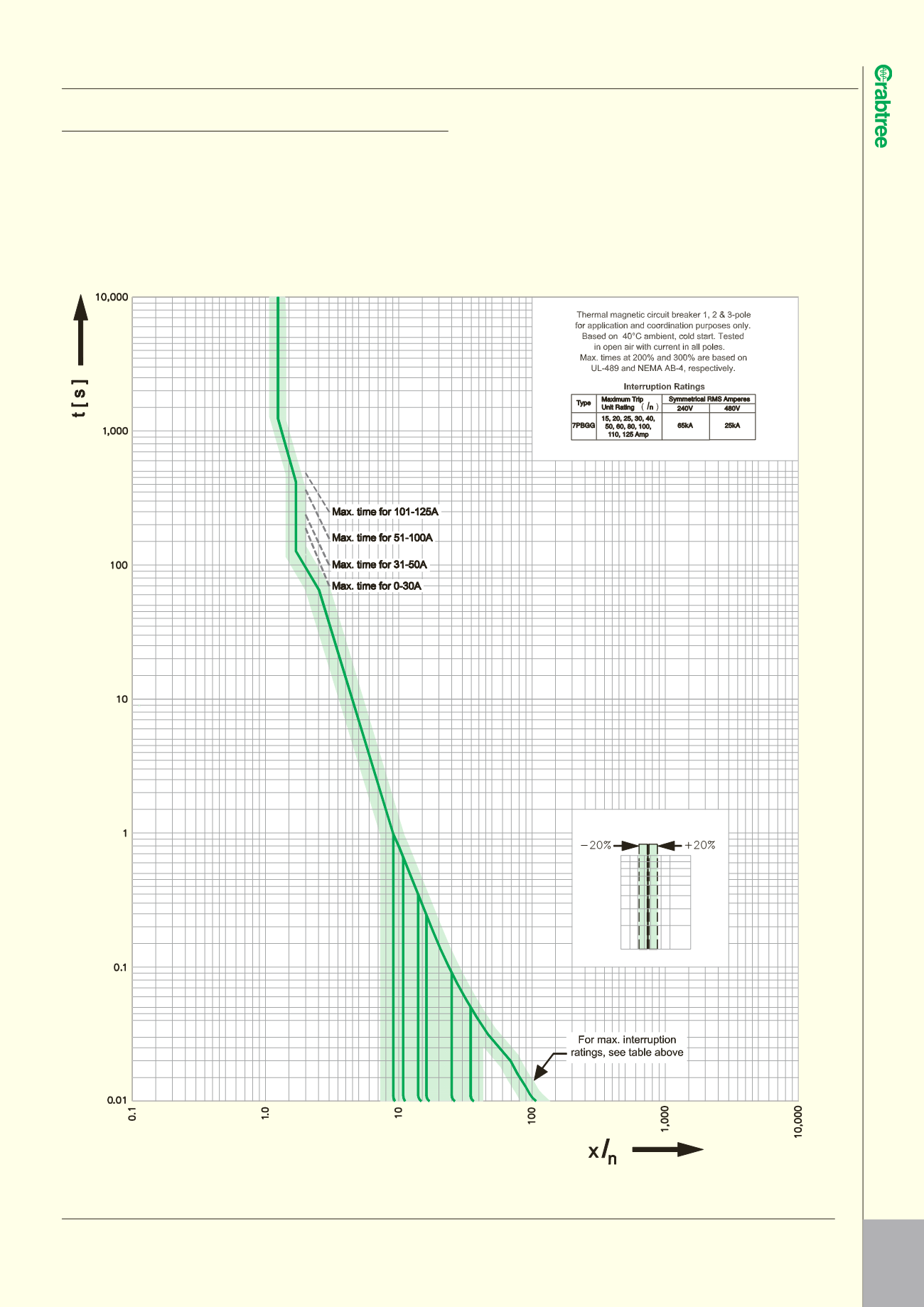

7PBGG TIME/CURRENT CHARACTERISTICS
INSTANTANEOUS TRIP VALUES
I
125A = 1125A
100A = 1050A
80A = 840A
60A = 840A
50A = 800A
40A = 1000A
30A = 1050A
15A = 1200A
125A
80-100A
60-70A
50A
45A
30-35A
15A
7PBGG
15, 20, 25, 30, 40,
50, 60, 80, 100,
110, 125Amp
65kA
25kA
240V
Symmetrical RMSAmperes
480V
Type Maximum Trip
Unit Rating n
Instantaneous Tolerance
(Rated Current)
