TECHNI CAL DATA
FUSE SWI TCH
FUSE COMPARISON DATA*
Current Rating BS 88 Reference Lawson GEC Bussman
20/32A A1 NIT NIT NITD
63A A3 TIS, TIA GTIA TIS, TIA BAO, AAO
100A A4 (Dia 31 max) TCP - CEO
125A A4 (Dia 31 max) TFP TFP DEO, CEO
160/200A A4 (Dia 31 max) TFP TFP DEO, CEO
315A B3, B2, B1 TFK, TF TF ED, DD, CD
400A B3, B2, B1 TMF, TFK, TF, TC TMF, TFK, TF, TC ED, DD, CD
630A C2, C1 TTM, TM TTM, TM FF, EF
800A C3, C2, C1 TLM, TTM, TM TLM, TTM, TM GF, FF, EF
TECHNICAL DATA
20–32A 63A 100A 125A 160A 200A 315A 400A 630A 800A
Mechanical Endurance
20,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 8,000 8,000
Ratings
A kW A kW A kW A kW A kW A kW A kW A kW A kW A kW
415V le/pe
32 15 63 30 100 51 125 75 160 90 200 80 315 160 400 220 630 355 800 450

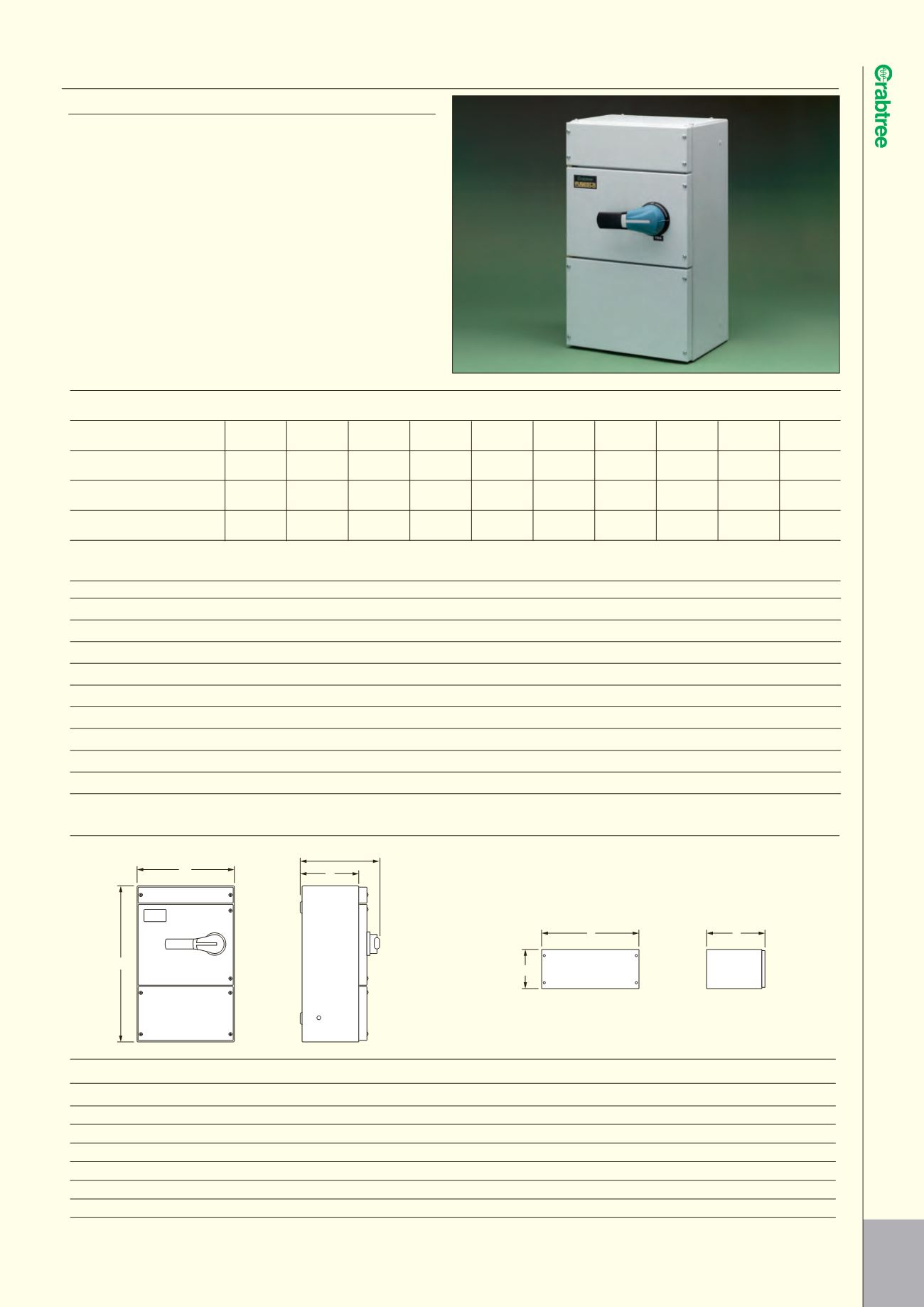

FUSESTAR HOUSED FUSE SWITCH
SPECIFICATION
l
l
BS EN60947-3, IEC 60947-3
l
Range of ratings 20A -800A in 5 frame sizes
l
Pole configurations SP & N, TP & N, and 4 Pole
l
Voltage rating 415V ac
l
Frequency rating 50/60 Hz
l
Fuse type BS88
l
Fused Short Circuit, 80kA RMS
PRODUCT FEATURES
- Switching speed totally operator independent
- Handle padlockable on or off
HOUSED UNITS
- Modular enclosure design (52.5mm) with inbuilt cable spreader box
- Reversible door which opens 180˚
- IP4X
W
D
D
inc handle
H
D
W
Spreader Box
H
DIMENSIONS (mm)
H W D D inc. handle H W D
20-32A 225 210 136 200 SPREADER BOX 125 210 130
63A 425 263 188 263 SPREADER BOX 125 263 185
100A 425 263 188 263 SPREADER BOX 125 263 185
125-200A 530 315 241 305 SPREADER BOX 125 315 235
315-400A 800 420 241 320 SPREADER BOX 230 420 235
630-800A 900 640 293 400 SPREADER BOX 230 640 300
FUSESTAR DIMENSION DETAILS
* Fuse selections are indicative and maybe subject to change, please contact manufacturer for latest details.
