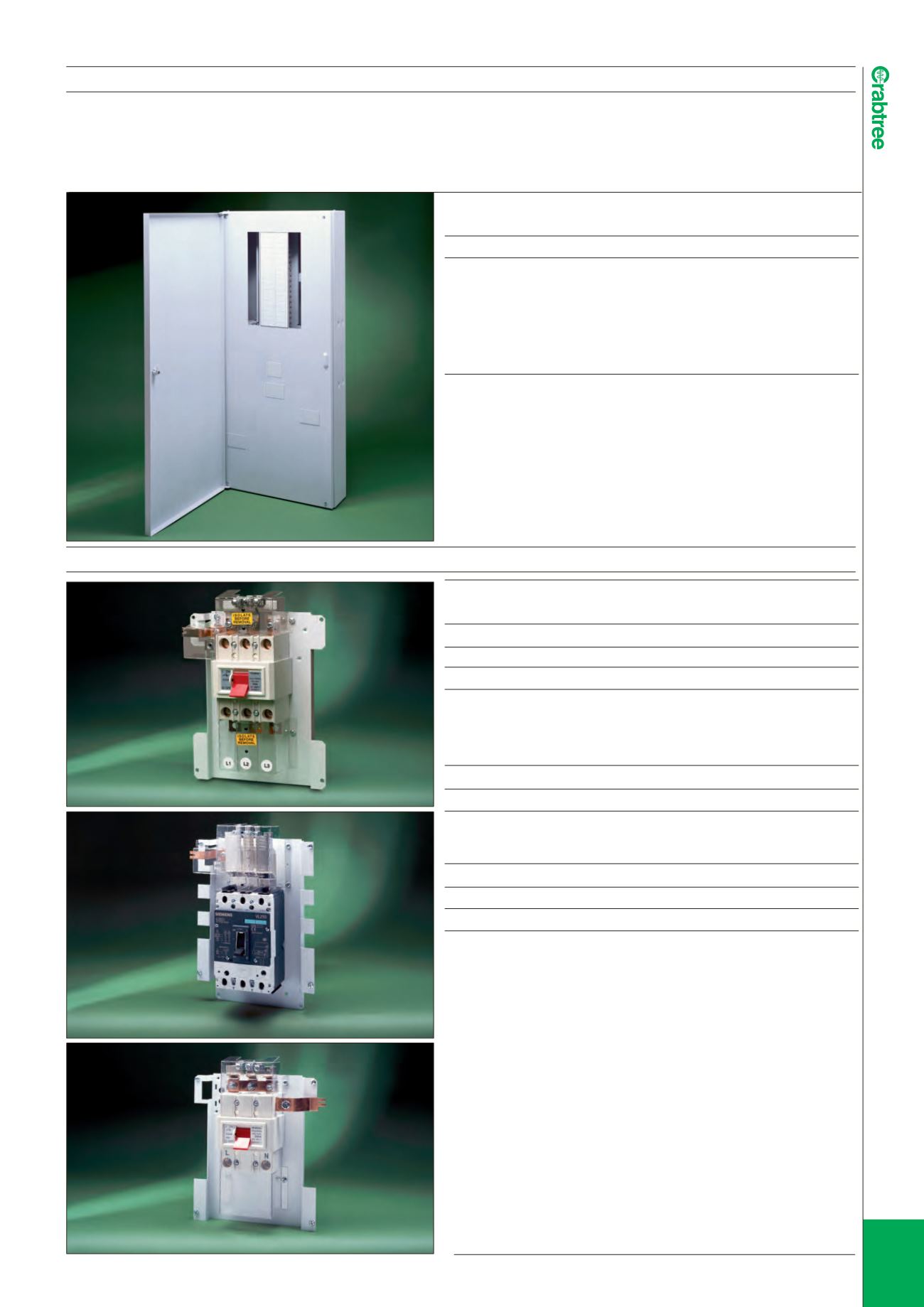

POLESTAR COMPACT
I P3X 250A DI STR I BUT ION BOARDS & INCOMERS
17
250A IP3X TYPE B DISTRIBUTION BOARDS AND THEIR INCOMING OPTIONS
l
25kA rated TPN MCB Distribution Boards
l
Incoming options -
order separately
:
l
Integral metering available
l
Busbars rated at 250A
l
IP3X (Door Closed)
l
Full compliment of Neutral & Earth terminals
Incoming maximum 120mm
2
Outgoing maximum 25mm
2
l
Allows the fixture of dual Earth bars (IP3X)
l
Clean Earth kit available (IP3X)
l
All IP3X boards are supplied as standard with
hinged outer door, catch (lock is optional extra)
and removable top/bottom gland plates
l
Neutral busbar supports incorporate an integral
MCB end stop
l
BS EN 61439-3
18PSC212MR
250A TYPE B DISTRIBUTION BOARDS
‘METER READY’ SURFACE
l
Description
List No.
IP3X 250A 4 way TPN Distribution Board
18PSC204MR
IP3X 250A 6 way TPN Distribution Board
18PSC206MR
IP3X 250A 8 way TPN Distribution Board
18PSC208MR
IP3X 250A 12 way TPN Distribution Board
18PSC212MR
IP3X 250A 16 way TPN Distribution Board
18PSC216MR
IP3X 250A 20 way TPN Distribution Board
18PSC220MR
IP3X 250A 24 way TPN Distribution Board
18PSC224MR
SWITCH DISCONNECTORS AND DIRECT
CONNECTION
l
Switch Disconnector
List No
250A 3P*
250/SDB
200A 2P
200/SDBDP
l
150mm
2
Terminal capacity
l
BS EN 60947-3, IEC 60947-3
* Derated to 225A when used as an incomer to MCB Distribution Boards
Direct Connection
250A 3P
250/DCB
l
120mm
2
Terminal capacity
l
All Incomers are supplied complete with mounting kit, links & fixing screws
MOULDED CASE CIRCUIT BREAKERS
l
200A 3P
2003MB
200A 4P
2004MB
l
185mm
2
terminal capacity
l
All Incomers are supplied complete with mounting kit, links & fixing screws
l
IEC 60947-2, EN 60947-2
200/SDBDP
250/SDB
2003MB
POLESTAR COMPACT 200A INCOMER OPTIONS
l
