CARLO GAVAZZI
kWh
M21

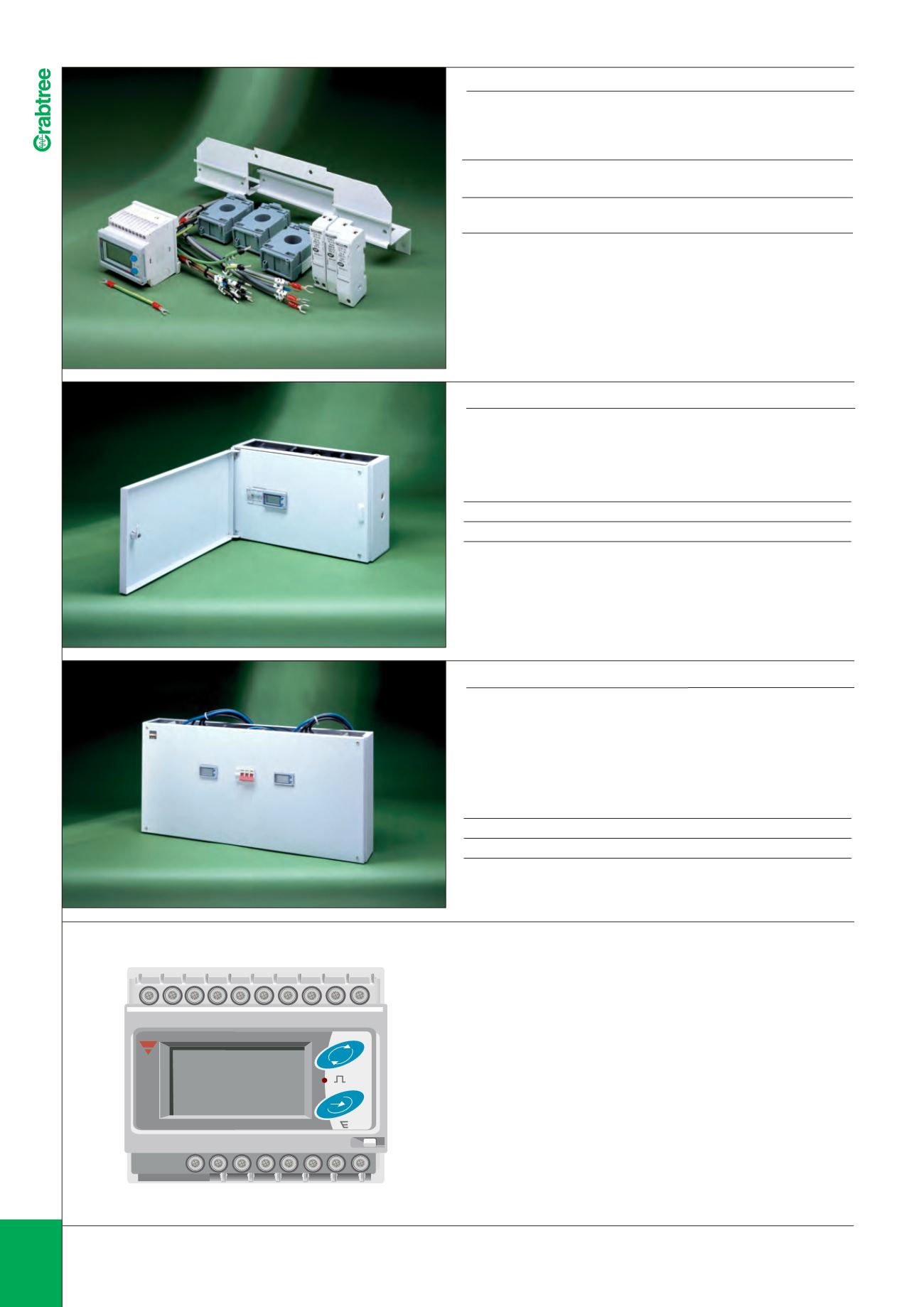

125A & 250A INTEGRAL METER KITS
I
Integral meter kit suitable for mounting within 125A & 250A type B
Meter Ready
(MR) Distribution Boards* Includes a Digital energy meter,
three current transformers, fuses, wiring looms and mounting base plate.
Description LIST No
125A Integral Meter Kit
LS125MPKIT
125A Integral Meter Kit (MID)
LS125MIDMPKIT
250A Integral Meter Kit
LS250MPKIT
250A Integral Meter Kit (MID)
LS250MIDMPKIT
*Integral meter kits are designed for use in conjunction with modular
three pole incoming options only. For other incoming options select the
‘add-on‘ assembly seen below.
18ML125
18ML125LP
125A SINGLE METER PACKS
I
245mm high ‘add on’ assemblies suitable for mounting directly beneath
any surface 125A type B Distribution Board. Includes a digital energy
meter, three current transformers and all associated fuses and wiring.
Enclosures have a slotted front plate and hinged door with catch
offering a lockable option.
Description LIST No
125A ‘Add-on Meter Pack
18ML125
125A Vertical Lighting and Power Kit
18ML125VLPK
Suitable for use with 2 x 125A type B Meter Ready (MR) Distribution
Boards, one mounted above the other. The kit consists of 3 phase and
neutral connection cables, cable clamps and shrouding. 125A integral
meter kits to be ordered separately.
Please note the maximum 3 phase load on the upper board should not
exceed 100A.
125A & 250A DUAL METER PACKS
I
‘Add on’ assemblies suitable for mounting directly beneath two surface
125A/250A type B Distribution Boards. Includes two digital energy
meters, six current transformers, all associated fuses & wiring and flexible
interconnections to Distribution Boards. Provides single point
isolation while dual meters allow for separate monitoring of
Light
and
small
Power
energy consumption.
Suitable for use with a 3ph 4 wire unbalanced system
Description 125A 250A
Height 410mm 740mm
‘Add-on‘ Dual Meter Pack
18ML125LP 18MH250LP
For use with IP3X Type B Distribution Boards
kWh
Kilowatt hours
kW (
S
)
Real Power (system)
kvarh
Kilovolt amp reactive hours
kvar (
S
)
Reactive Power (system)
PF (
S
)
Power Factor (system)
Hz (
S
)
Frequency (system)
PF L1
Power Factor
PF L2
Power Factor
PF L3
Power Factor
A L1
Current
A L2
Current
A L3
Current
V L1-2
Line Voltage
V L2-3
Line Voltage
V L3-1
Line Voltage
V L1
Phase Voltage
V L2
Phase Voltage
V L3
Phase Voltage
Energy meters within all Loadstar final assemblies display values of:
Non MID meters include MODBUS (RTU) connections and pulsed output
as a standard feature.
MID meters are supplied with a pulsed output as a standard feature.
12
LOADSTAR
MET ER I NG OPT I ONS
