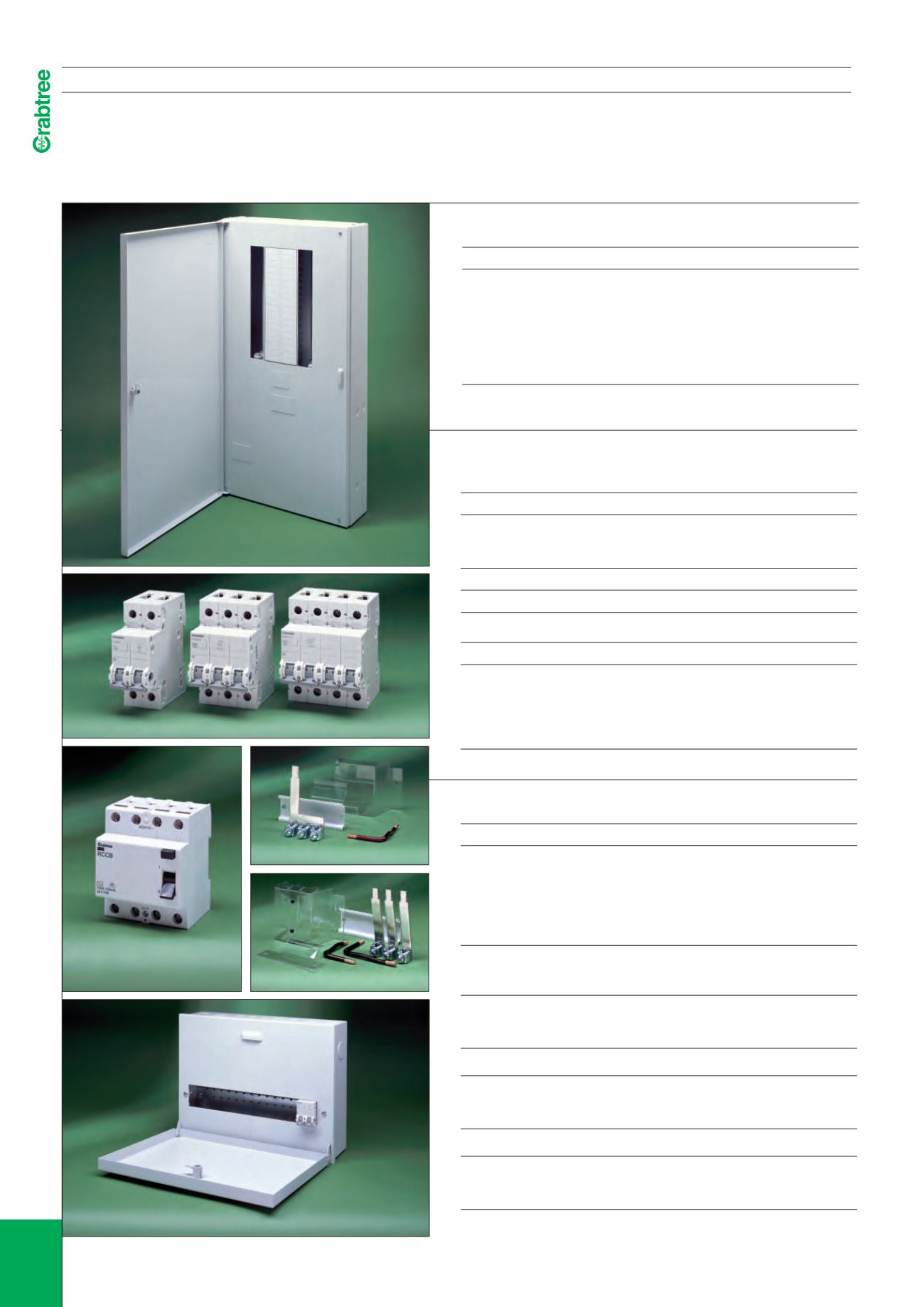

125A TPN DISTRIBUTION BOARDS
‘METER READY’ SURFACE
l
Description
List No.
IP3X 125A 4 way TPN Distribution Board
18PSC04MR
IP3X 125A 6 way TPN Distribution Board
18PSC06MR
IP3X 125A 8 way TPN Distribution Board
18PSC08MR
IP3X 125A 12 way TPN Distribution Board
18PSC12MR
IP3X 125A 16 way TPN Distribution Board
18PSC16MR
IP3X 125A 20 way TPN Distribution Board
18PSC20MR
IP3X 125A 24 way TPN Distribution Board
18PSC24MR
50mm
2
Terminal capacity
Optional integral meter ready facility available as standard
125A SPN DISTRIBUTION BOARDS COMPLETE WITH
125A DP SWITCH DISCONNECTOR INCOMER
l
Description
List No.
IP3X 125A 5 way SPN Distribution Board
18PSC05/21A
IP3X 125A 8 way SPN Distribution Board
18PSC08/21A
IP3X 125A 11 way SPN Distribution Board
18PSC11/21A
IP3X 125A 14 way SPN Distribution Board
18PSC14/21A
IP3X 125A 19 way SPN Distribution Board
18PSC19/21A
IP3X 125A 28 way SPN Distribution Board
18PSC28/21A
125A Busbar. 28 way distribution board supplied in 2 bank format
COMPLETE WITH 80A 30mA RCCB INCOMER
l
IP3X 80A 5 way SPN Distribution Board
18PSC05/33A
IP3X 80A 8 way SPN Distribution Board
18PSC08/33A
IP3X 80A 11 way SPN Distribution Board
18PSC11/33A
COMPLETE WITH 80A 100mA RCCB INCOMER
l
IP3X 80A 5 way SPN Distribution Board
18PSC05/31A
IP3X 80A 8 way SPN Distribution Board
18PSC08/31A
IP3X 80A 11 way SPN Distribution Board
18PSC11/31A
COMPLETE WITH DUAL RCCB SPLIT LOAD INCOMERS
l
IP3X 80A 4+6 way Split Load Distribution Board
18PSC10/S413A
IP3X 80A 5+5 way Split Load Distribution Board
18PSC10/S513A
IP3X 80A 6+4 way Split Load Distribution Board
18PSC10/S613A
125A double pole main switch control of all MCB ways
Final circuit additional protection by two 80A 30mA RCCBs
125A TPN DISTRIBUTION BOARD INCOMER OPTIONS
SWITCH DISCONNECTORS AND DIRECT
CONNECTION
l
Order device and kit (where required) separately
Switch Disconnector
Device
Kit
125A 2P
1252SD
18PSC2PLK
125A 3P
1253SD
Not Required
125A 4P
1254SD
18PSC4PLK
Direct Connection
Device
Kit
125A 3P
125DCB
Not Required
50mm
2
Terminal capacity. IEC/EN 60947-3
Residual Current Circuit Breakers
Device
Kit
100A 4P 30mA
241/030
18PSC4PLK
100A 4P 100mA
241/100
18PSC4PLK
100A 4P 100mA TD
241/100TD 18PSC4PLK
100A 4P 300mA
241/300
18PSC4PLK
100A 4P 300mA TD
241/300TD 18PSC4PLK
Type AC 35mm² Terminal capacity BS EN 61008
18PSC12MR
18PSC14/21A
18PSC2PLK
241/100
18PSC4PLK
1252SD 1253SD 1254SD
125A IP3X DISTRIBUTION BOARDS AND THEIR INCOMING OPTIONS
l
16kA rated SPN and TPN MCB
Distribution Boards
l
Incoming options -
order separately
:
125A Switch Disconnector TP/4P - 50mm
2
100A RCCB 4P - 35mm
2
125A Direct Cable - 50mm
2
l
Integral metering available with Meter Ready
(MR) board utilising a TP Incoming option
l
Busbars rated at 125A
l
IP3X (Door Closed)
l
Full compliment of Neutral & Earth terminals
Incoming maximum 70mm
2
Outgoing maximum 25mm
2
l
Allows the fixture of dual Earth bars (IP3X)
l
Clean Earth kit available (IP3X)
l
All IP3X boards are supplied as standard with
hinged outer door, catch (lock is optional extra)
and removable top/bottom gland plates
l
Neutral busbar supports incorporate an integral
MCB end stop
l
BS EN 61439-3
16
POLESTAR COMPACT
I P3X 125A DI STR I BUT ION BOARDS & INCOMERS
