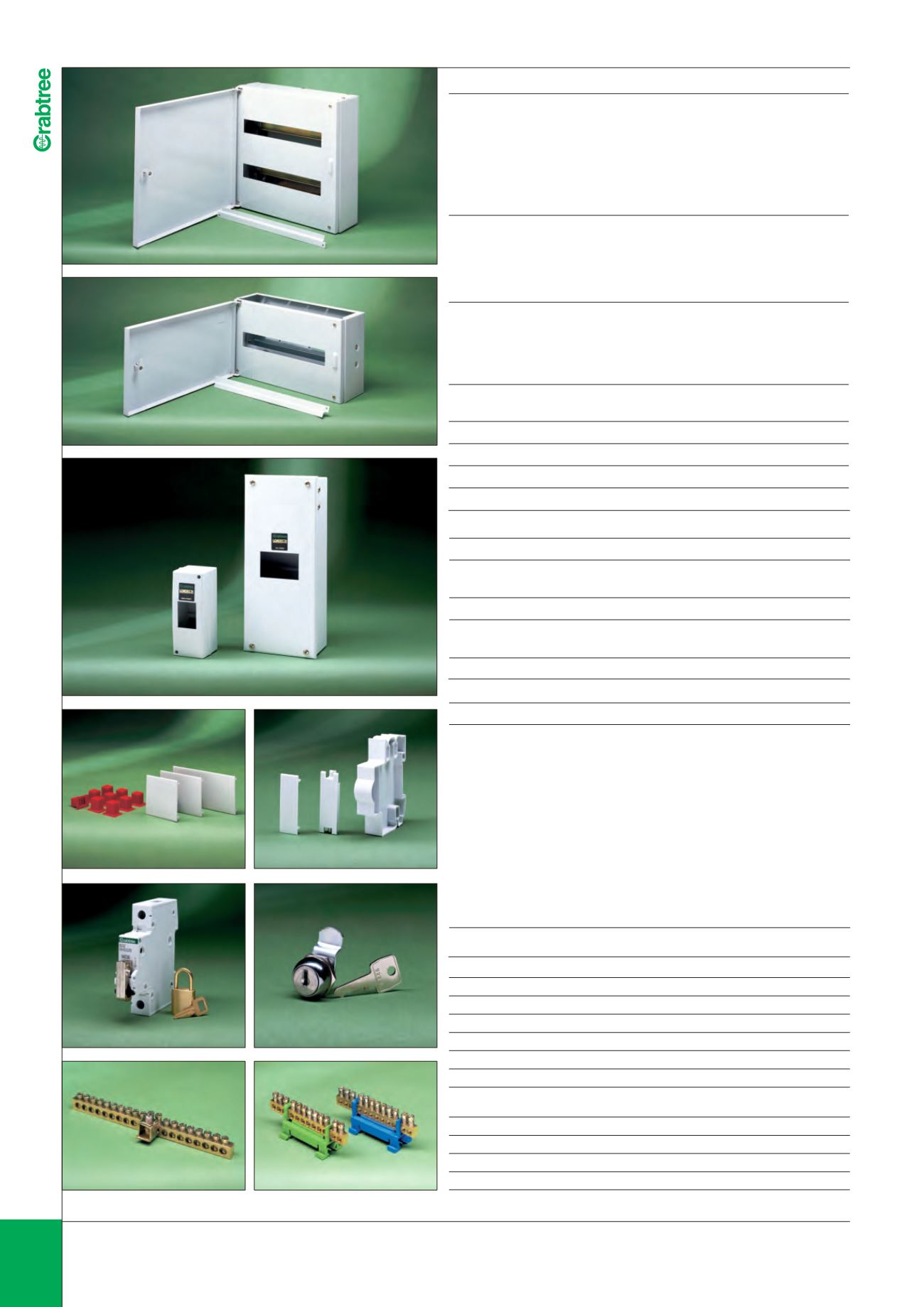

8 / 78
CSBC 18MBP1
18BB1 Blanking
Strip
16CL
MCBLD + 748
17CC
(fitted to Earth Bar)
CLEB12 CLNB12
INDIVIDUAL ENCLOSURES
l
H W D Insulated
2 Modules wide 152 63 63
18GP2S
4 Modules wide 152 79 61
18GP4S
H W D Metalclad
2 Modules wide 225 90 67
18GP2M
4 Modules wide 317 136 82
18GP4M
GENERAL LOADSTAR ACCESSORIES TP & SP
l
List No
Cylinder Lock & Key
16CL
MCB Locking device (excl. lock)
MCBLD
Padlock & Key for use with MCBLD
748
Clean Earth Bar Kit
18CEBK
(4 to 12 way=2 kits, 16 to 24 way=4 kits).
Blanking Strip - 6 Individual 1 module wide pieces
18BP1/6
Blanking Strip - 12 Individual 1 module wide pieces
18BP1/12
Blanking Strip - 4 lengths each 3 modules wide
18PB3/4
Blanking Strip - 2 lengths each 12 modules wide
18BP12/2
Clip In Blank SP Moulding
CSBC
Busbar cross connector insulator - pack of 9
18BB1
SP MCB size Blank (shields MCB & Busbar Terminal)
18MBP1
Cable clamp assembly (70mm
2
) - pack of 3
17CC
l
Previously manufactured DBs utilise 18CB1 blank pieces
ADDITIONAL EARTH BAR KITS
l
Additional Earth Bars to fit TP Distribution Boards
No of Ways List No No of Ways List No
4
18EB04
16
18EB16
6
18EB06
20
18EB20
8
18EB08
24
18EB24
12
18EB12
Earth and Neutral bar, 10mm
2
cable max, for use with DIN Rail
NEUTRAL EARTH
7 Terminals
CLNB07 CLEB07
12 Terminals
CLNB12 CLEB12
15 Terminals
CLNB15 CLEB15
18AS2
18DIN18
DINRAIL, ROWBOARD, SERVICE CENTRES
l
Rowboard:
l
Suitable for ’Stand-Alone‘ use or ’Add-On‘ above surface ’L‘ type board.
l
Each row will accommodate 18 off 18mm module wide DIN Rail mounted
devices.
l
Main Neutral and Earth Bars included, along with provision for additional
’Mini‘ Neutral and Earth bars.
No of Rows H W D Surface
1 245 430 155
18AS1
2 410 430 155
18AS2
3 570 430 155
18AS3
4 735 430 155
18AS4
5 815 430 155
18AS5
Service Centre/DIN Rail Board:
l
‘Add-On’ for fixture above or below surface ’L‘ Type board.
l
Equipped with easily removed DIN Rail to accommodate 18 or 36, 18mm
module wide DIN Rail mounted devices
l
245mm & 410mm high
18 Module
18DIN18
36 Module (2 Rows of 18)
18DIN36
Cable Spreader Box
Add on Enclosure, 245mm high, Blank front cover plate
18SB
18GP2S
18GP4M
8
LOADSTAR
ACCESSOR I ES
