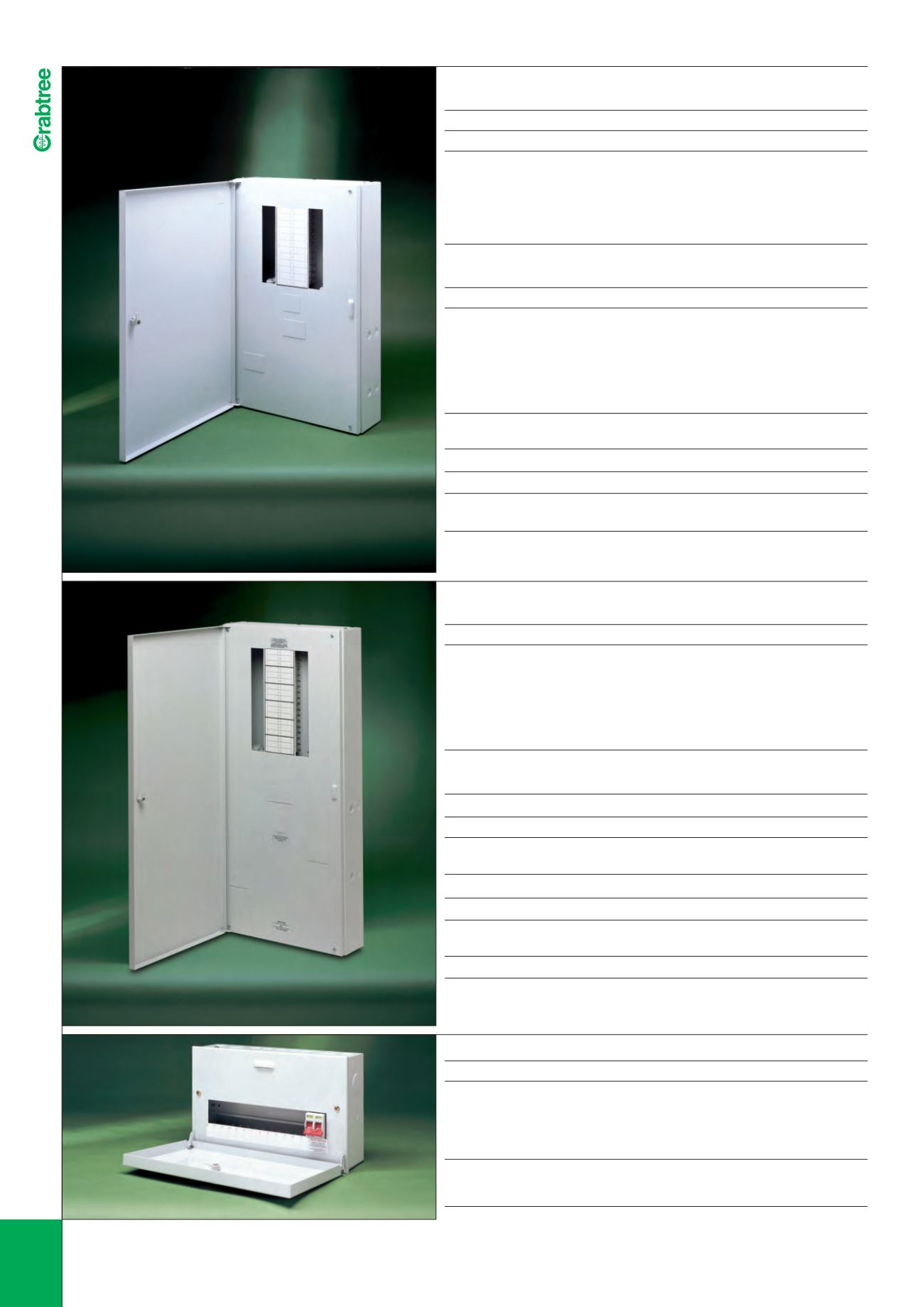

6 / 78
18LS08MR
Integral Metering option
18SN14
LOADSTAR 125A ‘METER READY’ TYPE B
DISTRIBUTION BOARD
l
No of Ways
Surface
Flush with DIN Section
4
18LS04MR
18LF04 18LS04D
6
18LS06MR
18LF06 -
8
18LS08MR
18LF08 18LS08D
12
18LS12MR
18LF12 18LS12D
16
18LS16MR
18LF16 18LS16D
20
18LS20MR
18LF20 18LS20D
24
18LS24MR
18LF24 -
l
DIN rail to accommodate up to 18 modules of control devices Contactor, Timer
etc. with DIN section models
ADD - ON 12W LOADSTAR ‘L‘ BOARD
l
No of Ways
H
W
D List No.
12
675 430 155
18LS12A
Vertical connection kit
18LK12V
l
18LS12A ‘Add-on’ Board is designed to fit above 16, 20 &24 way ‘L‘ Boards,
to create 28, 32 & 36 way TP Boards
l
18LK12V kit connects 18LS12A to 16, 20 & 24 way Boards
LOADSTAR 80A SINGLE ROW TYPE B
DISTRIBUTION BOARD
l
No of Ways
H
W
D List No.
6
257 460 155
18LS06AMR
l
80A 6w TPN Distribution Board
l
TP or 4P switch disconnector incomer available
l
Full complement of Neutral & Earth terminals
l
Supplied with hinged outer door and catch (lock is optional extra)
l
Supplied with undrilled removable gland plates
l
Compliance with BS EN 61439-3
LOADSTAR 125A TYPE A DISTRIBUTION BOARD
l
No of Ways
H
W
D List No.
5
235 188 128
18SN05
8
235 242 128
18SN08
11
235 293 128
18SN11
14
235 343 128
18SN14
19
235 437 128
18SN19
l
Board supplied with 125A DP Switch Disconnector MCBs to be specified and
ordered separately
6
LOADSTAR
D I STR I BUT I ON BOARDS
250A TYPE B DISTRIBUTION BOARDS
‘METER READY’ SURFACE
l
No of Ways
H
W
D List No.
4
768 430 155
18LS204MR
6
822 430 155
18LS206MR
8
876 430 155
18LS208MR
12
984 430 155
18LS212MR
16
1092 430 155
18LS216MR
20
1200 430 155
18LS220MR
24
1308 430 155
18LS224MR
SWITCH DISCONNECTORS DIRECT CONNECTION &
MCCB INCOMERS
l
Switch Disconnector
List No
250A* 3P
250TPSD
l
150mm
2
Terminal capacity
* Derated to 225A when used as an incomer to MCB distribution boards.
Direct Connection
250A 3P
250TPDC
l
120mm
2
Terminal capacity
l
All Incomers are supplied complete with mounting kit, links & fixing screws
200A 3P MCCB
200TPMB
l
185mm
2
terminal capacity
l
All Incomers are supplied complete with mounting kit, links & fixing screws
l
IEC 60947-2, EN 60947-2
18LS212MR
