1/6

Description

(

continued)

Presentation:

page 1/4

Memory structure:

pages 1/8 …

References:

pages 1/10 …

PCMCIA references:

pages 1/12 …

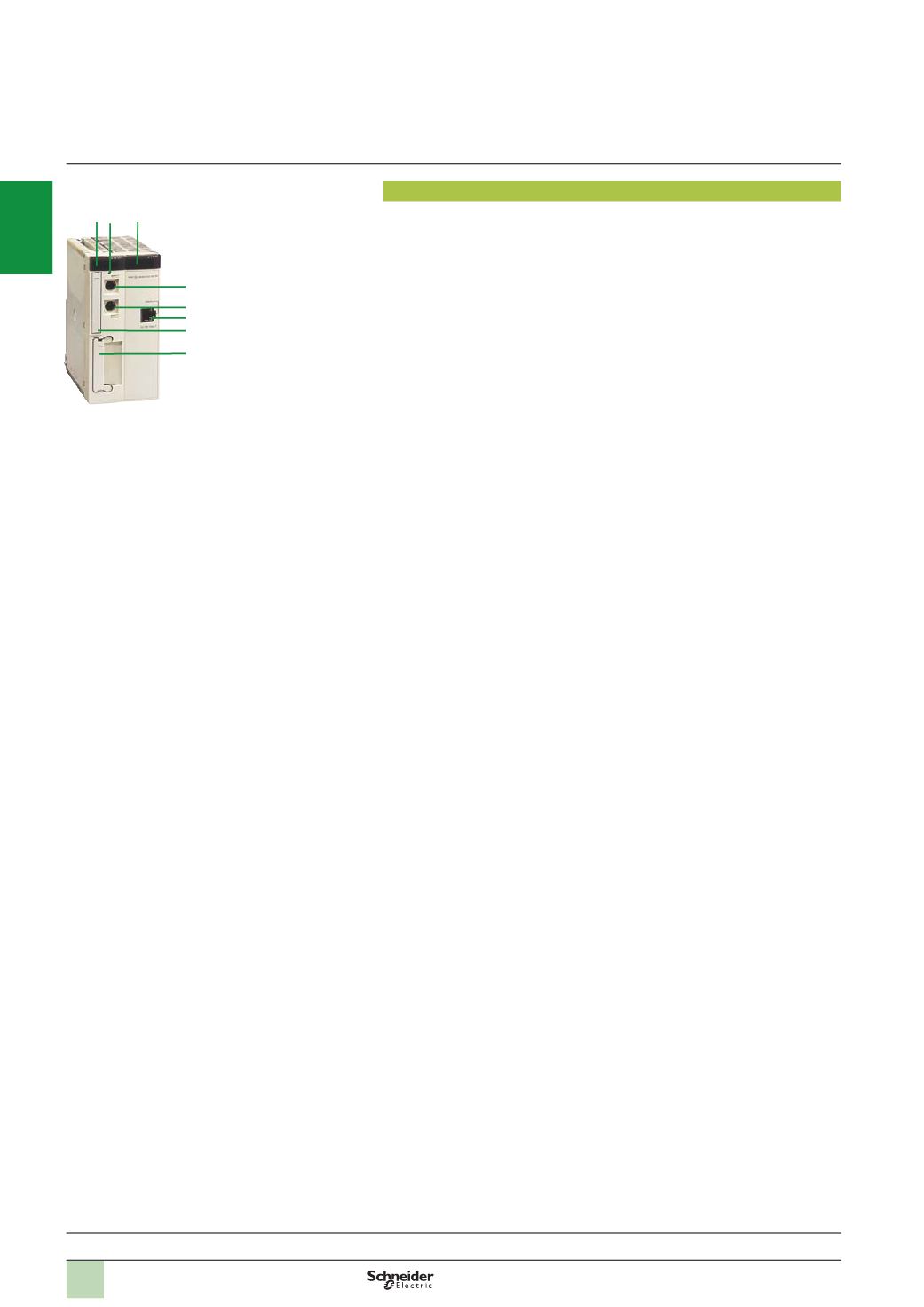

Processors with integrated Ethernet Modbus/TCP port

TSXP57 1634M

/

2634

M

/

3634

M

double-format processors with integrated Ethernet

Modbus/TCP port feature the following on the front panel:

1

A display block with 5 LEDs:

v

RUN LED (green): Processor in operation (program execution)

v

ERR LED (red): Fault on the processor or its on-board devices (PCMCIAmemory

card and PCMCIA communication card)

v

I/O LED (red): Faults occurring on another PLC station module or configuration

fault

v

TER LED (yellow): Activity on the TER or AUX terminal port

2

A display block relating to the integrated Ethernet port featuring 5 LEDs:

v

RUN LED (green): Ethernet port ready

v

ERR LED (red): Ethernet port fault

v

COL LED (red): Collision detection

v

STS LED (yellow): Ethernet link diagnostics

v

Two TX and RX LEDs (yellow): Transmission/reception activity

3

ARESET button causing a cold start of the PLC when pressed.

4

An 8-way female mini-DIN connector marked TER for connecting a programming

or adjustment terminal (RS 485)

5

An 8-way female mini-DIN connector marked AUX for connecting a programming,

adjustment or operator dialogue terminal (RS 485)

6

An RJ45 connector for connection to the 10BASE-T/100BASE-TX Ethernet

Modbus/TCP network

7

A PCMCIA slot (no. 0) for a memory card

8

A PCMCIA slot (no. 1) for a communication card or memory extension card for

storing additional data

Modicon Premium automation

platform

0

Unity processors

TSX P57 1634M/2634M/3634M

1 3 2

6

8

5

4

7

2

1

3

4

5

6

7

8

9

10
