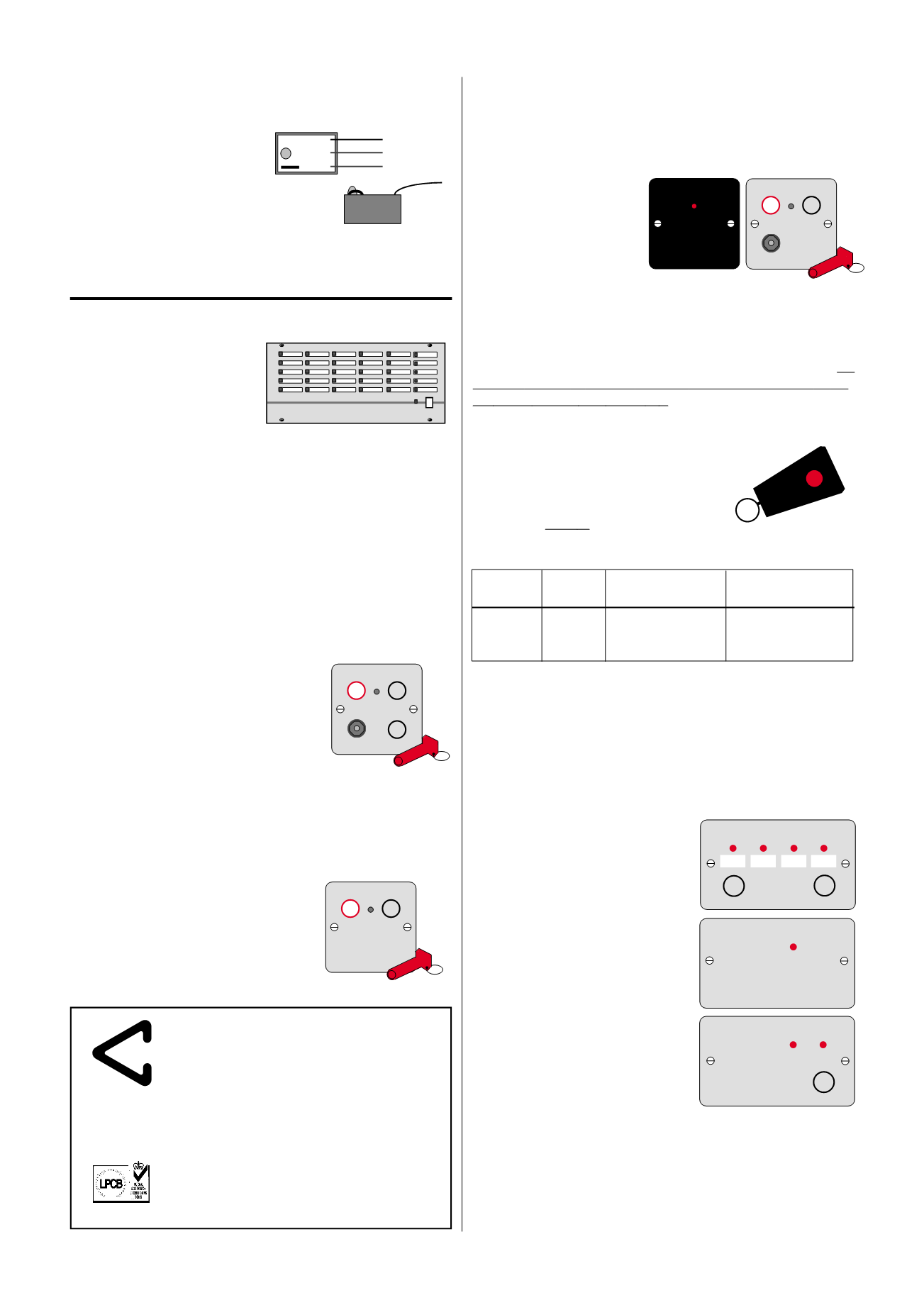

A guide to Nursecall 800

4 / 4

EMERGENCY CALL / RESET POINTS
NC804DE Button Operated Emergency Call / Reset Point
NC809DEM Magnetic Reset Point / Emergency Call Point
NC804DE call/reset points incorporate
an ALERT button (for triggering
emergency calls), a confidence light and
a RESET button. The NC809DEM looks
the same but has ALERT and RESET
‘targets’ instead of buttons, operated by
an NC803M Magnetic reset key.
INFRA-RED CEILING RECEIVERS / CALL POINTS
NC802DERB Emergency Infra-Red Call Point, Button Reset
NC802DERM Emergency Infra-Red Call Point, Magnetic Reset
NC302RXC Infra-Red Master Ceiling Receiver
NC302RXCS Infra-Red Slave Ceiling Receiver
NC802DERB s & NC802DERMs
operate similarly to
NC802DEB1/2 and NC802DEM
call points and they can also
be triggered remotely via the
NC312 Range of Infra-Red
Transmitters. The NC302RXC
master ceiling receiver can also trigger standard and emergency
calls but, as it has no on-board reset facility, 1 x NC899IRR
keyswitch reset point and 1 x NC809DB/DM reset point must be
used to cancel it’s emergency and standard calls. Up to three
NC302RXCS slave receivers can be used per NC302RXC master. For
important information on the siting of infra-red receiving devices
contact the technical department.
INFRA-RED TRANSMITTERS
The NC312 range of Infra-Red Transmitters
have a minimum transmitting range of 10m
(line of sight). They will remotely trigger the
four infra-red receiving devices highlighted
above. They will not trigger any other
Nursecall 800 call point. The table below shows the call level(s)
each transmitter is capable of generating.
Instead of a belt-clip, the NC312RXC transmitter is supplied with a
50cm pendant chain which can be worn around a patients neck.
Replacement battery modules are available (part no. NC312BM).
MULTI-PURPOSE 1-8 ZONE CALL INDICATOR PANELS
NC944 4 zone double gang call controller
NC930 12v double gang power supply unit, 250mA
NC941 1 zone double gang call controller c/w PSU
CALL LATCH MODULE
NC889 Call latch module
Latch modules connect like any
other kind of call point. The
module triggers when a n/o or
n/c switch connected to it is
operated. A reset point may be used or the
master reset on the panel may be used.
Size 25mm x 20mm x 15mm. Fix by self-adhesive pad.
NURSECALL 800 EMERGENCYSYSTEMCOMPONENTS
EMERGENCY INDICATOR PANELS
Emergency indicator panels
are the same size and
appearace as standard indica-
tor panels. They include a
regulated power supply to
charge a 12V 2.1AHr back-up
battery (supplied), one zonal alarm LED per zone, an integral
buzzer, a supply healthy LED and an optional mute button for
silencing standard calls. 10, 20, 30, 40, 50, 60, 70, 80 and 90
zone versions are usually available ex-stock with larger sizes
available to order. Standard system accessories will work with
the emergency system but cannot make emergency calls. If area
indication is required, NC884DE 5:1 Emergency input expanders
must be used. Contact the technical department for details.
EMERGENCY CALL POINTS
NC802DEB1/2 Two Button Emergency Call Point
NC802DEM Magnetic Emergency Call Point
NC802DEB1/2 call points incorporate
a CALL button, a confidence light, a
remote socket, an ALERT button and a
RESET button. The NC802DEM call
point looks the same but has an
ALERT ‘target’ and a RESET ‘target’
instead buttons, operated by an
NC803M Magnetic reset key.
CALL RESET
Call
MUTE
Call
RESET
Four Zone Call Controller In addition to Nursecall 800’s 10-90
emergency indicator panels, a range
of small double gang call controllers
and power supplies are available which
are compatible with all standard and
emergency system components.
The NC944 four zone emergency call
controller includes a buzzer, four zonal
alarm LEDs, a MUTE button to silence
standard calls and a RESET button to
globally cancel all standard calls
(MUTE and/or RESET can be disabled).
Emergency calls can only be cancelled
at the device from which they were
initiated. The controller derives it’s
power from the NC930 power supply
to which up to two NC944’s can be
connected for a maximum of 8 zones.
The NC941 is a combined double gang one zone call controller/
power supply incorporating an internal buzzer, a RESET button and
a zonal alarm LED. Ideal for use in disabled persons toilet alarm
systems, the NC941 is also available as part of the NC951 and
NC950 Disabled Persons Toilet Alarm kits which include everything
required for a compliant and reliable disabled persons toilet alarm
(except cable and fixings). Contact the Sales Office for details.
PART
NUMBER
NC312RXA
NC312RXCA
NC312RXC
BUTTON
COLOUR
RED
ORANGE
ORANGE
CALL LEVEL ON
PRESS OF BUTTON
EMERGENCY CALL
STANDARD CALL
STANDARD CALL
CALL LEVEL ON
BELT-CLIP REMOVAL
EMERGENCY CALL
EMERGENCY CALL
NONE
For further information on C-TEC products:
UK Sales Tel: 01942 322744
UK Sales Fax: 01942 829867
UK Sales E-Mail:
Export Sales Tel: +44-161-2572541
Export Sales Fax: +44-161-2258817
Export Sales E-Mail:
Visit our website at
Approved Document No: DNS0800101 Rev 5
We reserve the right to alter product specifications at our discretion
and without prior notice. Errors and omissions excepted.
Call
RESET
One Zone Call Controller
CAUTION:-
ISOLATEBEFOREOPENING
ON CALLING
Call
ON
CAUTION:-
ISOLATEBEFOREOPENING
Power Supply Unit
Nursecall 800 is
manufactured in
England by C-TEC
QualitySystemCertificateNo.176
Assessed to ISO 9001 : 1994
