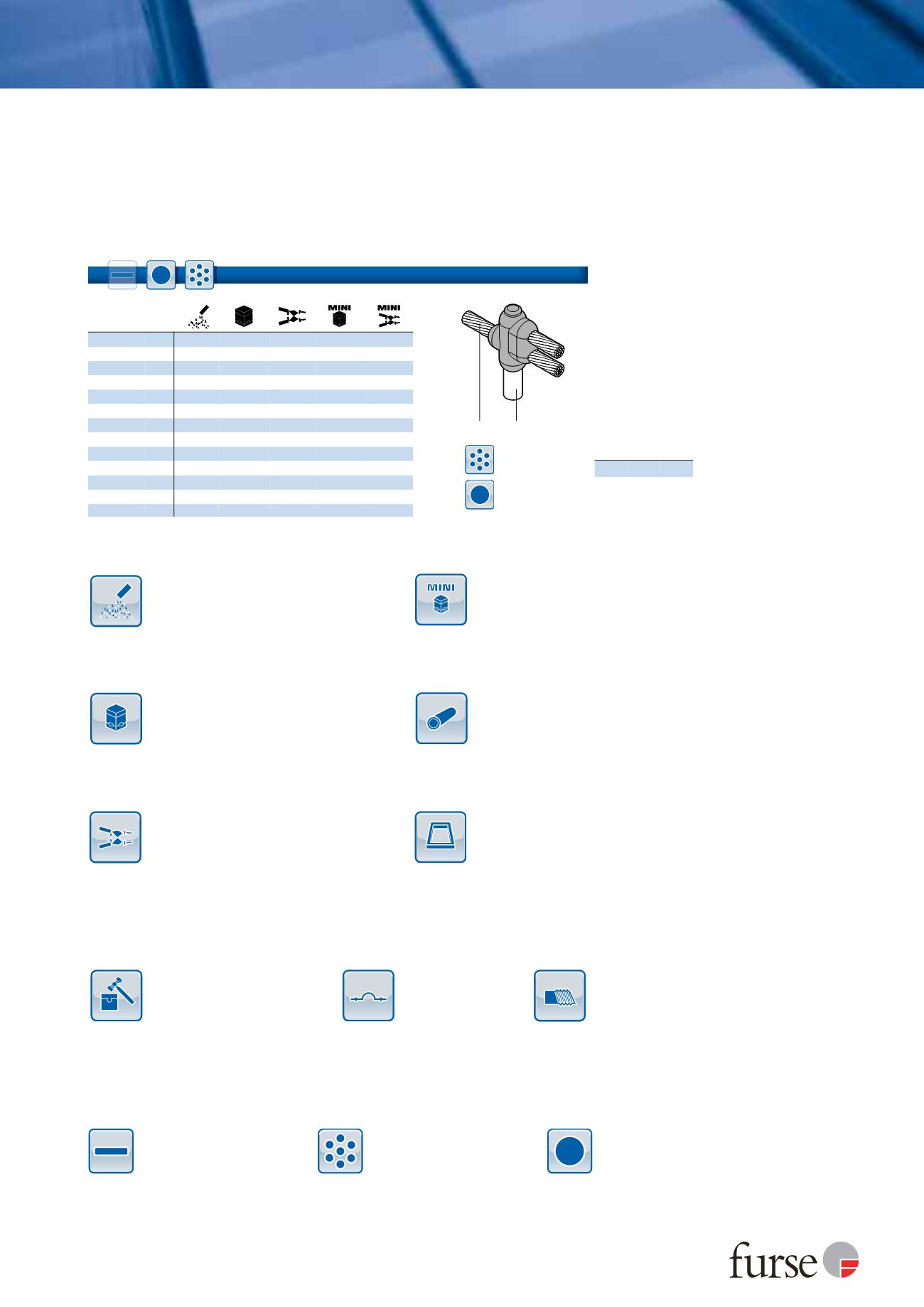

Product selection FurseWELD
TSC-0912 - 09.10.12
Use the ‘Connection Selector’ on pages 122-123 to choose your required joint type.
Conductors must be in the orientation shown to achieve the correct connection. Furse offers technical support to
assist with selection of joint type. If connections shown do not meet your requirements, please contact your local sales
office on +44 (0)115 964 3700 (UK), +971 (0)4 609 1635 (Dubai) or +65 6720 8828 (Singapore) for assistance.
FurseWELD products
Accessories
Conductors
A powder cartridge is
required for each joint to
be made
A single mould is capable
of producing on average
75 joints
Handle clamps for handling
the mould, or clamping the
halves together
Less robust, more cost effective
versions of the mould and
handle clamp are available
Flat tape
conductor
Stranded
conductor
Packing is required when
welding to reinforcing bar
Find the required
conductor sizes
Sleeves are required when
joining conductors smaller
than 16 mm2
Solid circular
conductor
Hammer die Rail bond Stud
A B C
mm inches mm 2
Ø Ø
12.7 1⁄ 2” 16*
12.7 1⁄ 2” 25
Cable to earth rod CR17
C A/B
A B C
mm inches mm2
Ø Ø
12.7 1⁄
2” 16* 90P10 CR17-4-12716 HCPK4 CR17-3-12716 HCPK3
12.7 1⁄
2” 25 90P10 CR17-4-12725 HCPK4 CR17-3-12725 HCPK3
12.7 1⁄
2” 35 90P10 CR17-4-12735 HCPK4 CR17-3-12735 HCPK3
12.7 1⁄
2” 50 115P10 CR17-4-12750 HCPK4 CR17-3-12750 HCPK3
12.7 1⁄
2” 8 mm Ø 115P10 CR17-4-1278SC HCPK4 CR17-3-1278SC HCPK3
12.7 1⁄
2” 70 150P10 CR17-4-12770 HCPK4 - -
12.7 1⁄
2” 95 200P10 CR17-4-12795 HCPK4 - -
12.7 1⁄
2” 120 250P10 CR17-4-127120 HCPK4 - -
14.2 5⁄
8” 16* 90P10 CR17-4-14216 HCPK4 CR17-3-14216 HCPK3
14.2 5⁄
8” 25 90P10 CR17-4-14225 HCPK4 CR17-3-14225 HCPK3
14.2 5⁄
8” 35 90P10 CR17-4-14235 HCPK4 CR17-3-14235 HCPK3
14.2 5⁄
8” 50 115P10 CR17-4-14250 HCPK4 CR17-3-14250 HCPK3
14.2 5⁄
8” 8 mm Ø 115P10 CR17-4-1428SC HCPK4 CR17-3-1428SC HCPK3
