Earth bars
Copper
Tinned
Furse earth bars are an efficient and convenient
way of providing a common earth point, and
integral disconnecting links allow easy isolation
for testing purposes.
Standard Furse earth bars are available in a variety of
lengths, but all consist of a 50 mm wide by 6 mm thick
copper bar with M10 termination screws - standard
product codes are provided on pages 109-111.
Standard features and benefits
The plastic channel base is entirely corrosion
proof - made from high impact uPVC unlike the
traditional galvanized steel channel
Lighter and easier to handle - the use of a modern
polymer channel has reduced the weight of the
products, making them easier to handle
Pre-drilled fixing holes for ease of installation
A range of four designs to meet most installation
requirements
Swan-Neck accessory, to facilitate the main earth
bar connection
New
now available with tinned finish

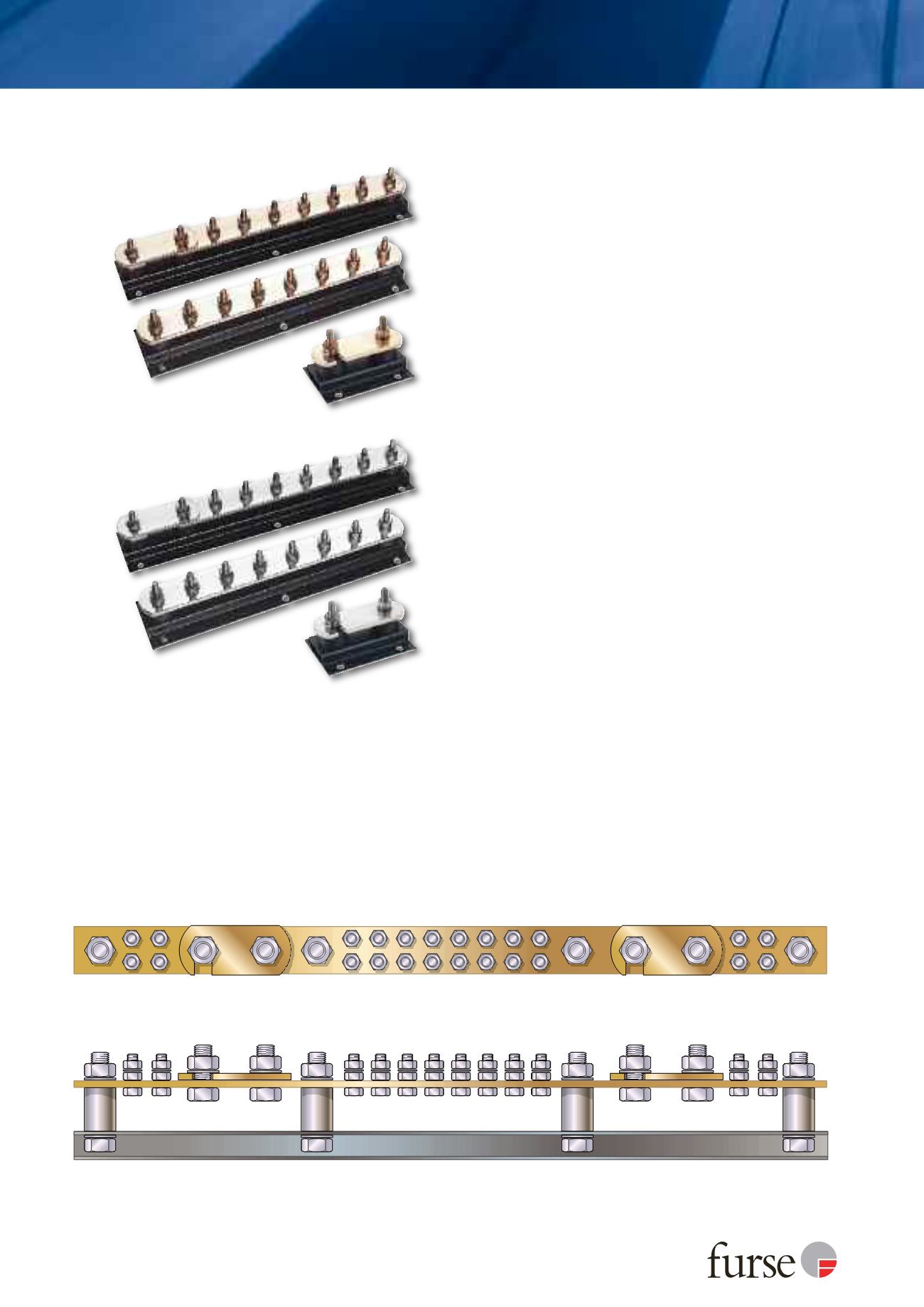

An example of a customer special earth bar comprising M10 and M6 studs and disconnecting links.
Special earth bar requirements
Standard earth bars meet the majority of applications,
however where a customer has a specific requirement,
we can design and manufacture special earth bars and
disconnecting links as appropriate.
Special earth bar designs are provided for customer
review and approval as required before manufacture.
For more information please contact your local Furse
sales office.
Special earth bar design variables include:
Size and type of bolt, hex nut and washer
Length, width and thickness of earth bar
Number of disconnecting links, and their position
Number of insulators
Supplied with mounting base or without
