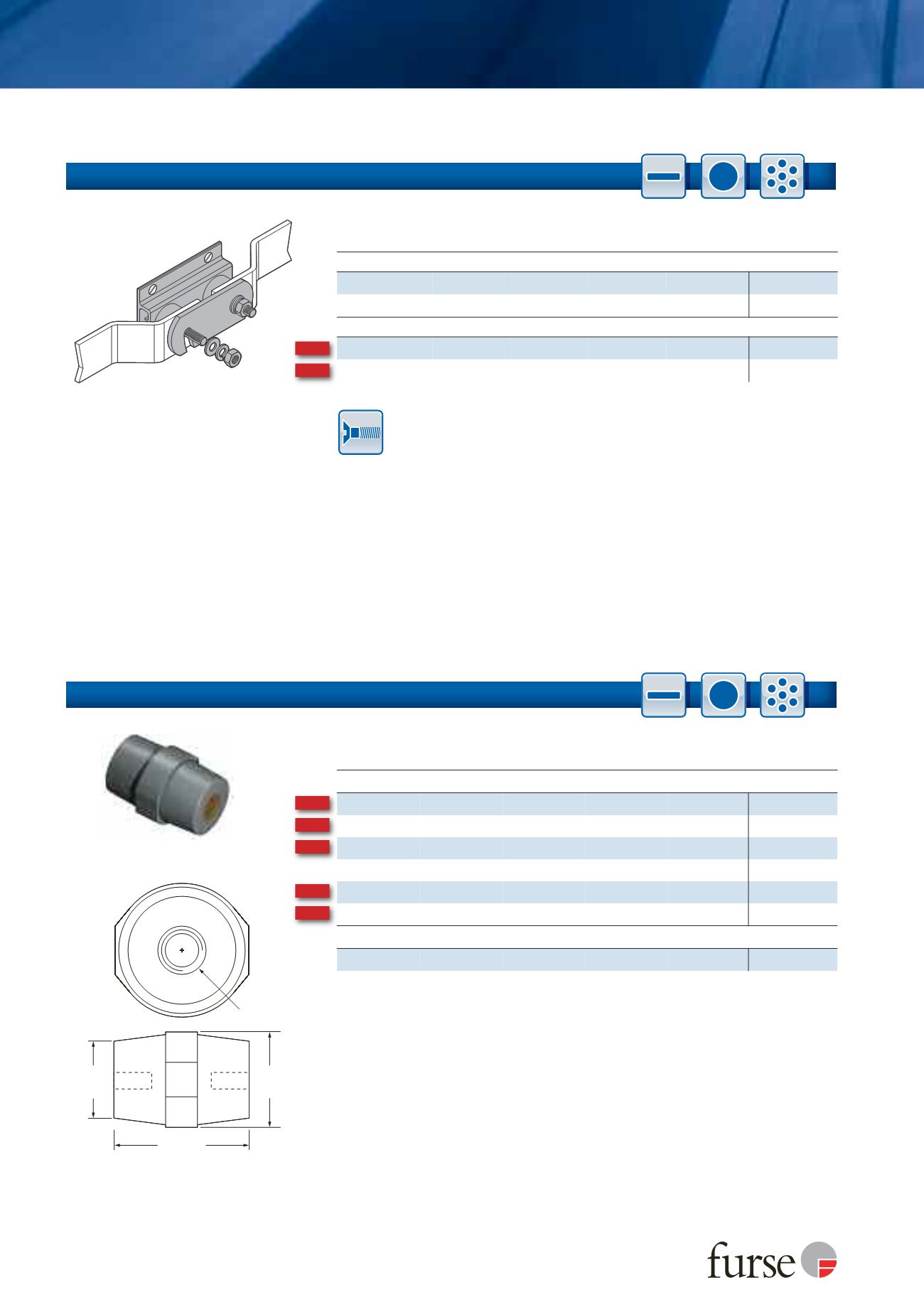

Earth bars and insulators
Insulator
Fix using countersunk wood screws 11⁄
2” No. 12 (Part no. SW110)
and wall plugs (Part no. PS310) - see Accessories page 72.
Height
(A)
Top Diameter
(B)
Maximum
diameter (C)
Insert
size (D)
For copper Part
bar size No.
Insulator
20 mm 14 mm 18 mm M6 25 x 3 mm IN020
30 mm 25 mm 33 mm M6 25 x 6 mm IN030
40 mm 31 mm 39 mm M8 38 x 6 mm IN040
50 mm 27 mm 35 mm M10 50 x 6 mm IN013
60 mm 38 mm 52 mm M10 75 x 6 mm IN060
70 mm 51 mm 55 mm M12 100 x 6 mm IN070
Insulator with 2 studs and 3 nuts
50 mm 27 mm 35 mm M10 50 x 6 mm IN005
Earth bar accessories
Description Length Width Height Weight Part
each No.
Copper earth bar
Swan-neck link 400 mm 50 mm 36 mm 0.42 kg LK004
Disconnecting link 125 mm 90 mm 90 mm 0.59 kg LK205
Tinned copper earth bar
Swan-neck link 400 mm 50 mm 36 mm 0.42 kg LK004-T
Disconnecting link 125 mm 90 mm 90 mm 0.59 kg LK205-T
Insulator manufactured from grey GRP material with brass insert.
