www.emergi-lite.co.ukpractical & easy to install

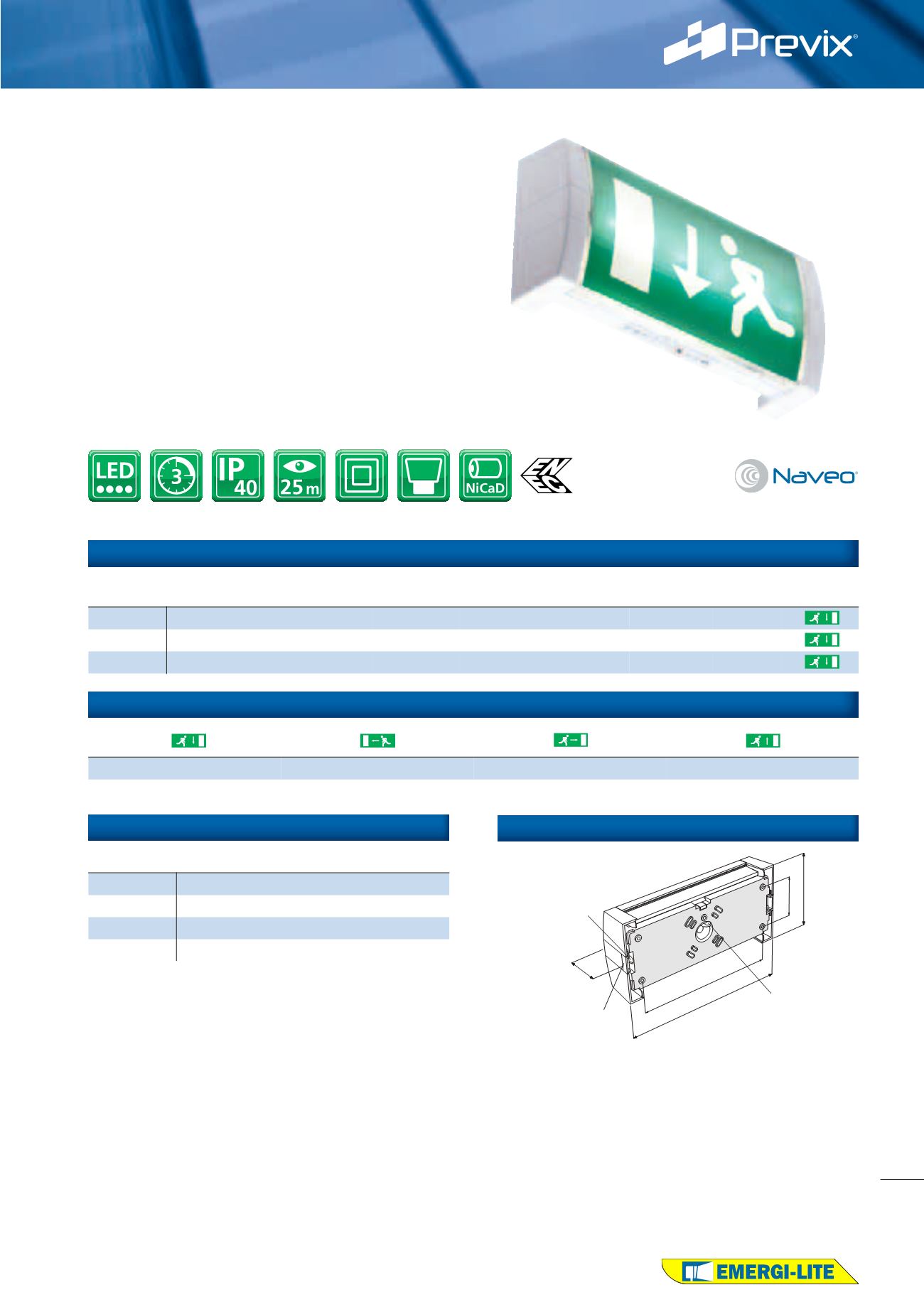

Back-lit LED exit sign.
Ideal for use in commercial offices, hotels, public
buildings, cafes and retail units etc
Manufactured from high grade polycarbonate
in white
Straightforward installation, with first-fix base
Suitable for surface mounting
Intelligent Self-Test as standard
Designed & manufactured to meet the
requirements of BS EN 60598.2.22
Manufactured in the UK
Order
Code
Input
Voltage
Lamp
Type
Power
Consumption
Operation /
Duration (hrs)
Recharge
Period
Environment
Weight
Includes
Legend
PX3LS1
220 - 240 Vac, 50 Hz 1 W LED strip
27 mA
M3
24 hours
0 - 25 °C
1.0 kg
PX1LS1HF
220 - 240 Vac, 50/60 Hz 1 W LED strip
30 mA
230 V
-
0 - 40 °C
0.9 kg
PX1LS1LTC
220 - 240 Vac, 50/60 Hz 1 W LED strip
30 mA
230 V
-
0 - 40 °C
1.0 kg
LED base unit
Legends
XE02PX
XE03PX
XE06PX
XE05PX
Legends are screen printed. Euro pictogram legends shown. ISO 7010 format legends are available to order, see page 95 or contact Emergi-Lite.
Dimensions
287
136
67
240
72
Ø 10 mm
Ø 12 mm (3x)
Cable entry points (3x)
Accessories
Order Code Description
BK XL
Protective wire guard
PX/BCM
Ceiling bracket, vertical mount
PX/BWM
Wall bracket, for flag sign mount
PX/LENS4
Set of 4 lenses (for enhanced spacing in general use)
For accessory drawings, see page 92.
For further information on Naveo emergency luminaire testing format, see
pages 73 - 75 or contact Emergi-Lite.
