Adaptaflex Product Catalogue |
LIT211GB 0715
2

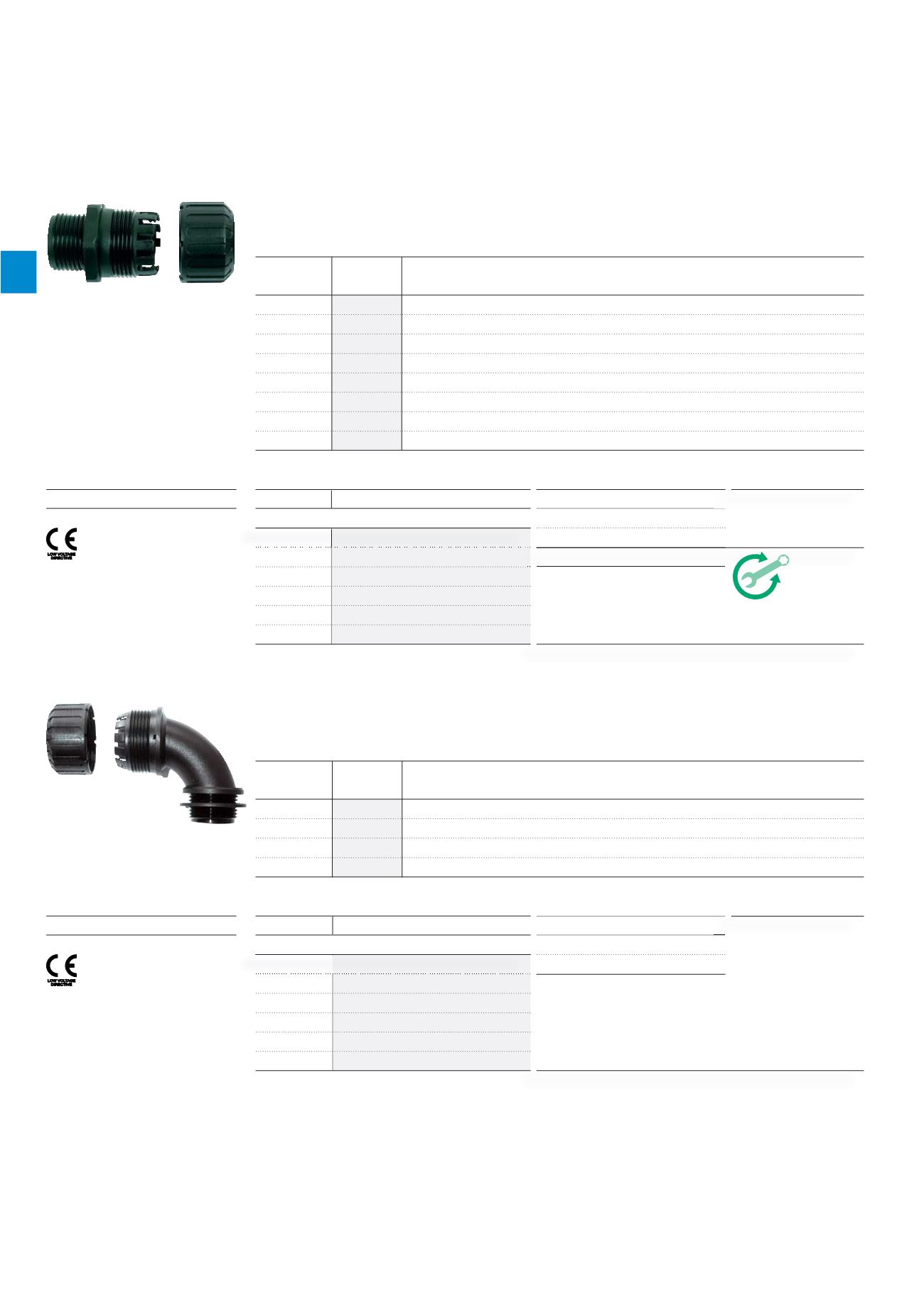

Non-metallic conduit systems
PVC Type A & C90 - XF
Type A - XF
Straight Fitting - Fixed External Male Thread
/
For insertion into threaded entries & knockouts. Locknuts supplied with METRIC THREAD ONLY
Materials:
Polyamide (Nylon) 66 /
Colour:
Black (BL) Only
Nominal
Metric
Part No.
Conduit Size Thread
XF12/M16/D 12mm
M16
XF16/M16/D 16mm
M16
XF16/M20/D 16mm
M20
XF20/M20/D 20mm
M20
XF25/M25/D 25mm
M25
XF32/M32/D 32mm
M32
XF40/M40/D 40mm
M40
XF50/M50/D 50mm
M50
To order quote part number, e.g. XF16/M16/D
Type A
Straight Fitting
Type C90 - XF
90º Elbow Fitting - Fixed External Male Thread
/
For insertion into knockouts. Locknuts supplied with METRIC THREAD ONLY
Materials:
Polyamide (Nylon) 66 /
Colour:
Black (BL) Only
Nominal
Metric
Part No.
Conduit Size Thread
XF16/M16/C90 16mm
M16
XF20/M20/C90 20mm
M20
XF25/M25/C90 25mm
M25
XF32/M32/C90 32mm
M32
To order quote part number, e.g. XF16/M16/C90
Type C90
90º Elbow Fitting
IP Rating
Appropriate Conduit
For use with:
Xtraflex Type XF
IP40
N/A
IP65
Yes
IP66
N/A
IP67
N/A
IP68
N/A
IP69K
N/A
Temperature Range
Static Applications: -5ºC to +60ºC
Moving Applications: -5ºC to +60ºC
Fitting Characteristics
Approvals
IP Rating
Appropriate Conduit
For use with:
Xtraflex Type XF
IP40
N/A
IP65
Yes
IP66
N/A
IP67
N/A
IP68
N/A
IP69K
N/A
Temperature Range
Static Applications: -5ºC to +60ºC
Moving Applications: -5ºC to +60ºC
Approvals
