Adaptaflex Product Catalogue |
LIT211GB 0715

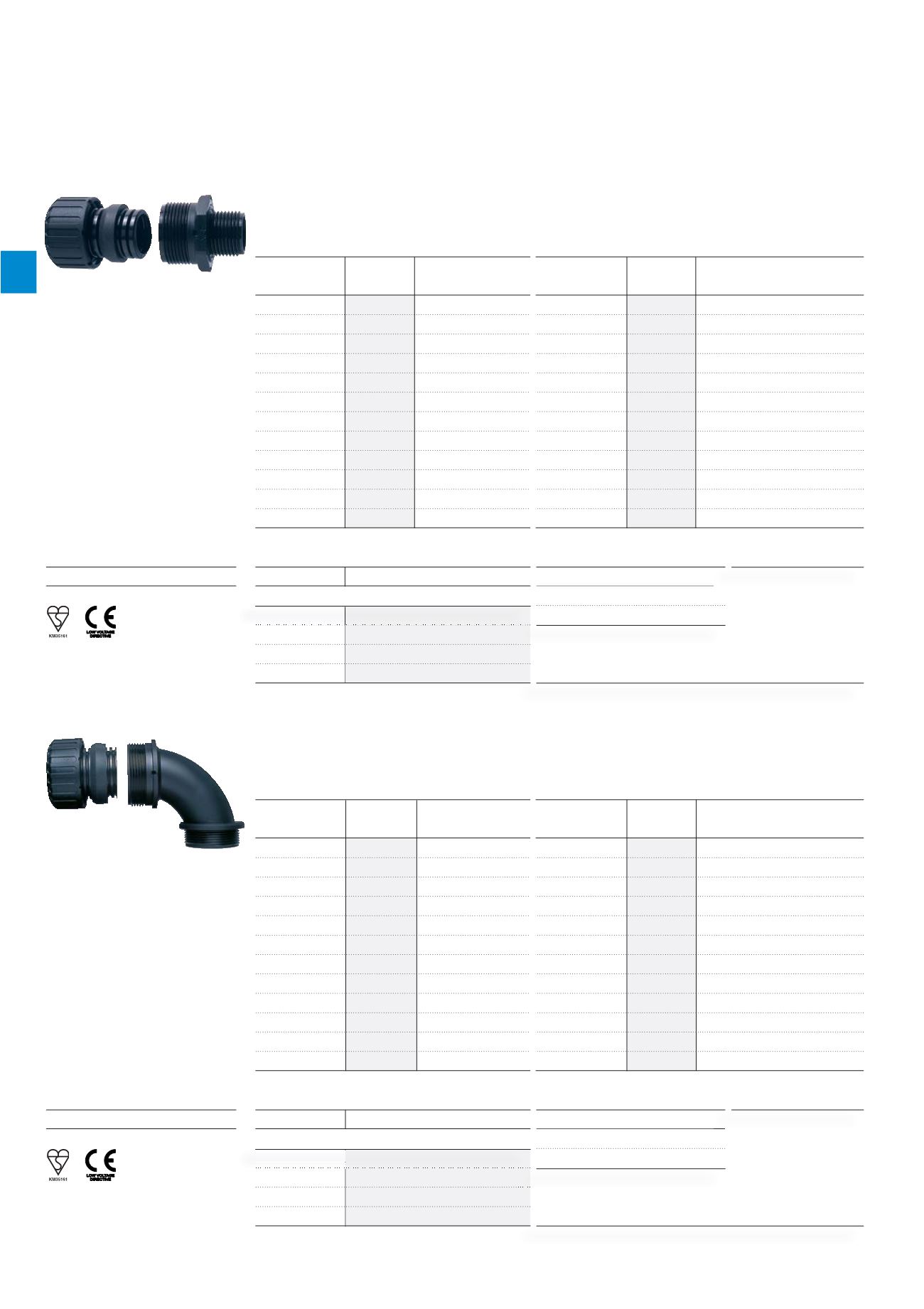

2
Non-metallic conduit systems
Type A & C90 - Adaptaseal
IP Rating
Appropriate Conduit
For use with:
Type PA / PI / CP / PR / PF
IP66
Yes
IP67
Yes
IP68
Yes (2 bar 30mins)
IP69K
Yes
Type A - Adaptaseal
Straight Fitting - Fixed External Male Thread
/
For insertion into knockouts using a locknut. Locknut supplied with METRIC THREAD ONLY
Materials:
Polyamide (Nylon) 66 /
Colour:
Black (BL), Grey (GR)
Nominal
Metric
Nominal
PG
Part No.
Conduit Size Thread
Part No.
Conduit Size Thread
ASF10/M16/A
10mm
M16
ASF10/PG9/A
10mm
PG9
ASF13/M16/A
13mm
M16
ASF13/PG9/A
13mm
PG9
ASF16/M16/A
16mm
M16
ASF16/PG11/A
16mm
PG11
ASF16/M20/A
16mm
M20
ASF16/PG13/A
16mm
PG13.5
ASF21/M20/A
21mm
M20
ASF21/PG16/A
21mm
PG16
ASC21/M20/A
21mm
M20
ASC21/PG16/A
21mm
PG16
ASF28/M25/A
28mm
M25
ASF28/PG21/A
28mm
PG21
ASC28/M25/A
28mm
M25
ASC28/PG21/A
28mm
PG21
ASF34/M32/A
34mm
M32
ASF34/PG29/A
34mm
PG29
ASC34/M32/A
34mm
M32
ASC34/PG29/A
34mm
PG29
ASC42/M40/A
42mm
M40
ASC42/PG36/A
42mm
PG36
ASC54/M50/A
54mm
M50
ASC54/PG48/A
54mm
PG48
To order quote part number & body colour, e.g. ASF10/M16/A/BL
PF & NPT thread sizes available
Temperature Range
Static Applications: -40ºC to +120ºC
Moving Applications: -5ºC to +120ºC
Approvals
Type A
Straight Fitting
IP Rating
Appropriate Conduit
For use with:
Type PA / PI / CP / PR / PF
IP66
Yes
IP67
Yes
IP68
Yes (2 bar 30mins)
IP69K
Yes
Type C90 - Adaptaseal
90° Elbow Fitting - Fixed External Male Thread
/
For insertion into knockouts using a locknut. Locknut supplied with METRIC THREAD ONLY
Materials:
Polyamide (Nylon) 66 /
Colour:
Black (BL), Grey (GR)
Nominal
Metric
Nominal
PG
Part No.
Conduit Size Thread
Part No.
Conduit Size Thread
ASF10/M16/C90 10mm
M16
ASF10/PG9/C90
10mm
PG9
ASF13/M16/C90 13mm
M16
ASF13/PG9/C90
13mm
PG9
ASF16/M16/C90 16mm
M16
ASF16/PG11/C90 16mm
PG11
ASF16/M20/C90 16mm
M20
ASF16/PG13/C90 16mm
PG13.5
ASF21/M20/C90 21mm
M20
ASF21/PG16/C90 21mm
PG16
ASC21/M20/C90 21mm
M20
ASC21/PG16/C90 21mm
PG16
ASF28/M25/C90 28mm
M25
ASF28/PG21/C90 28mm
PG21
ASC28/M25/C90 28mm
M25
ASC28/PG21/C90 28mm
PG21
ASF34/M32/C90 34mm
M32
ASF34/PG29/C90 34mm
PG29
ASC34/M32/C90 34mm
M32
ASC34/PG29/C90 34mm
PG29
ASC42/M40/C90 42mm
M40
ASC42/PG36/C90 42mm
PG36
ASC54/M50/C90 54mm
M50
ASC54/PG48/C90 54mm
PG48
To order quote part number & body colour, e.g. ASF10/M16/C90/BL
PF & NPT thread sizes available
Temperature Range
Static Applications: -40ºC to +120ºC
Moving Applications: -5ºC to +120ºC
Approvals
Type C90
90° Elbow Fitting
