Non-metallic conduit systems
Type Y - Adaptalok ATS
™
Type Y - Adaptalok ATS
™

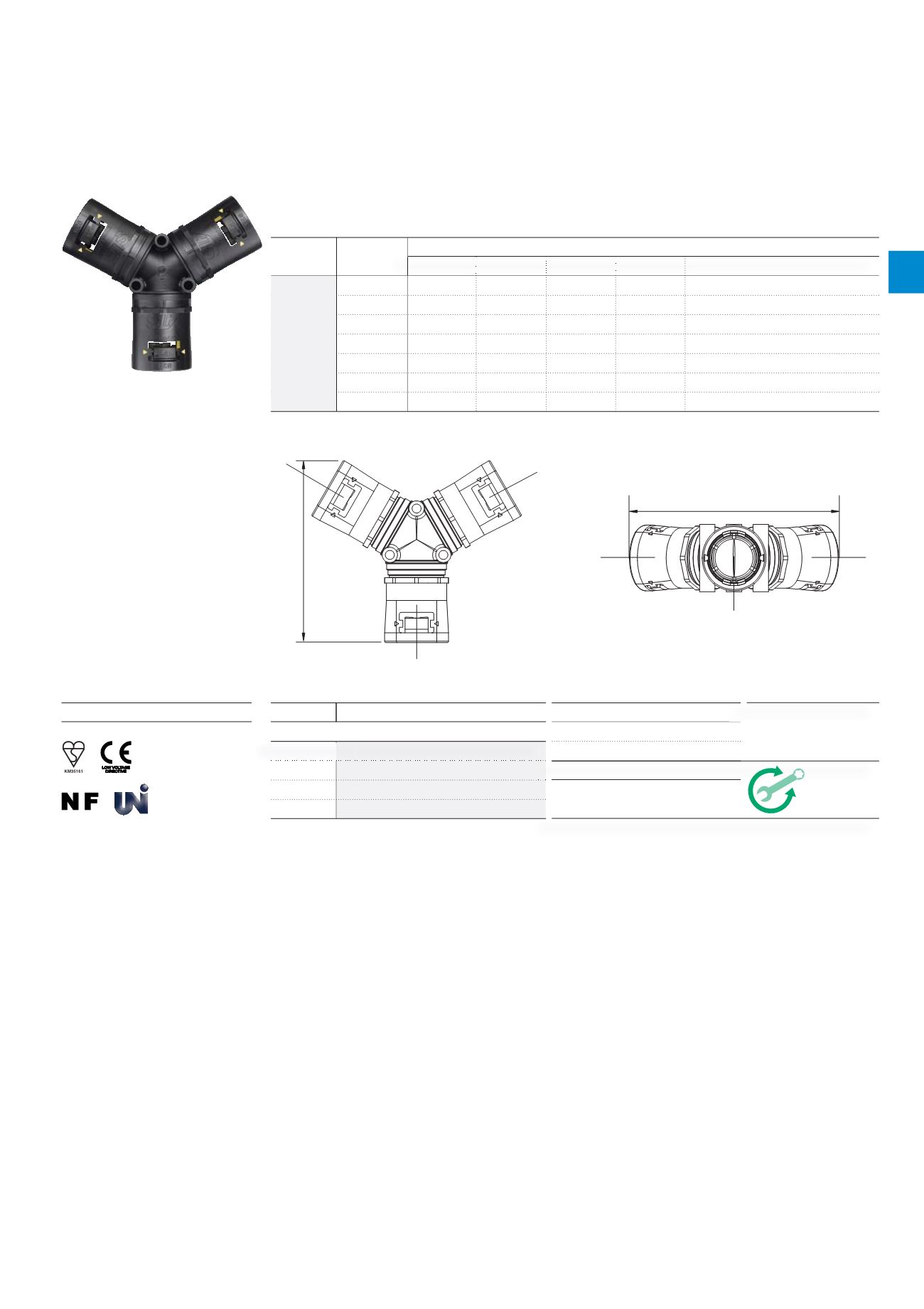

3 Way ‘Y’ Piece
/
Materials:
Polyamide (Nylon) 66 /
Colour:
Black (BL), Grey (GR) / Yellow (Y), Blue (B) Elastomer
Nominal Dimensions / Conduit Size
Part No.
A
B
C
D
E
AT282113/Y 107.1mm
117.8mm
28mm
21mm
13mm
AT282116/Y 110.6mm
117.8mm
28mm
21mm
16mm
AT282121/Y 116.4mm
129.9mm
28mm
21mm
21mm
AT282813/Y 108.7mm
124.6mm
28mm
28mm
13mm
AT282816/Y 112.2mm
124.6mm
28mm
28mm
16mm
AT282821/Y 116.6mm
124.6mm
28mm
28mm
21mm
AT282828/Y 165.0mm
119.0mm
28mm
28mm
28mm
To order quote part number, body colour & Elastomer colour, e.g. AT282113/Y/BLY
Type Y
3 way ‘Y’ Piece
IP Rating
Appropriate Conduit
For use with:
Type PA / PI / PR / PADL / PF
IP40
Yes
IP65
Yes
IP68
Yes (4 bar 30mins)
IP69K
Yes
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Fitting Characteristics
Approvals
E
D
C
A
E
B
C
D
28Y
