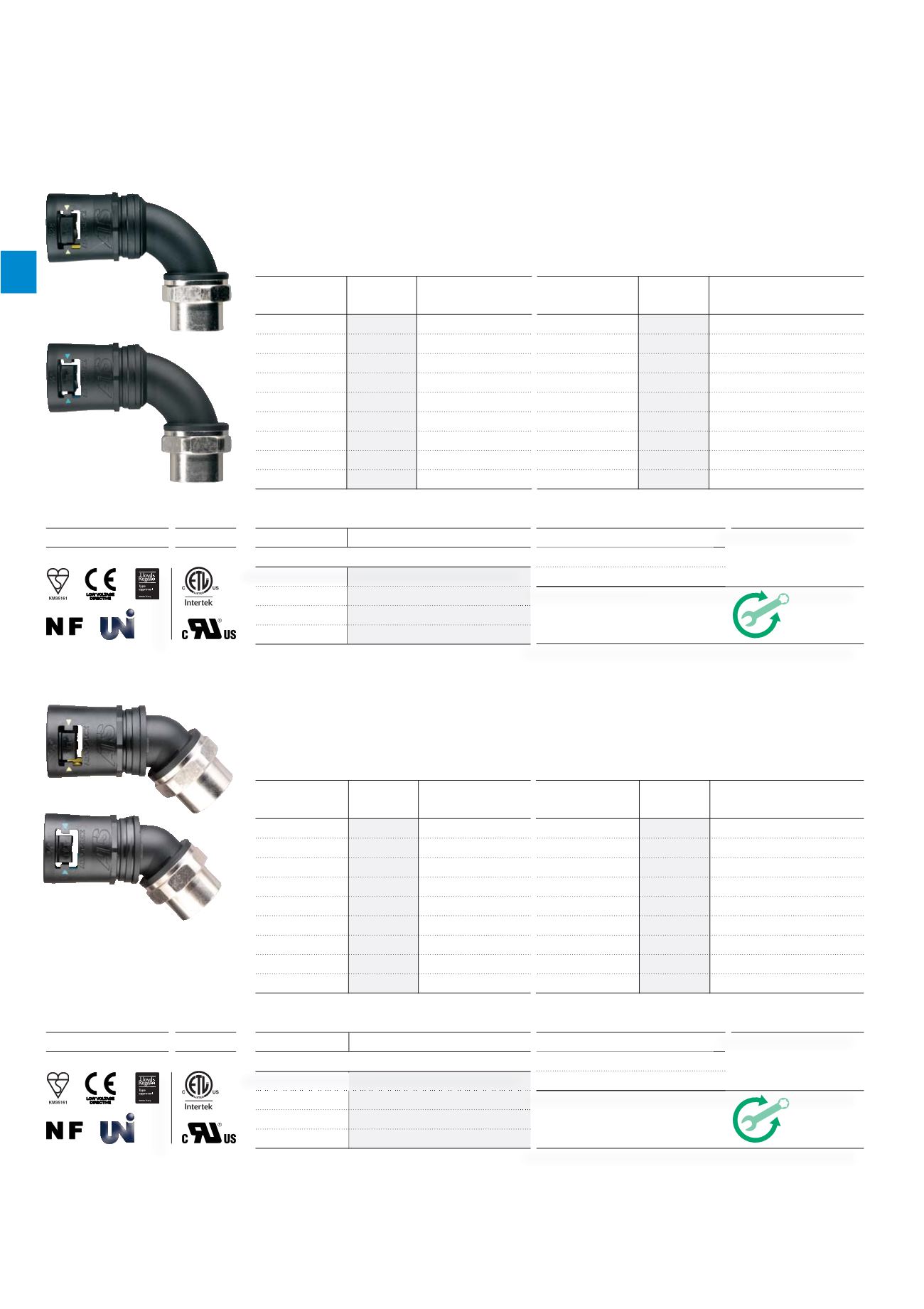

Adaptaflex Product Catalogue |
LIT211GB 0715
2
IP Rating
Appropriate Conduit
For use with:
Type PA / PI / PR / PADL / PF
IP40
Yes
IP65
Yes
IP68
Yes (4 bar 30mins)
IP69K
Yes
Type SF45 - Adaptalok ATS
™
45º Elbow Body - Swivel Internal Female Thread
/
For attaching to external threads & other fittings
Materials:
Polyamide (Nylon) 66, Nickel Plated Brass Thread/TPE
Colour:
Black (BL), Grey (GR) / Yellow (Y), Blue (B) Elastomer
Nominal
Metric
Nominal
NPT
Part No.
Conduit Size Thread
Part No.
Conduit Size Thread
AT13/M16/SF45
13mm
M16
AT13/038/SF45
13mm
3/8”
AT16/M16/SF45
16mm
M16
AT16/038/SF45
16mm
3/8”
AT21/M20/SF45
21mm
M20
AT21/050/SF45
21mm
1/2”
AT28/M25/SF45
28mm
M25
AT28/075/SF45
28mm
3/4”
AT34/M32/SF45
34mm
M32
AT34/100/SF45
34mm
1”
AT42/M40/SF45
42mm
M40
AT42/125/SF45
42mm
1 1/4”
AT48/M50/SF45
48mm
M50
AT48/150/SF45
48mm
1 1/2”
AT54/M50/SF45
54mm
M50
AT54/M63/SF45
54mm
M63
AT54/200/SF45
54mm
2”
To order quote part number, body colour & Elastomer colour, e.g. AT16/M16/SF45/BLB
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Fitting Characteristics
Type SF45
45º Elbow Body
IP Rating
Appropriate Conduit
For use with:
Type PA / PI / PR / PADL / PF
IP40
Yes
IP65
Yes
IP68
Yes (4 bar 30mins)
IP69K
Yes
Type CSF90 - Adaptalok ATS
™
90º Elbow Body - Swivel Internal Female Thread
/
For attaching to external threads & other fittings
Materials:
Polyamide (Nylon) 66, Nickel Plated Brass Thread/TPE
Colour:
Black (BL), Grey (GR) / Yellow (Y), Blue (B) Elastomer
Nominal
Metric
Nominal
NPT
Part No.
Conduit Size Thread
Part No.
Conduit Size Thread
AT13/M16/CSF90 13mm
M16
AT13/038/CSF90
13mm
3/8”
AT16/M16/CSF90 16mm
M16
AT16/038/CSF90
16mm
3/8”
AT21/M20/CSF90 21mm
M20
AT21/050/CSF90
21mm
1/2”
AT28/M25/CSF90 28mm
M25
AT28/075/CSF90
28mm
3/4”
AT34/M32/CSF90 34mm
M32
AT34/100/CSF90
34mm
1”
AT42/M40/CSF90 42mm
M40
AT42/125/CSF90
42mm
1 1/4”
AT48/M50/CSF90 48mm
M50
AT48/150/CSF90
48mm
1 1/2”
AT54/M50/CSF90 54mm
M50
AT54/M63/CSF90 54mm
M63
AT54/200/CSF90
54mm
2”
To order quote part number, body colour & Elastomer colour, e.g. AT16/M16/CSF90/BLB
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Fitting Characteristics
Type CSF90
90º Elbow Body
Non-metallic conduit systems
Type CSF90 & SF45 - Adaptalok ATS
™
Approvals
Blue Elastomer
Version Only
Approvals
Blue Elastomer
Version Only
