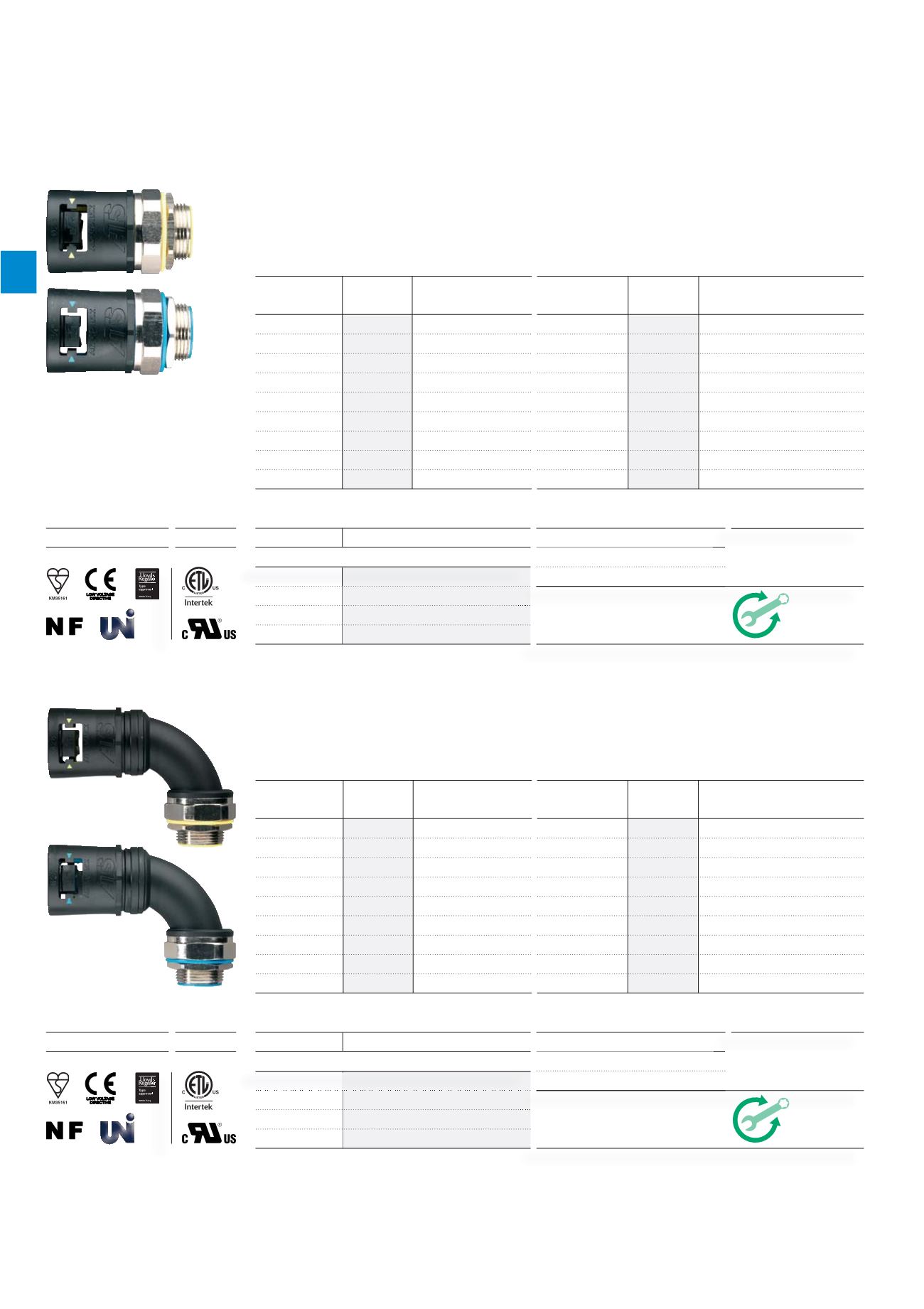

Adaptaflex Product Catalogue |
LIT211GB 0715
2
IP Rating
Appropriate Conduit
For use with:
Type PA / PI / PR / PADL / PF
IP40
Yes
IP65
Yes
IP68
Yes (4 bar 30mins)
IP69K
Yes
Type CS90 - Adaptalok ATS
™
90º Elbow Fitting - Swivel External Male Thread
/
For insertion into threaded entries & knockouts. Order locknuts separately
Materials:
Polyamide (Nylon) 66, Nickel Plated Brass Thread/TPE
Colour:
Black (BL), Grey (GR) / Yellow (Y), Blue (B) Elastomer
Nominal
Metric
Nominal
NPT
Part No.
Conduit Size Thread
Part No.
Conduit Size Thread
AT13/M16/CS90 13mm
M16
AT13/038/CS90
13mm
3/8”
AT16/M16/CS90 16mm
M16
AT16/038/CS90
16mm
3/8”
AT21/M20/CS90 21mm
M20
AT21/050/CS90
21mm
1/2”
AT28/M25/CS90 28mm
M25
AT28/075/CS90
28mm
3/4”
AT34/M32/CS90 34mm
M32
AT34/100/CS90
34mm
1”
AT42/M40/CS90 42mm
M40
AT42/125/CS90
42mm
1 1/4”
AT48/M50/CS90 48mm
M50
AT48/150/CS90
48mm
1 1/2”
AT54/M50/CS90 54mm
M50
AT54/150/CS90
54mm
1 1/2”
AT54/M63/CS90 54mm
M63
AT54/200/CS90
54mm
2”
To order quote part number, body colour & Elastomer colour, e.g. AT16/M16/CS90/BLB
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Fitting Characteristics
Type CS90
90º Elbow Fitting
IP Rating
Appropriate Conduit
For use with:
Type PA / PI / PR / PADL / PF
IP40
Yes
IP65
Yes
IP68
Yes (4 bar 30mins)
IP69K
Yes
Type SA - Adaptalok ATS
™
Straight Fitting - Metal Swivel External Male Thread
/
For insertion into threaded entries & knockouts. Order locknuts separately
Materials:
Polyamide (Nylon) 66, Nickel Plated Brass Thread/TPE
Colour:
Black (BL), Grey (GR) / Yellow (Y), Blue (B) Elastomer
Nominal
Metric
Nominal
NPT
Part No.
Conduit Size Thread
Part No.
Conduit Size Thread
AT13/M16/SA
13mm
M16
AT13/038/SA
13mm
3/8”
AT16/M16/SA
16mm
M16
AT16/038/SA
16mm
3/8”
AT21/M20/SA
21mm
M20
AT21/050/SA
21mm
1/2”
AT28/M25/SA
28mm
M25
AT28/075/SA
28mm
3/4”
AT34/M32/SA
34mm
M32
AT34/100/SA
34mm
1”
AT42/M40/SA
42mm
M40
AT42/125/SA
42mm
1 1/4”
AT48/M50/SA
48mm
M50
AT48/150/SA
48mm
1 1/2”
AT54/M50/SA
54mm
M50
AT54/150/SA
54mm
1 1/2”
AT54/M63/SA
54mm
M63
AT54/200/SA
54mm
2”
To order quote part number, body colour & Elastomer colour, e.g. AT16/M16/SA/BLB
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Fitting Characteristics
Type SA
Straight Fitting
Non-metallic conduit systems
Type SA & CS90 - Adaptalok ATS
™
Approvals
Blue Elastomer
Version Only
Approvals
Blue Elastomer
Version Only
