43 / 156
Adaptaflex Product Catalogue |
LIT211GB 0715
2/29
2
Non-metallic conduit systems

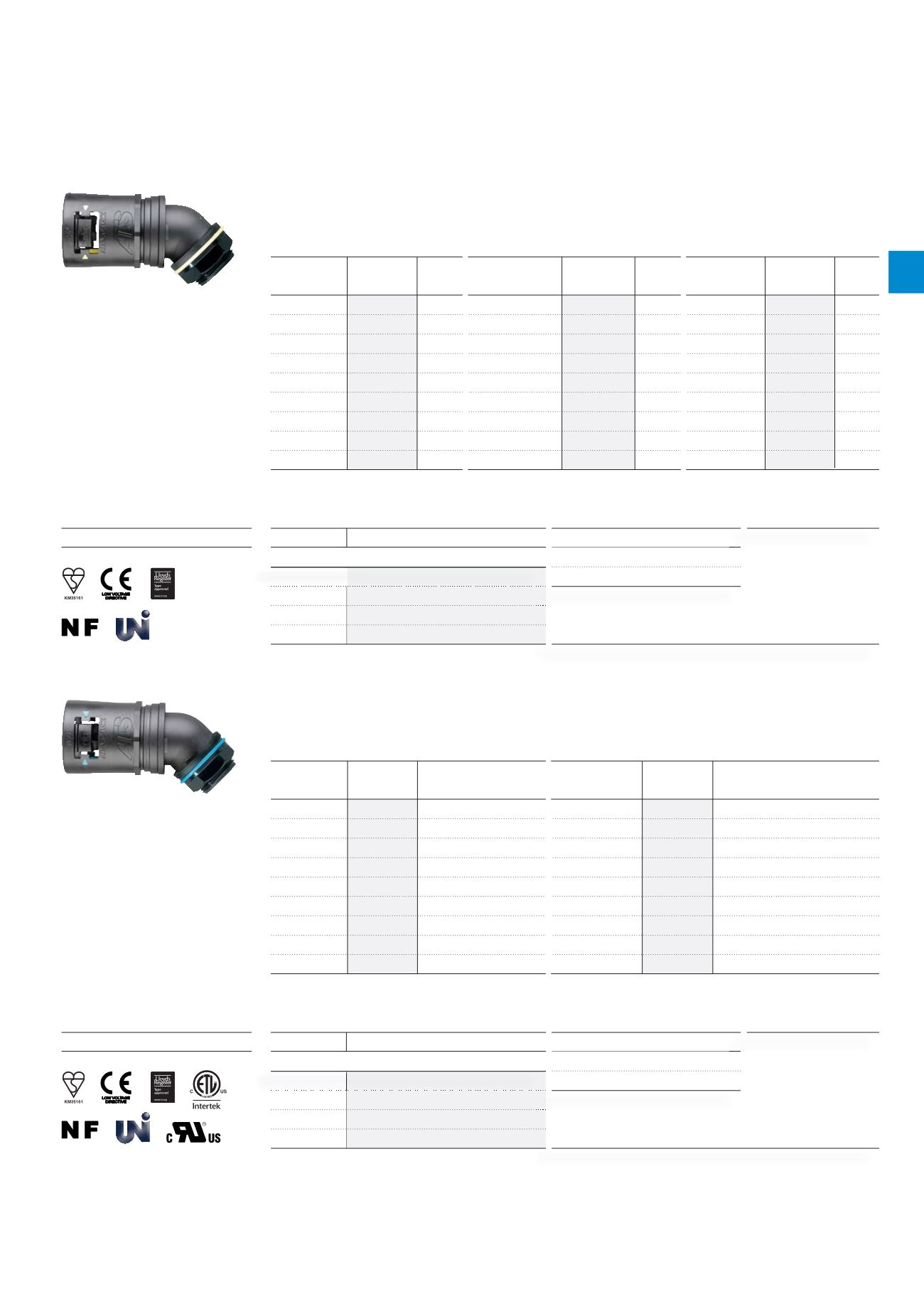

Type 45 - Adaptalok ATS
™
IP Rating
Appropriate Conduit
For use with:
Type PA / PI / PR / PADL / PF
IP40
Yes
IP65
Yes
IP68
Yes (4 bar 30mins)
IP69K
Yes
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Type 45
45º Elbow Fitting
IP Rating
Appropriate Conduit
For use with:
Type PA / PI / PR / PADL / PF
IP40
Yes
IP65
Yes
IP68
Yes (4 bar 30mins)
IP69K
Yes
Type 45 - Adaptalok ATS
™
45º Elbow Fitting - Fixed External Male Thread
/
For insertion into knockouts using a locknut. Locknut supplied with METRIC thread
Materials:
Polyamide (Nylon) 66/TPE /
Colour:
Black (BL), Grey (GR) / Blue (B) Elastomer
Nominal
Metric
Nominal
NPT
Part No.
Conduit Size Thread
Part No.
Conduit Size Thread
AT13/M16/45 13mm
M16
AT13/PF038/45
13mm
3/8”
AT16/M16/45 16mm
M16
AT16/PF038/45
16mm
3/8”
AT16/M20/45 16mm
M20
AT16/PF050/45
16mm
1/2”
AT21/M20/45 21mm
M20
AT21/PF050/45
21mm
1/2”
AT28/M25/45 28mm
M25
AT28/PF075/45
28mm
3/4”
AT34/M32/45 34mm
M32
AT34/PF100/45
34mm
1”
AT42/M40/45 42mm
M40
AT42/PF125/45
42mm
1 1/4”
AT48/M50/45 48mm
M50
AT48/PF150/45
48mm
1 1/2”
AT54/M50/45 54mm
M50
To order quote part number, body colour & Elastomer colour, e.g. AT54/M50/45/BLB
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Type 45
45º Elbow Fitting
Type 45 - Adaptalok ATS
™
45º Elbow Fitting - Fixed External Male Thread
/
For insertion into knockouts using a locknut. Locknut supplied with METRIC thread
Materials:
Polyamide (Nylon) 66/TPE /
Colour:
Black (BL), Grey (GR) / Yellow (Y) Elastomer
Nominal
Metric
Nominal
PF
Nominal
NPT
Part No.
Conduit Size Thread Part No.
Conduit Size Thread Part No.
Conduit Size Thread
AT13/M16/45 13mm
M16
AT13/PF038/45
13mm
3/8”
AT13/038/45
13mm
3/8”
AT16/M16/45 16mm
M16
AT16/PF038/45
16mm
3/8”
AT16/038/45
16mm
3/8”
AT16/M20/45 16mm
M20
AT16/PF050/45
16mm
1/2”
AT16/050/45
16mm
1/2”
AT21/M20/45 21mm
M20
AT21/PF050/45
21mm
1/2”
AT21/050/45
21mm
1/2”
AT28/M25/45 28mm
M25
AT28/PF075/45
28mm
3/4”
AT28/075/45
28mm
3/4”
AT34/M32/45 34mm
M32
AT34/PF100/45
34mm
1”
AT34/100/45
34mm
1”
AT42/M40/45 42mm
M40
AT42/PF125/45
42mm
1 1/4”
AT42/125/45
42mm
1 1/4”
AT48/M50/45 48mm
M50
AT48/PF150/45
48mm
1 1/2”
AT48/150/45
48mm
1 1/2”
AT54/M50/45 54mm
M50
To order quote part number, body colour & Elastomer colour, e.g. AT54/M50/45/BLY
Approvals
Approvals
