HAVELLS

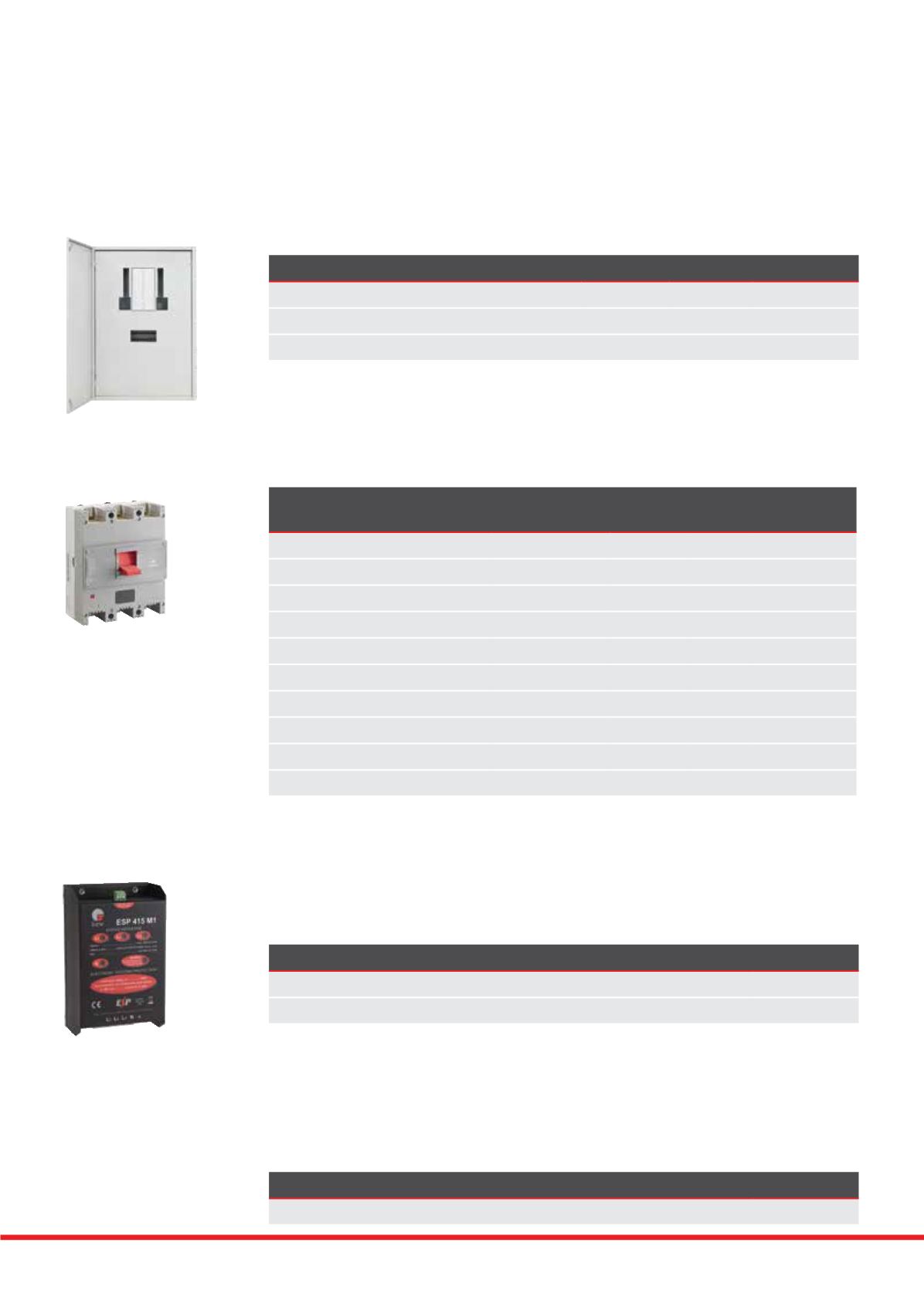

630A MCCB Panelboard
s )%#
s )CC K!
s )CW K! S s 0LATED BUSBARS
s /UTGOING DEVICES !n ! 30 !n ! 40
s )0 8 CONSTRUCTION
Description
Rating No. Ways Part No.
6 way MCCB panelboard
630A
4+2
PSPB636
8 way MCCB panelboard
630A
6+2
PSPB638
12 way MCCB panelboard
630A
10+2
PSPB6312
Incoming devices for 630A MCCB panelboard
Incoming Devices to be ordered separately. 4P options are supplied with additional neutral
link assembly.
Description
Breaking
capacity kA
Rating Poles Part No.
CH Frame Circuit breaker switch 50kA
320A
3
PSCH3320CB
CH Frame Circuit breaker switch 50kA
400A
3
PSCH3400CB
CH Frame Circuit breaker switch 50kA
630A
3
PSCH3630CB
CH Frame MCCB incomer
50kA
320A
3
PSCH3320MC
CH Frame MCCB incomer
50kA
400A
3
PSCH3400MC
CH Frame MCCB incomer
50kA
630A
3
PSCH3630MC
CH Frame MCCB incomer
50kA
400A
4
PSCH4400MC
CH Frame MCCB incomer
50kA
630A
4
PSCH4630MC
CH Frame Circuit breaker switch 50kA
400A
4
PSCH4400CB
CH Frame Circuit breaker switch 50kA
630A
4
PSCH4630CB
Cable Extension Box for 630A Panelboard
Extension boxes can be mounted top or bottom and can be stacked as necessary. Corner
filler boxes to fill gaps when both side extension boxes and top/bottom extension boxes are
fitted to MCCB panelboard.
Description
Part No.
Cable extention box 250mm high
PSPB63EXTB
Corner filler box
PSPBCFB
Surge Protection Kit for MCCB
A metered side extension box must be used to house surge protection kit. Surge Protection
kit requires TP 125A MCCB (ordered separately. Please refer to page 41). For further
information on surge protection, please refer to pages 52-55.
Description
Part No.
Surge Protection kit – Type 1, 2 and 3
PSPB6415M1
MCCB Panelboards
630A MCCB Panelboard
PSPB638
PSPB6415M1
PSCH3400CB
