Architectures
(
continued)
Redundant Server with Server Control Clients and Web View Only Clients
E.g. Redundant server, 1500 Points, with 2 Control Client licences on the servers and
2
Web View Only Client licences
Development workshop
b
1
x
VJC 1099 22
,
hardware delivery of the DVD with USB key (Primary Server key)
b
1
x
VJC 1099 21
,
additional USB key (Standby Server key)
(
rule: 1 key per Server)
Server licences
b
2
x
VJC NS 1011 13
,
Server licences for 1500 points, including Control Client
licences:
v
The first Server acts as the Primary Server
v
The second server acts as the Standby Server
v
One licence is placed on each key (Primary and Standby)
Client licences
b
2
x
VJC NS 1032 99
,
Web View Only Client licences
v
Both licences are placed on the Primary Server key
Redundant Client licence
b
2
x
VJC NS 1032 88
,
redundant Web View Only Client licences
v
Floating redundant licences for Web View Only Client licences
v
Both licences are placed on the Standby Server key
Redundant Alarm, Trend, Reports Servers (1500 points) and redundant I/O
Servers (1500 points) with 2 Control Clients and 2 Web View Only Clients
Development workshop
b
1
x
VJC 1099 22
,
hardware delivery of the DVD with USB key (Primary Server key)
b
3
x
VJC 1099 21
,
additional USB keys (one per Server) (Standby Server key)
Server licence
b
4
x
VJC NS 1011 13
,
Server licences for 1500 points, including Control Client
licence:
v
Two pairs of redundant Servers: one I/O Server redundant pair, one ATR Server
redundant pair
v
The first Server in each pair acts as the Primary Server
v
The second Server acts as the Standby Server
v
One licence is placed on each key (Primary and Standby)
Client licence
b
2
x
VJCNS 1032 99
,
Web View Only Client licences
v
Both licences are placed on the ATR Primary Server key
Redundant Client licence
b
2
x
VJCNS 1032 88
,
redundant Web View Only Client licences
v
Redundant floating licences for Web View Only Client licences
Redundant Servers (1500 points) with 2 Logical Server Clusters and 2 Web
View Only Clients
Development workshop
b
1
x
VJC 1099 22
,
hardware delivery of the DVD with USB key (Primary Server key)
b
1
x
VJC 1099 21
,
additional USB key (one per Server) (Standby Server key)
Server licence
b
2
x
VJC NS 1011 13
,
Server licences for 1500 points, including Control Client
licence:
v
One pair of redundant Servers, two clusters on each server
v
The first server contains Cluster A (ATR & I/O Server) and Cluster B (ATR & I/O
Server) Primary Servers
v
The second server contains Cluster A and Cluster B Standby Servers
v
One licence is placed on each key (Primary and Standby)
Client licence
b
2
x
VJCNS 1032 99
,
Web View Only Client licences
v
Both licences are placed on the ATR Primary Server key
Redundant Client licence
b
2
x
VJCNS 1032 88
,
Redundant Web View Only Client licences
v
Redundant floating licences for Web View Only Client licences
v
Both licences are placed on the ATR Standby Server key
Architectures
(
continued)

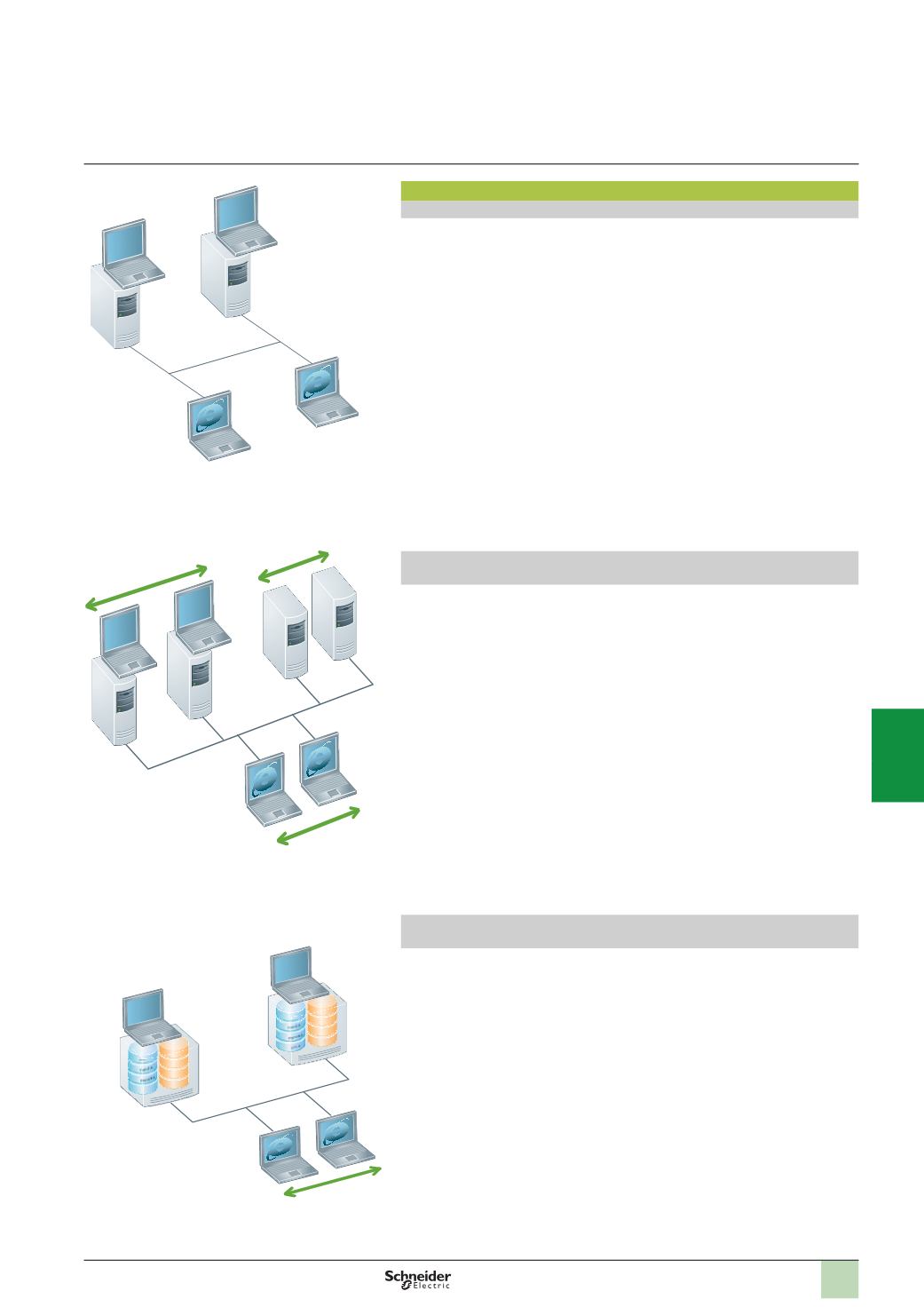

Redundant architecture with
2
Control Clients on servers and 2 Web View Only Clients
Software
Supervisory control and data acquisition
software (SCADA)
Vijeo Citect
Alarm, Trend & Reports
Servers
Redundant floating
licences
I/O Servers
Redundant architecture, separate ATR and I/O Servers,
with 2 Server Control Clients and 2 Web View Only Clients
Redundant floating
licences
AlarmB
TrendB
ReportB
I/OB
T ndA
portA
I/OA
AlarmA
Cluster A
Primary
Server
Cluster B
Primary
Server
AlarmB
TrendB
ReportB
I/OB
T ndA
portA
I/OA
AlarmA
Cluster A
Standby
Server
Cluster B
Standby
Server
Redundant architecture, 2 clusters with 2 Web View Only
Clients
