Installation of the current
transformer
Additional informations
Our circuit breakers have trip units with a
built-in ammeter
(see Micrologic
catalogue).
Their use eliminates the need for installing a CT on the busbars.
The CT casing
is a solution for installation of CTs up to 1600 A.
CTs can be installed in the casing (cat. no. 03506).
It is equipped with a frame made up of 2 uprights, adjustable in depth and 2 slotted
cross-members to fix the cables, install CTs or install a busbar support with 75 mm
spacing.
It is secured in the switchgear compartment of a 400 or 600 mm deep cubicle.
The 300 mm duct
allows easier mounting of CTs.
To install 2 CTs, downstream from a circuit-breaker for example, it is often easier to
use a 300 mm wide duct (cat. no. 08403 for 400 mm depth or cat. no. 08603 for
600 mm depth).
DD383909
PD391282

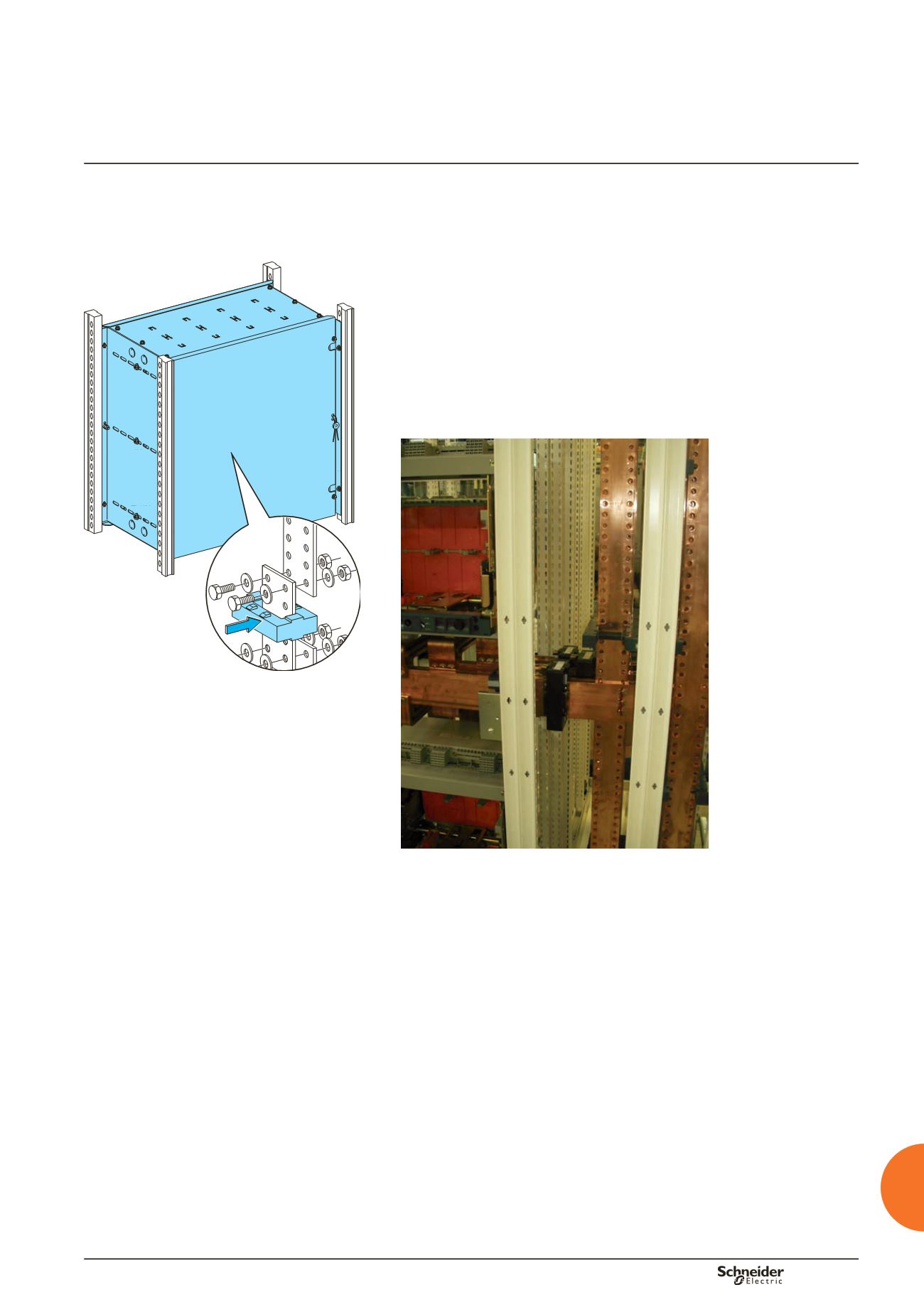

Sealable CT casing with current transformers on bolted
connections.
CT on circuit-breaker downstream connection busbars.
