D-6

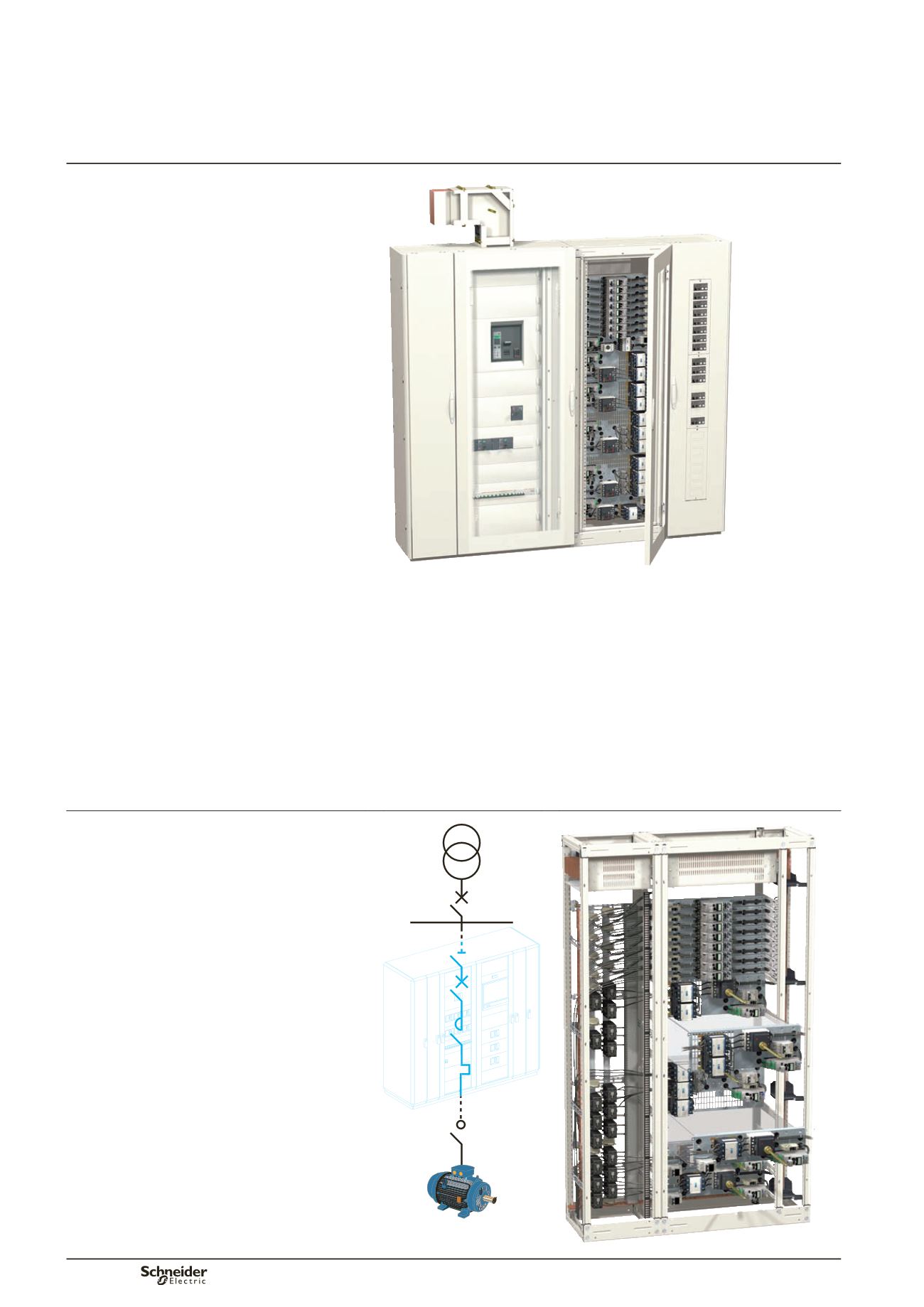

Fixed MCC switchboards
The Prisma Plus functional system can be used for
low-voltage MCC switchboards in commercial (IP30)
and industrial (IP55) environments.
It has been tested taking into account device
characteristics.
This ensures a high degree of reliability in system
operation and optimum safety.
Devices can be premounted on mounting plates on a
workbench to simplify installation in the switchboard.
The fixed functional system for Motor Control Centers
is designed for installation of motor feeders up
to 37 kW.
PB390423
For all information on:
motors
coordination
starting
motor-feeder solutions
products
mounting/wiring systems
doors with cut-outs, front plates
mechanical and electrical characteristics
selection guide
costing, ordering
contact your local Schneider Electric representative or check the special catalogue
(doc. no. DESW49FR).
For more information, visit our sites:
b
www.schneider-electric.comb
b
b
b
b
b
b
b
b
b
Motor Control Centers (MCC)
AMotor Control Center is a switchboard comprising a
group of motor feeders, each used to:
control a motor
protect personnel
protect all devices and equipment against electrical
faults.
The basic functions implemented to achieve these
objectives are:
disconnection to isolate the motor feeder from the
main power supply, generally associated with an
emergency-off switch
protection against short-circuits to avoid equipment
damage
power control to allow on-load making and breaking
of the electric current
thermal protection to prevent overheating.
Isolation is a complementary function that allows work
to be carried out safely on the motor. This function is
generally implemented near the motor.
b
b
b
b
b
b
b
DD383427
PB391232
