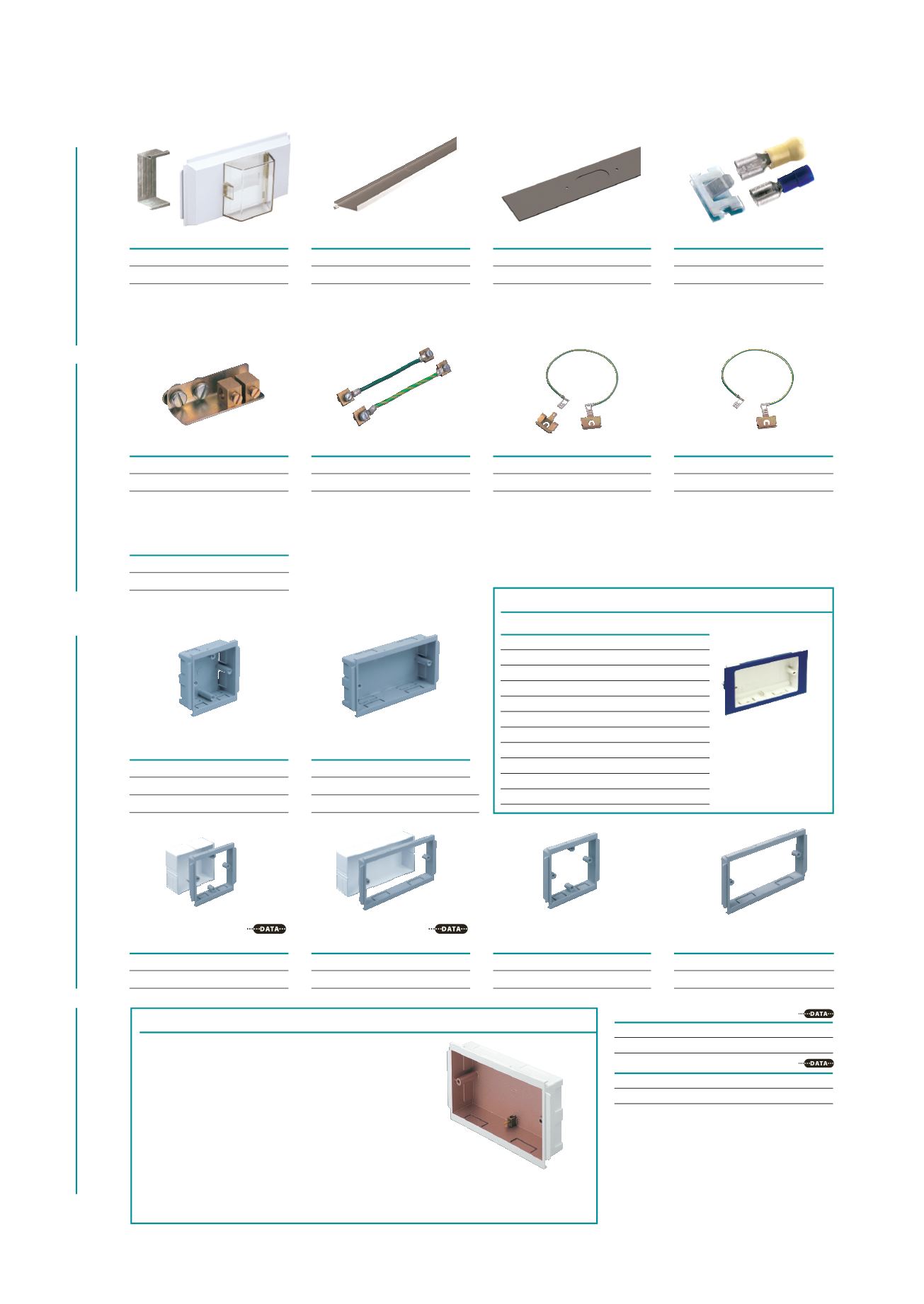

Elegance Aluminium Trunking Systems

Bonding terminal assembly Bonding strap Bonding strap End cap bonding strap

code description pack code description pack code description pack code pack

LBT1

incoming 16mm² 5

LBS1

base to base 32Amp 5

LBS2

cover to base 5

LBS5

Coupler Pin

code description pack

LDP1

ø2.5 x 20mm 10

1 gang adjustable 2 gang adjustable 1 gang accessory plate

2 gang accessory plate

depth box depth box

code depth pack code depth pack code pack

code pack

EAB1SG

32 – 40mm 1

EAB2SG

32 – 40mm 1

ESSP1SG

ESSP2SG

Components and Accessories

Components

Bonding assembliess

1 gang accessory box 2 gang accessory box

30mm deep 30mm deep

code description pack code description pack

ESSB1SG

ABS 1

ESSB2SG

ABS 1

ESSB401WH

polycarbonate 1

ESSB402WH

polycarbonate 1

Boxes and plates

Screened boxes

1 gang screened accessory box

code depth description pack

ESSB1SWH*

30mm PVC-U 20

2 gang screened accessory box

code depth description pack

ESSB2SWH*

30mm PVC-U 10

*Supplied complete with earth terminal

RCD/MCB Housing Dividing fillet Dividing fillet (pre-punched) Earth bonding kit

code pack code description pack code length pack code pack

EAHC1MWH

LDF1

unscreened 8 x 3m

LP1005

1.45m 1

LBT3

Up to 4 modules can

be accommodated

Note:

RCDs and MCBs are not

supplied by Marshall-Tufflex.

Part M box assembly

code description pack

ESPM1BU

1 gang - blue plate 1

ESPM1CH

1 gang - charcoal plate 1

ESPM1RD

1 gang - red plate 1

ESPM1GN

1 gang - green plate 1

ESPM1LG

1 gang - light grey plate 1

ESPM2BU

2 gang - blue plate 1

ESPM2CH

2 gang - charcoal plate 1

ESPM2RD

2 gang - red plate 1

ESPM2GN

2 gang - green plate 1

ESPM2LG

2 gang - light grey plate 1

Screening

Conductive spray (CS) is unique to Marshall-Tufflex

and is applied in the factory to provide screening

from electromagnetic interference to data and

communications cabling within trunking systems.

The coating is applied to a range of data boxes,

covers, clip-on components and fabricated fittings.

WARNING:

A CS coating is not suitable for low

voltage circuits.

Note: These products will be subject to minimum quantity orders,

longer lead times and set up charges. For more information or a quotation,

please contact the Technical Team on 01424 856688.

Part M

This product is for use with the

Elegance 110 system only.

Note:

In order to sub-divide

Elegance 170, the above LP1005

dividing fillets should be used

This product is for use with the

Elegance 110 system only.

To aid alignment of base profiles

This product is for use with the

Elegance 110 system only.

Note:

Fastons supplied suit

1.5mm to 2.5mm cable (blue)

and 4.0mm to 6.0mm (yellow).

1 and 2 gang

box assemblies

are available to

comply with the

requirements of

Part M (DDA
