GRP LADDER AND TRAY SYSTEMS
GRP ladder and tray systems
See
page 54
for quick
reference
chart
Standard span pressed tray
| 51
Reduced use of bolts
GRP is a non-conductive material
with excellent fire performance
and high corrosion resistance
Non-perforated
pressed tray
code
size
pack
KK5050
50 x 50mm 1
KK10050
100 x 50mm 1
KK15050
150 x 50mm 1
KK20050
200 x 50mm 1
KK30050
300 x 50mm 1
KK10080
100 x 80mm 1
KK15080
150 x 80mm 1
KK20080
200 x 80mm 1
KK30080
300 x 80mm 1
KK40080
400 x 80mm 1
Tray cover clip
code
size
pack
DF50
50mm 1
DF80
80mm 1

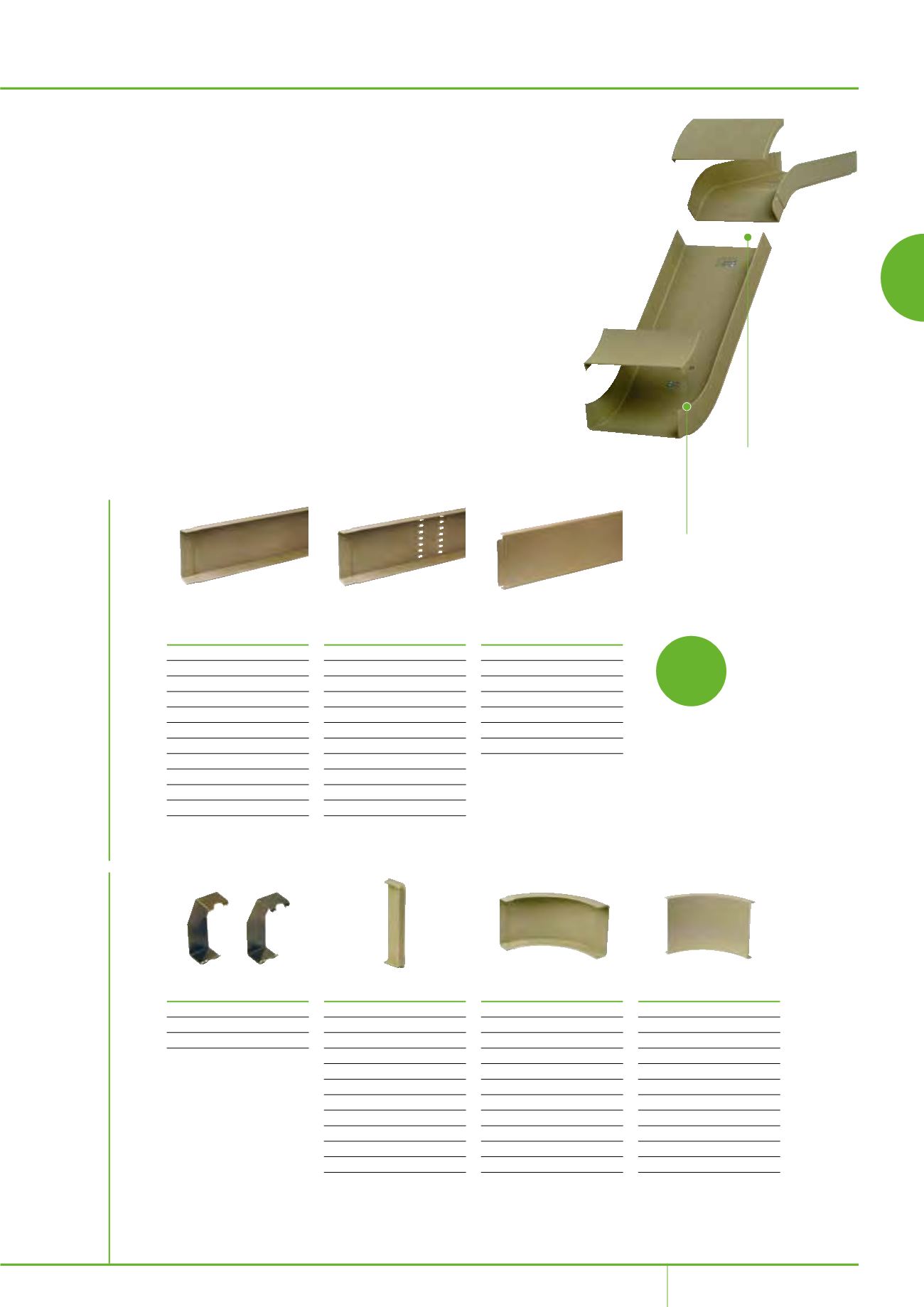

Perforated pressed tray
code
size
pack
KKL5050
50 x 50mm 1
KKL10050
100 x 50mm 1
KKL15050
150 x 50mm 1
KKL20050
200 x 50mm 1
KKL30050
300 x 50mm 1
KKL10080
100 x 80mm 1
KKL15080
150 x 80mm 1
KKL20080
200 x 80mm 1
KKL30080
300 x 80mm 1
KKL40080
400 x 80mm 1
Tray end cap
code
size
pack
KKKE5050
50 x 50mm 1
KKKE10050
100 x 50mm 1
KKKE15050
150 x 50mm 1
KKKE20050
200 x 50mm 1
KKKE30050
300 x 50mm 1
KKKE10080
100 x 80mm 1
KKKE15080
150 x 80mm 1
KKKE20080
200 x 80mm 1
KKKE30080
300 x 80mm 1
KKKE40080
400 x 80mm 1
Tray internal bend base
code
size
pack
KKBI5050
50 x 50mm 1
KKBI10050
100 x 50mm 1
KKBI15050
150 x 50mm 1
KKBI20050
200 x 50mm 1
KKBI30050
300 x 50mm 1
KKBI10080
100 x 80mm 1
KKBI15080
150 x 80mm 1
KKBI20080
200 x 80mm 1
KKBI30080
300 x 80mm 1
KKBI40080
400 x 80mm 1
Tray internal bend cover
code
size
pack
KKBID5050
50 x 50mm 1
KKBID10050
100 x 50mm 1
KKBID15050
150 x 50mm 1
KKBID20050
200 x 50mm 1
KKBID30050
300 x 50mm 1
KKBID10080
100 x 80mm 1
KKBID15080
150 x 80mm 1
KKBID20080
200 x 80mm 1
KKBID30080
300 x 80mm 1
KKBID40080
400 x 80mm 1
Tray cover
code
size
pack
KKD50
50 x 50mm 1
KKD100
100 x 50/80mm 1
KKD150
150 x 50/80mm 1
KKD200
200 x 50/80mm 1
KKD300
300 x 50/80mm 1
KKD400
400 x 80mm 1
Basic components
Fittings
Product information
•
A variety of sizes from 50 x 50mm to 400 x 80mm
•
40% lighter than steel
•
Completely corrosion resistant against salt spray, H25, acid build up
from exhaust gases and brake dust along roads and railways
•
No need for painting or protective coating
•
Classified LSOH material
•
Self-extinguishing
•
Low conductivity
•
Earthing not required
•
Antimagnetic and resistant to electromagnetic pulses
•
Effective at temperatures between -80˚C to +130˚C.
•
Lower life cycle cost
•
Fast installation with fewer fasteners
•
Easy to cut and drill
•
Load characteristics in accordance with IEC 61537 (for load or other
calculations and values, please refer to the technical section).
GRP standard span cable tray (1.5m) and fittings are pressed from glass
reinforced polyester resin, using hot moulding technology and facilitating the
manufacture of smooth intricate shapes. The system is ideal for installation into
tunnels, bridges, railways, underground, offshore and marine environments.
