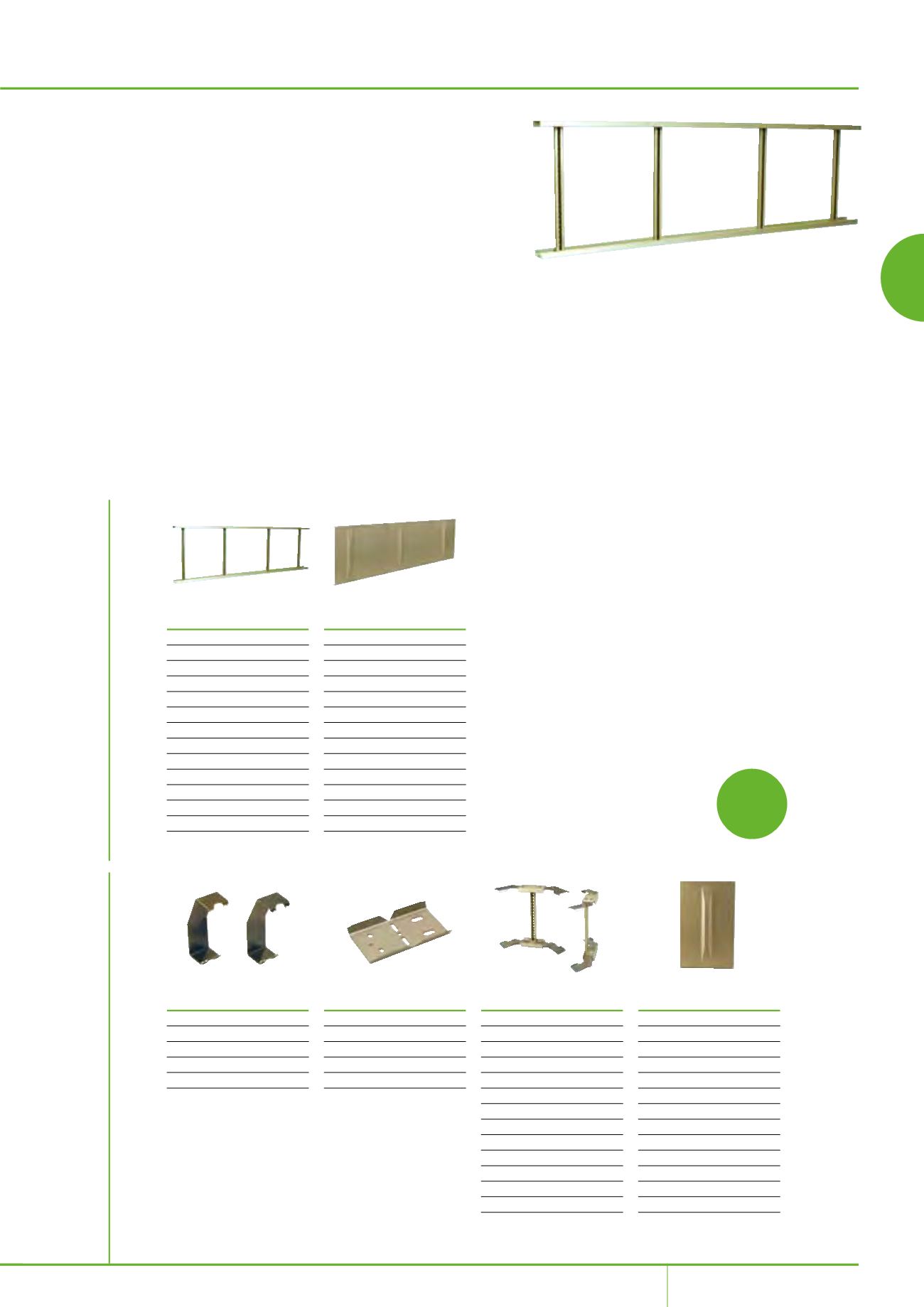

GRP LADDER AND TRAY SYSTEMS
GRP ladder and tray systems
See
page 59
for quick
reference
chart
Pultruded ladder
| 57
Ladder
code
size
pack
UL200053
200 x 53mm 1
UL20080
200 x 80mm 1
UL150100
150 x 100mm 1
UL300100
300 x 100mm 1
UL400100
400 x 100mm 1
UL600100
600 x 100mm 1
UL900100
900 x 100mm 1
UL150150
150 x 150mm 1
UL300150
300 x 150mm 1
UL400150
400 x 150mm 1
UL600150
600 x 150mm 1
UL900150
900 x 150mm 1
Ladder cover clip
code
pack
DF50
1
DF80
1
DF100
1
DF150
1
Ladder cover
code
size
pack
KKD200
200 x 53mm 1
KKD200
200 x 80mm 1
KKD150
150 x 100mm 1
KKD300
300 x 100mm 1
KKD400
400 x 100mm 1
KKD600
600 x 100mm 1
KKD900
900 x 100mm 1
KKD150
150 x 150mm 1
KKD300
300 x 150mm 1
KKD400
400 x 150mm 1
KKD600
600 x 150mm 1
KKD900
900 x 150mm 1
Ladder horizontal coupler *
(Set of 2 pieces)
code
pack
ULIH53
1
ULIH80
1
ULIH100
1
ULIH150
1
Ladder int/ext angle base
code
size
pack
ULBA20053
200 x 53mm 1
ULBA20080
200 x 80mm 1
ULBA150100
150 x 100mm 1
ULBA300100
300 x 100mm 1
ULBA400100
400 x 100mm 1
ULBA600100
600 x 100mm 1
ULBA900100
900 x 100mm 1
ULBA150150
150 x 150mm 1
ULBA300150
300 x 150mm 1
ULBA400150
400 x 150mm 1
ULBA600150
600 x 150mm 1
ULBA900150
900 x 150mm 1
Ladder int/ext angle cover
code
size
pack
ULBAD20053
200 x 53mm 1
ULBAD20080
200 x 80mm 1
ULBAD150100
150 x 100mm 1
ULBAD300100
300 x 100mm 1
ULBAD400100
400 x 100mm 1
ULBAD600100
600 x 100mm 1
ULBAD900100
900 x 100mm 1
ULBAD150150
150 x 150mm 1
ULBAD300150
300 x 150mm 1
ULBAD400150
400 x 150mm 1
ULBAD600150
600 x 150mm 1
ULBAD900150
900 x 150mm 1
Basic components
Fittings
Product information
•
A variety of sizes from 200 x 53mm to 900 x 150mm
•
40% lighter than steel
•
Completely corrosion resistant against salt spray, H25, acid build up from exhaust
gases and brake dust along roads and railways
•
No need for painting or protective coating
•
Classified LSOH material
•
Self-extinguishing
•
Low conductivity
•
Earthing not required
•
Antimagnetic and resistant to electromagnetic pulses
•
Effective at temperatures between -80˚C to +130˚C.
•
Lower life cycle cost
•
Fast installation with fewer fasteners
•
Easy to cut and drill
•
Load characteristics in accordance with IEC 61537
(for load or other calculations and values, please refer to the technical section).
GRP pultruded ladders are manufactured by pultrusion,
a process using layers of mats and rovings injected with
resin and pulled through a die in a continuous operation.
The system is ideal for installation into tunnels, bridges,
railways, underground, offshore and marine environments.
*
Foldable splice plate requires
4 x M616V4ADOM
