365 / 430
J201
J601
J701/TB
Sales Service Centre • 01952 675612 Technical Support Helpline • 01952 675689
8.3

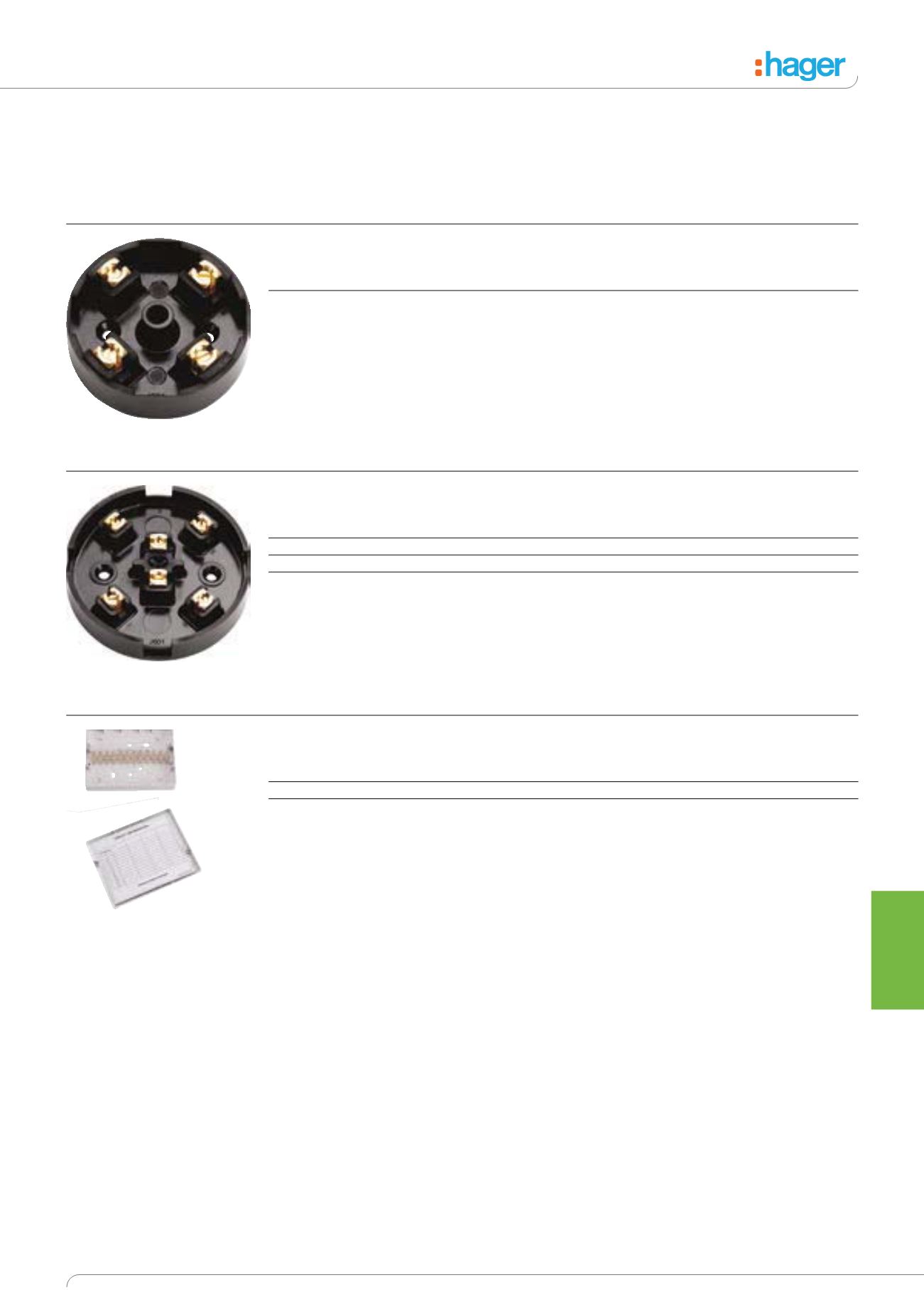

Traditional Junction Boxes
• Complies with
BS EN 60670-22.
• Slot terminals are ideal for
taking spurs off uncut ring or
loop circuit cables.
• Solid machined brass
terminals.
• Junction box covers secured
by single centre screws
(apart from J701 which has
two screws).
• J701 and J701/TB
junction / adaptable box will
accept 16mm x 16mm and /or
16mm x 25mm mini-trunking.
• Junction box selection chart
see page 8.7.
Knockout Slot Terminal Junction Box
Description
Dimensions
Fixing
Terminal
Pack qty.
Cat ref.
dia x h (mm)
centres (mm) capacity (mm
2
)
20 Amp, 4 Terminal, Brown
59 x 25
50.8
3 x 1.5
10
J201
Selective Entry Slot Terminal Junction Boxes
Description
Dimensions
Fixing
Terminal
Pack qty.
Cat ref.
dia x h (mm)
centres (mm) capacity (mm
2
)
20 Amp, 4 Terminal, Brown
79 x 26
50.8
3 x 1.5
10
J301
30 Amp, 3 Terminal, Brown
89 x 32
50.8
4 x 2.5
10
J401
20 Amp, 6 Terminal, Brown
89 x 26
50.8
3 x 1.5
10
J601
Junction / Adaptable Box
Description
Dimensions
Terminal
Pack qty.
Cat ref.
h x w x d (mm)
capacity (mm
2
)
No terminals
122 x 156 x 32
-
10
J701
With terminal block, cable ties,
122 x 156 x 32
4 x 1.5
10
J701/TB
and related wiring card
Junction Boxes
& Ceiling
Accessories
