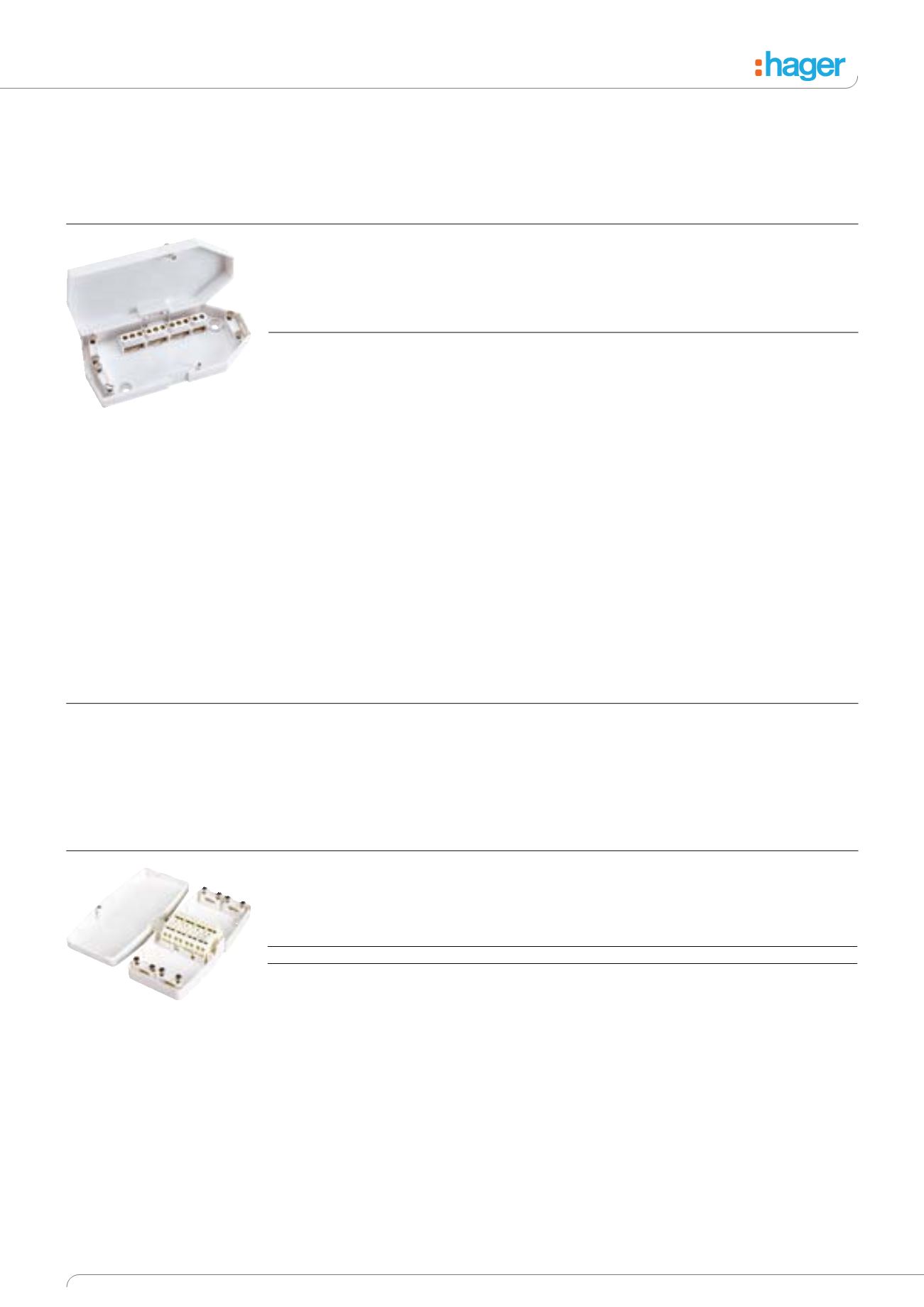

General Catalogue • Junction Boxes & Ceiling Accessories 8.2
Maintenance Free Junction Boxes
Downlighter Junction Box
Maintenance Free Junction Box
Junction box complete with incoming and outgoing cable clamps.
Current Rating Dimensions Terminal capacity Pack Cat Ref.
h x w x d (mm) (mm2) qty.
32 Amp - 3 Terminals 140 x 65 x 30 3 x 4 x (0.5-4.0) 10 J803
20 Amp - 4 Terminals 140 x 65 x 30 4 x 4 x (0.5-4.0) 10 J804
• Comply with
BS EN 60670-22.
• Suitable for use in
‘inaccessible’ areas.
• Spring fit terminals do not
relax over time.
• Four separate cable
terminations per connector.
• Junction box selection chart
see page 8.7.
Downlighter Junction Box
Junction box complete with incoming and outgoing cable clamps. Three plate terminals with separate
terminals for flexible cords.
Current Rating Dimensions Terminal capacity Pack Cat Ref.
h x w x d (mm) (mm2 ) qty.
16 Amp 122 x 53 x 27 3 x 3 x 1.5mm2 10 J501
1 x 2 x 1.5mm2
• Complies with
BS EN 60670-22.
• Fits through a 58mm diameter
hole.
• Cable clamps to prevent strain
on terminations.
• 3 plate terminal style with
captive terminal screws.
• Separate terminals for flexible
cords.
• Junction box selection chart
see page 8.7.
