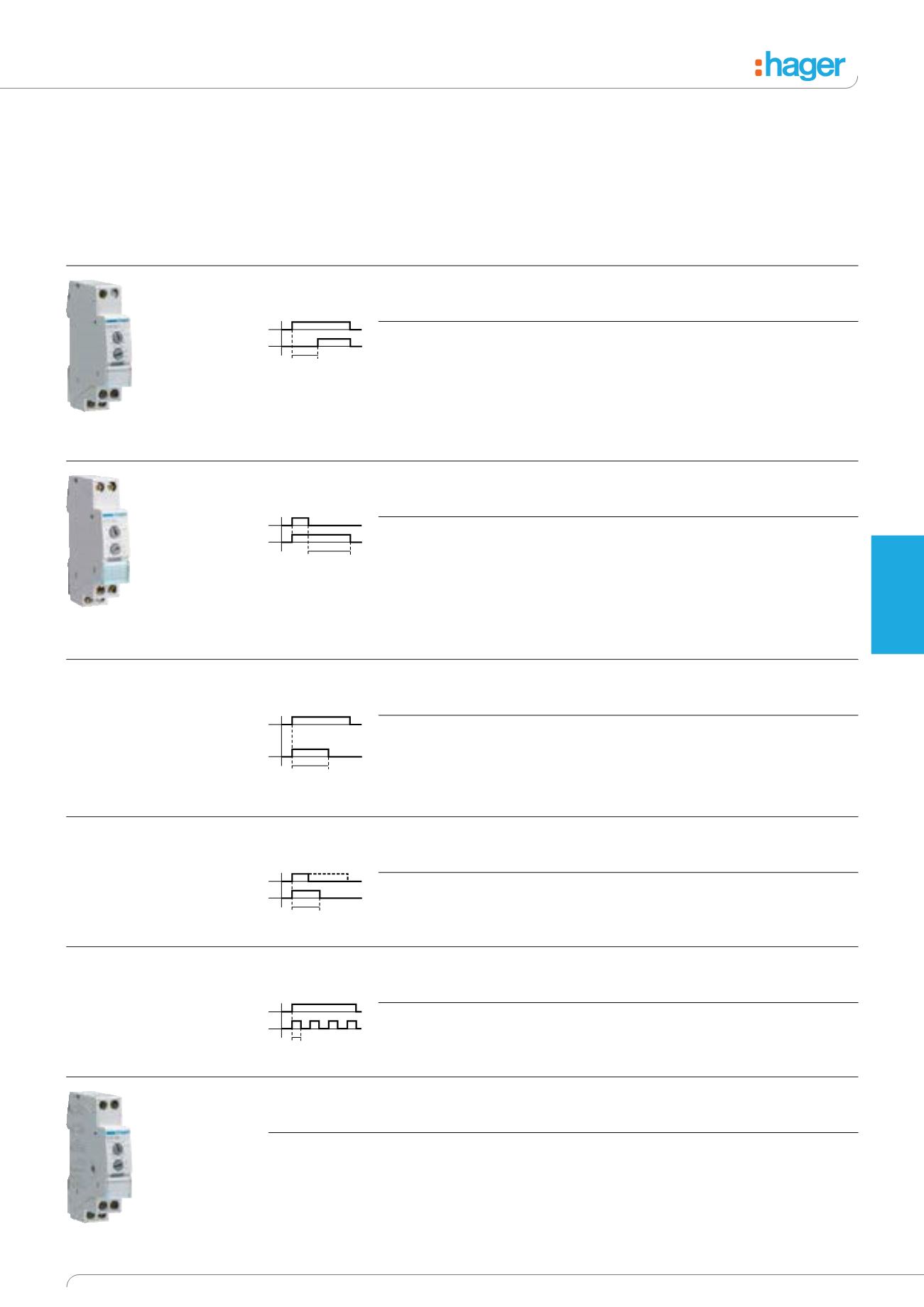

Delay Timers
Timer
Characteristics Width Cat ref.
1 changeover contact 1 Mod EZN004
10A / 230V~ AC1
Time delay T:0.1s to 10hr
Adjustable Time On
Characteristics Width Cat ref.
1 changeover contact 1 Mod EZN003
10A / 230V~ AC1
Time delay T:0.1s to 10hr
Delay Off
Characteristics Width Cat ref.
1 changeover contact 1 Mod EZN002
10A / 230V~ AC1
Time delay T:0.1s to 10hr
Description
To provide all types of automatic
control i.e. lighting, ventilation,
watering, machine pre-heating,
automatic door and visual
audible indication, cycle control
etc. with automatic switch off
after preset time.
Applications
For timing and automation in
domestic and commercial
premises. The input signal can
be via various switching devices
(pushbutton, latching switch,
timeclock etc.) and the timed
output used to control the
application.
Technical Data
Voltage range:
12 to 48V DC
12 to 230V AC
Adjustable: Time delay from 0.1s
to 10hrs.
Complies with BS EN 60669-2-1
Terminal Capacity
6mm2 max flexible
1.5 - 10mm2 rigid
1 Mod = 17.5mm
Delay On
Characteristics Width Cat ref.
1 changeover contact 1 Mod EZN001
10A / 230V~ AC1
Time delay T:0.1s to 10hr T
S
Cde
T
S
Cde
T
S
Cde
T
S
Cde
T
S
Cde
Symmetrical Flasher
Characteristics Width Cat ref.
1 changeover contact 1 Mod EZN005
10A / 230V~ AC1
Time delay T:0.1s to 10hr
Multifunction
Characteristics Functions Width Cat ref.
1 changeover contact Delay On, Delay Off, Adjustable 1 Mod EZN006
10A / 230V~ AC1 Time On, Adjustable Time Off,
Time delay T:0.1s to 10hr Timer, Symmetrical Flasher (On,
Off)
EZN001
EZN002
EZN006
