General Catalogue • Commercial Distribution • Technical
Enclosed MCCBs

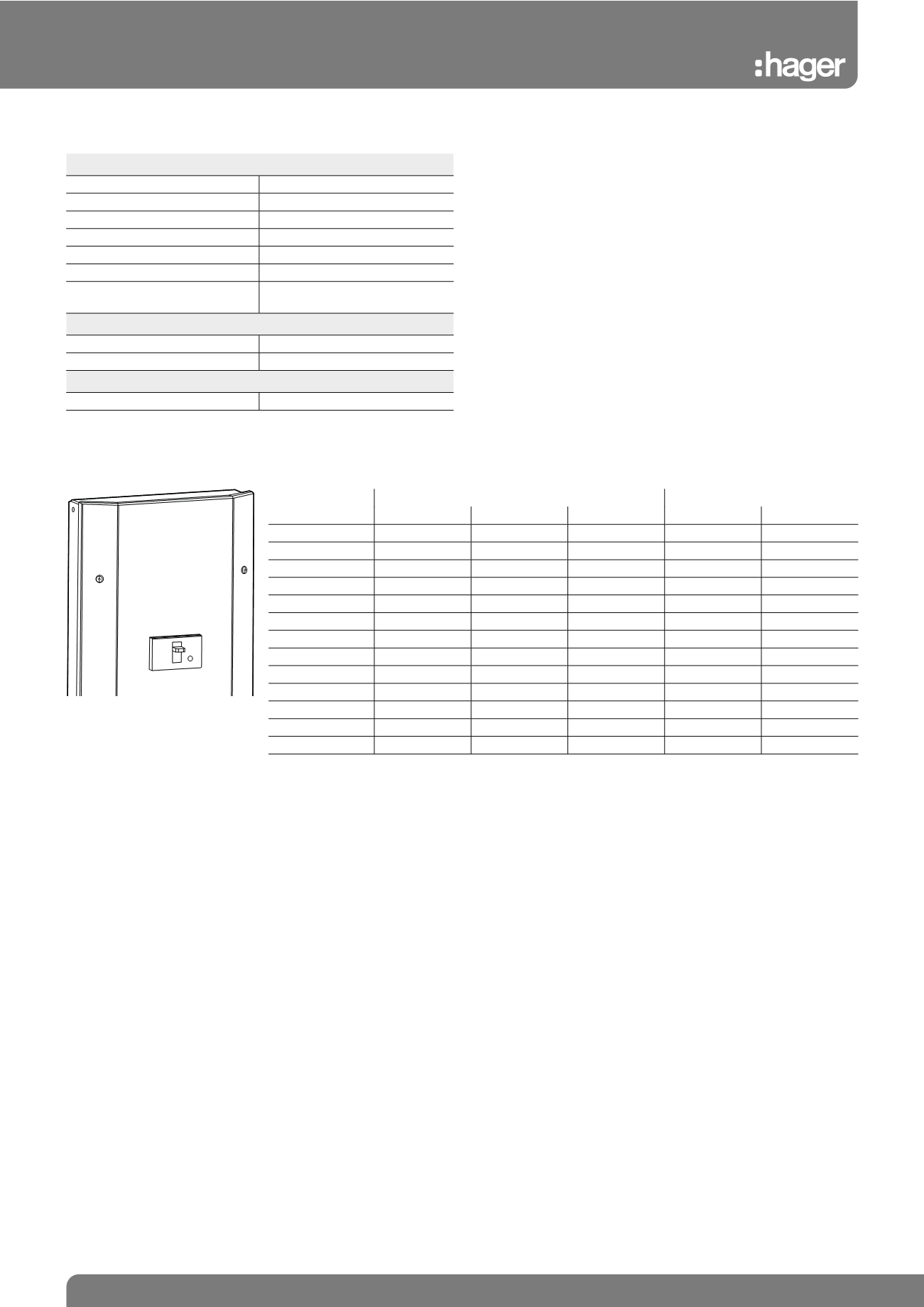

Enclosed MCCB (63A - 125A)
Characteristics
Series
JG**
MCCB
63A to 125A MCCB
MCCB + RCCB Add on block 63A & 100A
Voltage rating in AC
240 / 415 V
IP Protection
IP3X
Enclosure body type
Steel
Enclosure paint type
Powder coat Grey white BS 4800
00A01
Terminal Connection capacity
maximum terminal capacity
95mm2
Enclosure earth stud
M8
Installation
Mounting
Wall
Dimensions (mm)
Fixing centres
Height
Depth
Width
D
E
JG25BM
420
106
200
100
249
JG26BM
420
106
200
100
249
JG27BM
420
106
200
100
249
JG27BR
420
106
300
200
249
JG28BM
420
106
200
100
249
JG29BM
420
106
200
100
249
JG30BM
420
106
200
100
249
JG31BM
420
106
200
100
249
JG32BM
420
106
200
100
249
JG33BM
420
106
200
100
249
JG30BR
420
106
300
200
249
JG34BS
420
106
200
100
249
JG35BS
420
106
200
100
249
