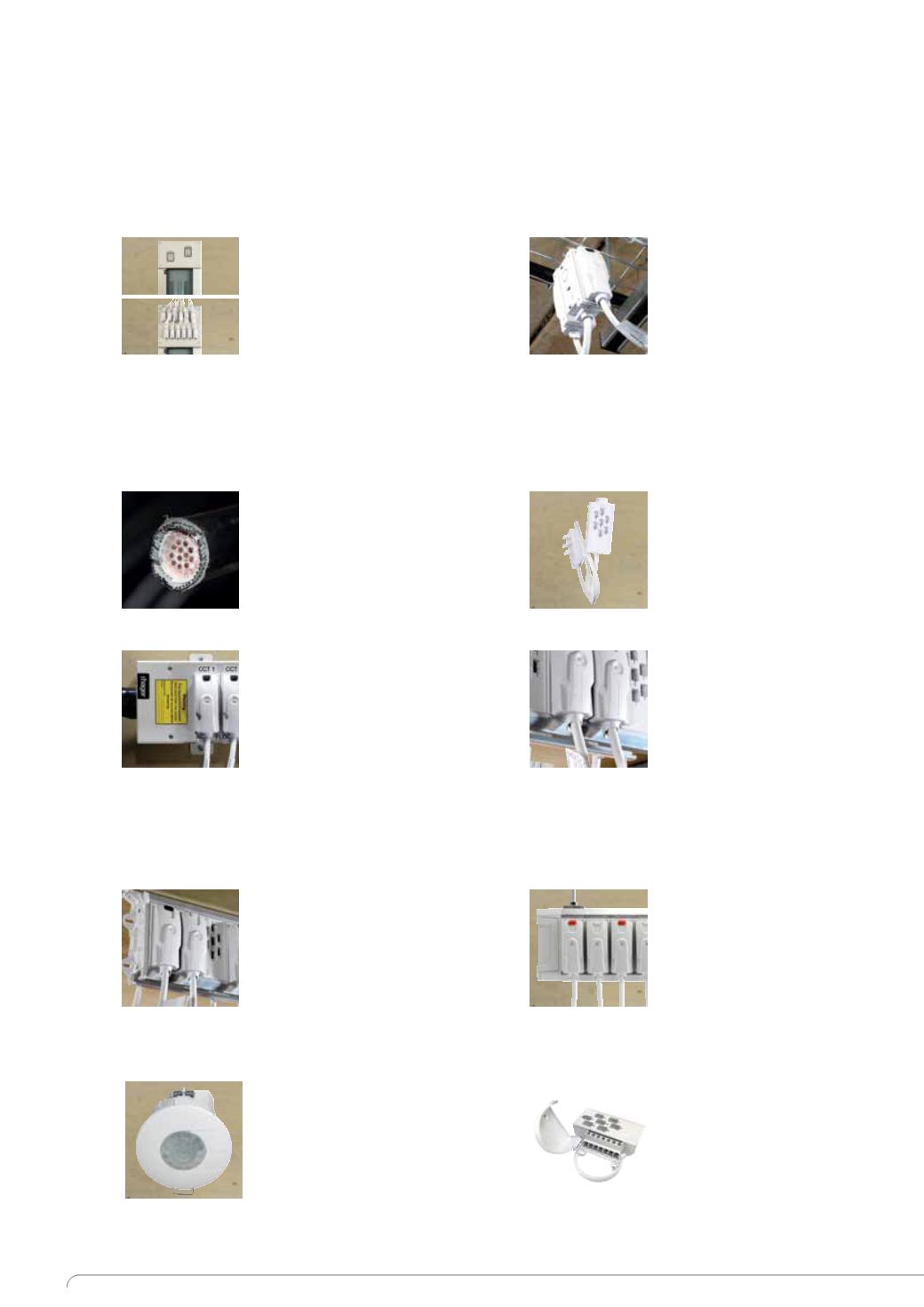

Switch Blocks
A connection unit to enable two way
switching.
Pluggable Distribution
Board
Hager distribution board to suit
requirements of the installation. The
distribution board will be populated
with protection devices as per the
design and pre-wired to a multi-pole
socket.
• Factory tested assembly
• Complete with internal
connections
• BS EN 60439-3
• Short circuit tested:10kA
conditional rating
Home Run
A Factory made multiple circuit
distribution cable connected to the
ADB.
• Fed with 27-core 4mm
2
SWA
• BS 6724 Cable
• BS EN 61984 Plug
Area Distribution Box
(ADB)
A pluggable outgoing connection
unit from which cables distribute to
feed final circuits.
• 9 circuits from distribution boards
• Fed with 27-core 4mm
2
SWA
• BS 6724 Cable
• BS EN 61984 Plug
• BS EN 61439-2 Enclosure
• Short circuit tested:
10kA conditional rating
Lighting Marshalling Box
(LMB/LDU)
A pluggable connection unit from
which individual light fittings are fed.
• Pluggable supply
• 5, 7, 9, 11 Outgoing Ways
• 16A rated
• BS 5733:2010
• Short circuit tested:
1500A conditional rating
Sensors
Plug in presence detectors to suit
control requirements.
Tee Piece
In line connection unit to allow daisy
chaining.
• Wired, Pluggable and Direct
Connect to Luminaire
• Standard, Digital and Emergency
Luminaire
• BS 5733:2010
• BS EN 61535
• Short circuit tested:
1500A conditional rating
Luminaire Lead
• Wired or Pluggable to Luminaire
• Standard, Digital and Emergency
Luminaire
• Up to 16A rated
• BS 5733:2010
• BS EN 61535
• Short circuit tested:
1500A conditional rating
Hardwire Marshalling Box
• 7 Pole
• 4, 6, 8, 10, 12 Outlet
• 16A Rated
• BS 5733:2010
• Short circuit tested: 1500A
conditional rating
Conduit Box / Surface
Connector
• 7 Pole,
• 16A Rated,
• Standards: BS 5733:2010
• Short circuit tested:
1500A conditional rating
