General Catalogue • tebis.KNX
tebis.KNX
Output Products - Lighting and Heating
These products serve as output
interfaces for the tebis system.
They ensure the control of the
electrical devices by taking
commands transmitted by the
input products.
Lighting output products allow
control of all types of devices by
On/Off control or dimming.
Without modifying the wiring, it is
possible to achieve:
• On, Off or dimming controls in
individual and grouped or
general controls
• Functions such as time
delays, priority settings, scene
selection or multi-applications.
All the output modules are
equipped with output status
display and with a manual
override setting on front of the
product.
For control of:
• Lighting
• Heating
• Power outlets
• Any load controlled by a
simple contact
Note: Refer to technical
information for de-rating for
alternative load types.
For technical details see page
6.32.
Lighting and Heating
Functions:
• ON / OFF & ON / OFF Override
• LED indication of each output state
• High end timer function
• Full quick connect connections
• Full symmetrical top down cross through connections
• Large front labelling
• Local on device hand override, permanent or time limited
Description
N o of Volt-
Supply (twisted pair)
Width (mm)
Cat ref.
Free Contacts
16A AC1
4
Bus 30V DC 4 Mod
TXA204C
4A AC1
6
Bus 30V DC 4 Mod
TXA206A
10A AC1
6
Bus 30V DC 4 Mod
TXA206B
16A AC1
6
Bus 30V DC 4 Mod
TXA206C
16A AC1 / 1500W - 140µF
6
Bus 30V DC 4 Mod
TXA206D
adapted for parallel compensated
fluorescent tubes
16A AC1
10
Bus 30V DC 6 Mod
TXA207C

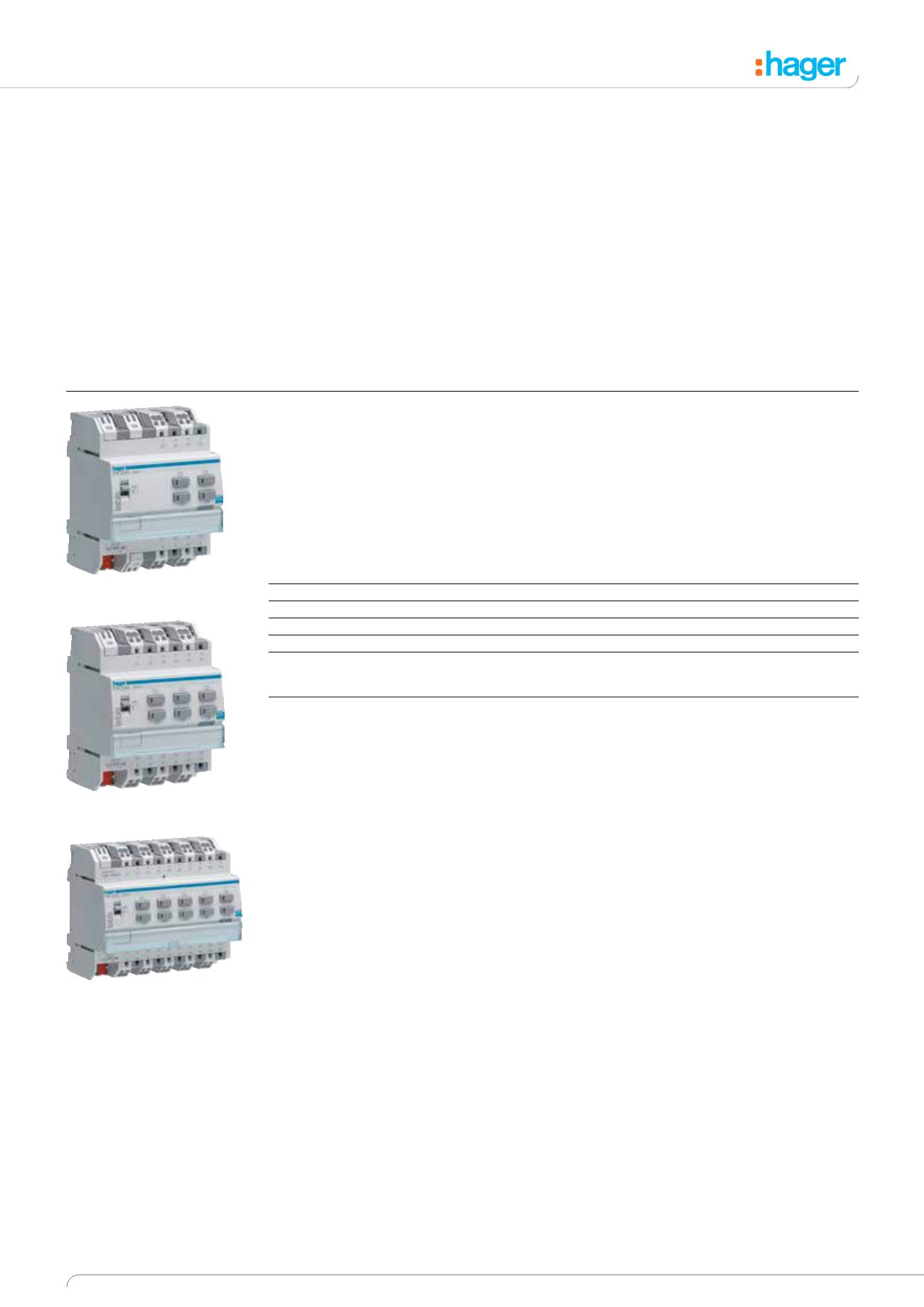

TXA204C
TXA206D
TXA207C
