6.5
tebis.KNX
Input Products - Room Controllers
The room controller is a versatile
device that groups 4 push
buttons and an LCD display for
information.
4 Pushbuttons
The four sides of the product act
as a push button (touch
sensitive keys) for ON/OFF
controls, Up/Down, Scene
selection, etc All the 4 keys are
freely and independently
programmable.
Visual symbols can be selected
on the display for clear
identification of the function /
control associated with each key.
Display
This device can indicate the
state of other input devices such
as pushbuttons that are
connected to the bus.
Examples: On/Off state, lighting
signal delivered by a light
sensitive switch, outside-inside
temperature, alarm, etc.
The data can be displayed by
symbols that can be selected
from an in-built library or by plain
text.
Display Arrangement
It includes:
• Central part allows 4
separate lines of text to be
displayed
• 4 external zones
corresponding to the four keys
to identify the control
associated with each key.
Other Functions
• Ambient temperature
measurement,
• Display of hour and date,
• Alarm clock function (4 alarm
tones)
• Back-lit display - activated
by pushing any button or
alarm clock deactivated
automatically after adjustable
time delay.
Assembly and Installation
assembled with a standard flush
mounting box of. Programming
is achieved by using the
configuration device TX100GB
via media coupler or by ETS
software.
For technical details see page
6.28.

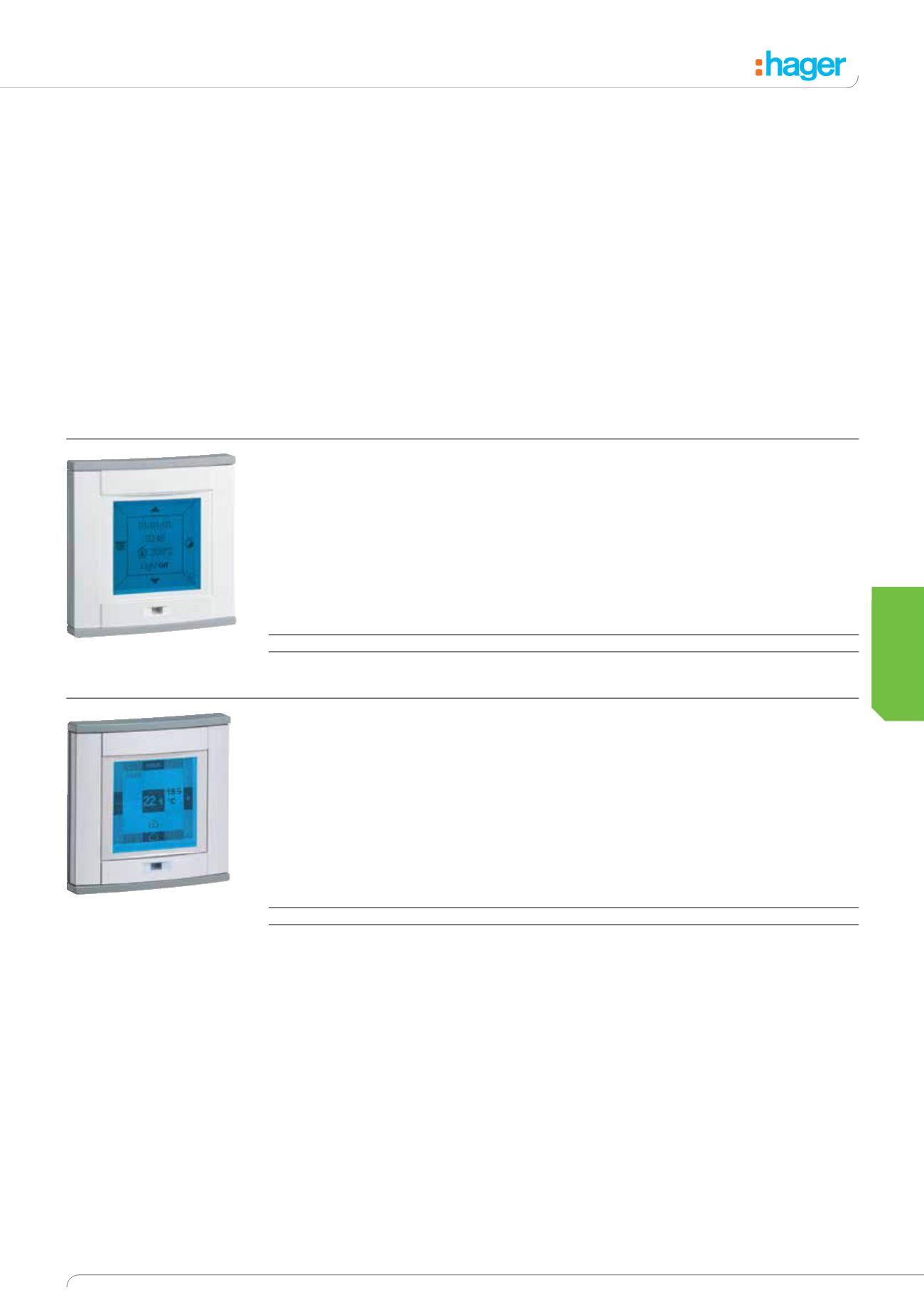

Room Controller
Functions:
• ON/OFF control
• Up/Down control
• Dimming control
• Scenario selection
• Heating control
• Timing functions
• Switching functions with AND/OR logic
• Display of parameter status
Colour
Dimensions h x w (mm)
Supply
Cat ref.
White
80 x 80
Bus 30V DC
TX450A
Silver
80 x 80
Bus 30V DC
TX450B
Room Controller with Temperature Regulator
Functions:
Modes of operation:
• ON/OFF control
• Comfort
• Up/Down control
• Standby
• Dimming control
• Night
• Scenario selection
• Frost / Heat
• Heating control
• PID Automatic
• Timing functions
• Switching functions with
AND/OR logic
• Display of parameter status
Colour
Dimensions h x w (mm)
Supply
Cat ref.
White
80 x 80
Bus 30V DC
TX460A
Silver
80 x 80
Bus 30V DC
TX460B
TX450A
TX460B
