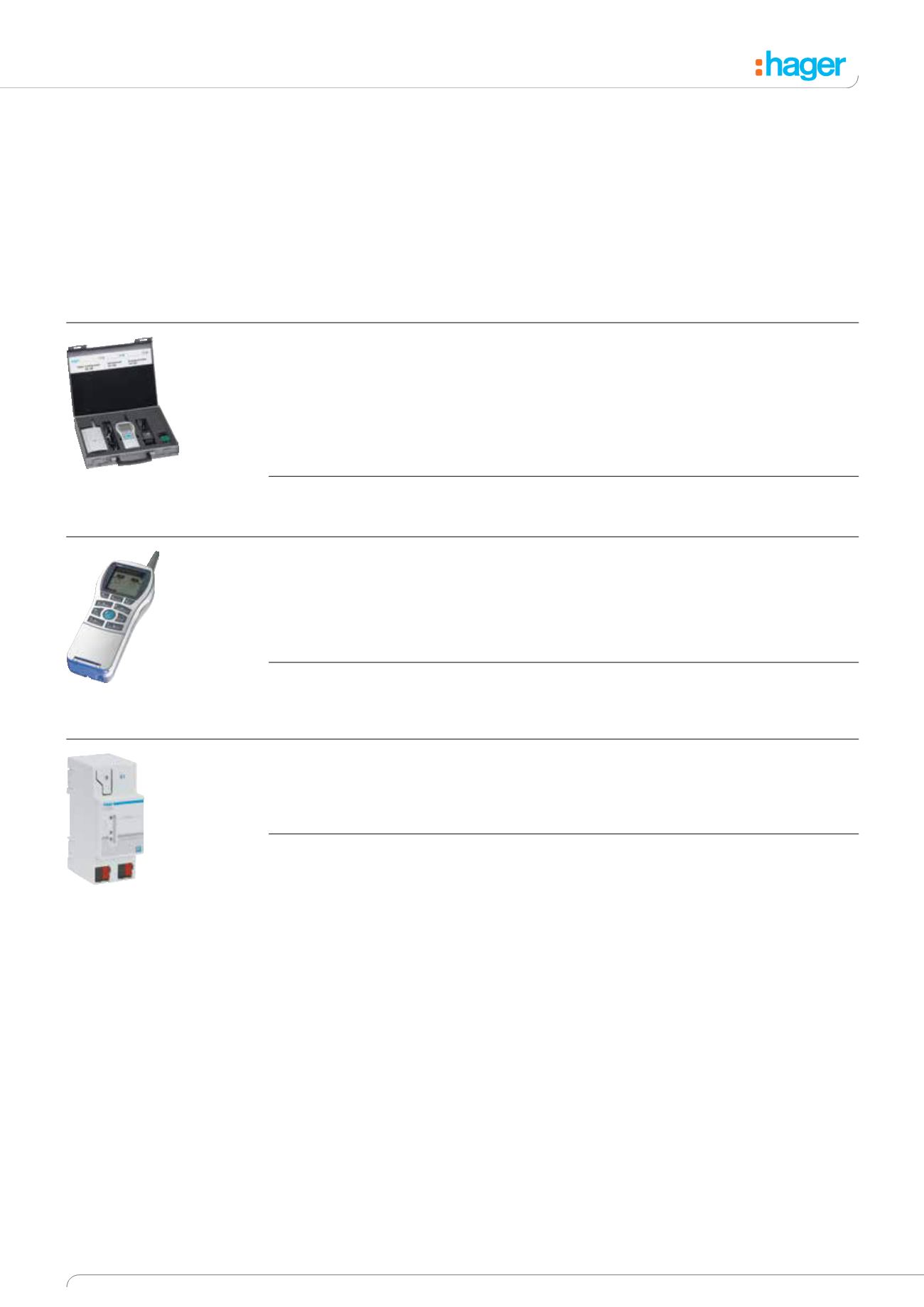

General Catalogue • tebis.KNX
tebis.KNX
System Components and Accessories
Line Coupler
Allows you to carry out the extension of a wire/bus line.
Description
Characteristics
Width
Config.
Cat ref.
(35mm)
Necessary in case of systems
Supply: bus 30V DC
2 Mod TX/ETS
TA008
with more than 64 wire products Connectsby two TG008
bus connectors
The tebis system enables the
installer and user to control the
electrical installation in a simple
and comfortable way (lighting,
blinds, heating, etc.)
The tebis offer includes radio
and twisted pair products, which
are suitable for use in new
installations and renovation.
Products comply to the KNX
standard.
The products below are the
components needed to perform,
configure or extend an existing
tebis.KNX installation.
TX100GB Configurator
This tool is used for
programming of the entire
system whether it is wire, radio
or both. The dialogue and
download with the wire products
is carried out via the media
coupler.
Other functions :
• Tests the links and commands
• Measurement of radio
environment interference level
• Copy of the system data on
a USB flash drive or creation
of project documentation with
additional software.
USB flash drive; Delivered with
TX100GB, TX101GB kit.
For technical details see page
6.20.
TX101B Configurator Kit
Kit includes:
• TX100GB configurator
• TR 130B media coupler with 230V power cable
• USB Flash Drive Storage
• 4 rechargeable batteries Ni-Mh 1.2 V 1550 mA/h
• 230 V / 9 V 1 A mini charger
Description
Dimensions (mm)
Config.
Cat ref.
Frequency: 868.3 MHz
Box: 345 x 291 x 65
TX
TX101GB
TX100GB: 217 x 75 x 36
TX100GB Configurator
Includes:
• USB Flash Drive Storage
• 4 rechargable batteries Ni-Mh 1.2V
• 230V / 9V 1A mini charger
Description
Dimensions (mm)
Config.
Cat ref.
TX100GB Configurator
217 x 75 x 36
TX
TX100GB
TA008
TX101GB
TX100GB
