General Catalogue • tebis.KNX
tebis.KNX
Push-Buttons and Remote Controls
Radio push-buttons and remote
controls enable easy addition
of control points without wiring
work. They are suitable for all
situations : new systems,
renovations or post installation.
These products are included
in tebis system. They control
both radio output modules as
well as twisted pair products via
TR131B.
Radio Push-Buttons
These are unidirectional radio
emitters in the KNX standard.
They exist in 2, 4 or 6 ways in
surface mounting boxes of white
or silver colour.
Solar Radio Push-Button
Does not require replacement
batteries.
Radio Remote Control
These are portable radio
emitters of EIB/KNX standard.
The remote controls are
available in 4, 8 and 24 ways.
Putting Into Service
Allocation of the links is carried
out by TX100GB configurator.
These products also
communicate with twisted pair
products via the TR131B bus
radio / twisted pair
General characteristics of the
radio system
• Frequency : 868.3 MHz
• Range : it is variable
according to the environment :
up to 30m inside, up to 100m
in free air.
Working temperature :
0°C to +45°C
A measurement of the signal
interference is possible by
TX100GB
RF system
• Maximum number of RF
products = 256
• Maximum number of RF input
translations by the media
coupler to twisted pair output
products = 63
For technical details see page
6.38.

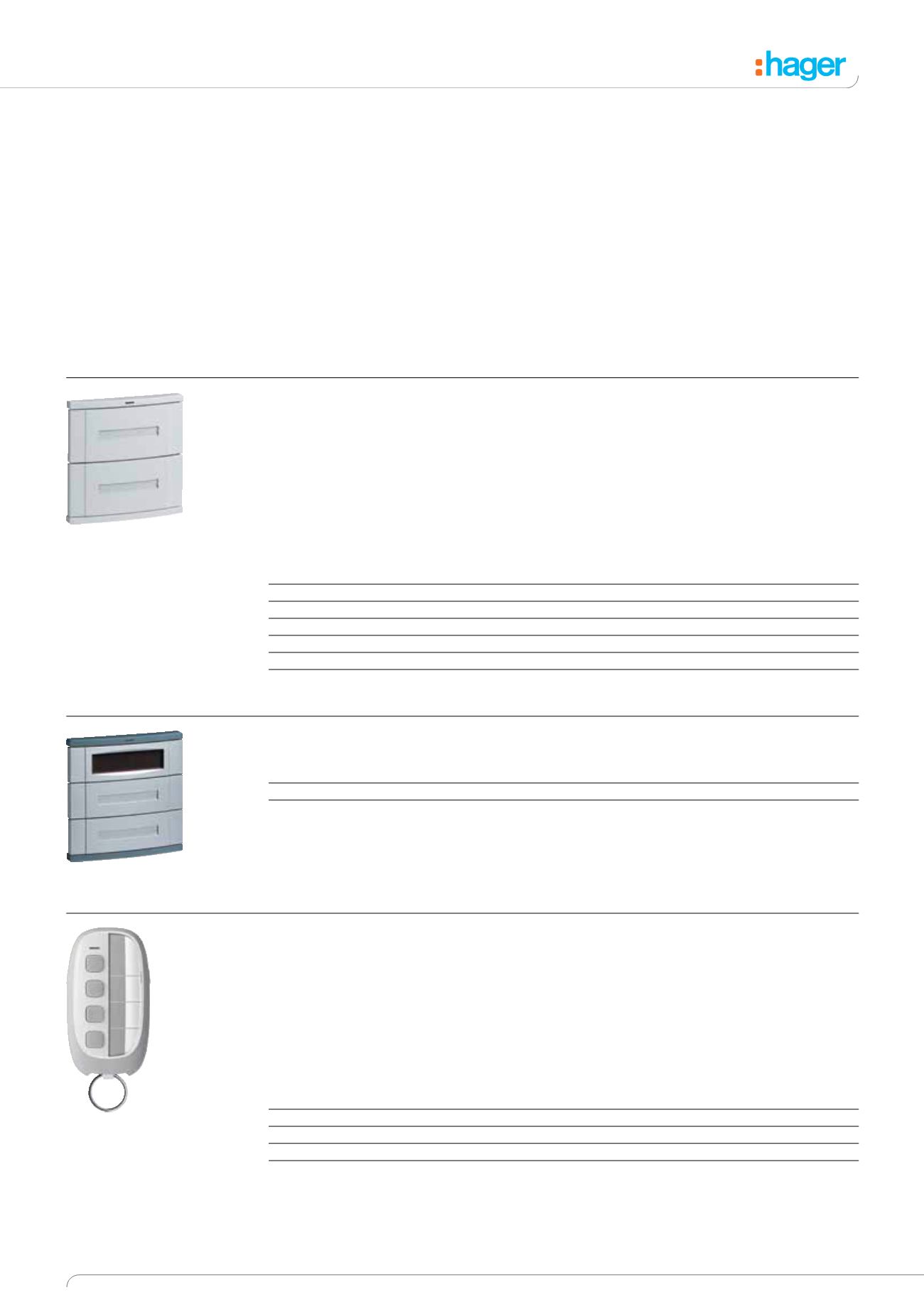

Push-Buttons with and without Label Holders Radio KNX
Power supply: C2430 3.0V Battery Cells (Life 3 Years)
Unidirectional products: Emitter
Transmission indicated by LED
Functions:
• Start/Stop, Dimming
• Up/Down + Alarm
• Override
• Scenarios
Description
Colour
Dimensions (mm)
Cat ref.
Cat ref.
without labels
with labels
2 Way Push-Button Keys
White
80.5 x 80.5 x 12
TD100
TD110
2 Way Push-Button Keys
Silver
80.5 x 80.5 x 12
TD101
TD111
4 Way Push-Button Keys
White
80.5 x 80.5 x 12
TD200
TD210
4 Way Push-Button Keys
Silver
80.5 x 80.5 x 12
TD201
TD211
6 Way Push-Button Keys
White
80.5 x 80.5 x 12
TD300
TD310
6 Way Push-Button Keys
Silver
80.5 x 80.5 x 12
TD301
TD311
KNX Solar Push-Button
Description
Colour
Dimensions (mm)
Cat ref.
without labels
4 Way Push-Button Keys
White
80.5 x 80.5 x 12
TD250
4 Way Push-Button Keys
Silver
80.5 x 80.5 x 12
TD251
KNX Radio Remote Controls
Power supply: CR 2430 3V Lithium Battery Cell (life 3 years)
Unidirectional products: Emitter
Transmission indicated by LED
Functions:
• Start/Stop, Dimming
• Up/Down + Alarm
• Override
• Scenarios
Description
No of Keys
Cat ref.
2 Channel Remote Control
2
TU402
4 Channel Remote Control
4
TU404
6 Way Remote Control
6
TU406
18 Way Remote Control
6 + 1
TU418
TD210
TU404
TD251
