Lighting, Connection
& Control
Klik 7 Pin
Product Standards, Mounting Methods

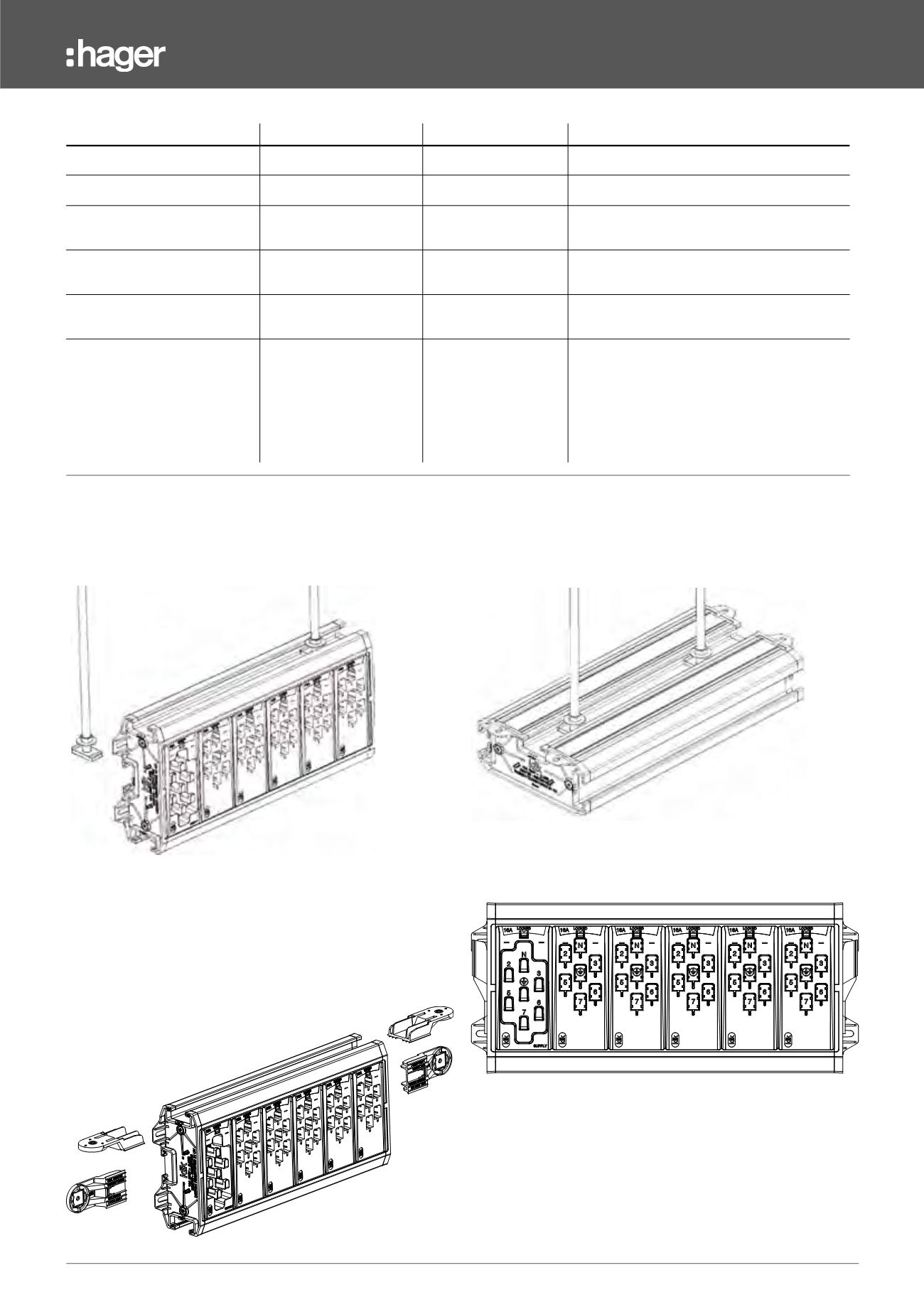

Mounting Options for Drop Rod
Option 1.
Klik 7 Pin LMB features open ends to allow you to slide the box into position
before tightening for easier installation, or push the box up on to the nut and
rotate to locate and tighten to secure.
Mounting Options for Wall & Ceiling
Klik 7 Pin LMB includes the Klik mounting accessory, this makes it much easier
to mount LMB with Nail Guns or traditional fixings. 2 accessories are included
with each LMB. Mounting Accessory can be clipped into the rear or top channel
slot. It can be easily removed by inserting a screwdriver in the RELEASE slot.
Note: Double sided LMB can only be mounted on top channel slot.
Screw mounting tabs (x4)
Option 2.
Single sided LMB can be mounted from the top as option 1 or from the rear as
shown. Note: Double sided LMBs can only be mounted with option 1.
Product Description
Klik Product identification BS number
Description
Klik 7 pin Marshalling Boxes
KLMB*W
BS 5733:2010
General Requirements for Electrical Accessories.
Occupancy Sensor
EEK*
IEC 60669-1,
IEC 60669-2-1
Switches for household & similar fixed electrical
installations Part 2-1 for Electronic switches.
Conduit Box /
Surface Connector
KLPCR/7
BS 5733:2010
General requirements for Luminaire supporting couplers
for domestic, light industrial &
commercial use.
Luminaire Leads
KLB*, KLJ*, KLP*, KLT*
BS 5733:2010
BS EN 61535
General Requirements for Electrical Accessories.
Installation couplers intended for permanent connection
in fixed installations.
LSZH Flexible Cord
Supplied with luminaire lead
BS 6500:2000
BS 7211:1998
Flexible cords rated to 300/350V for use with appliances
& equipment intended for domestic, office & similar
environments.
Klik Lighting Control Module
KLCM
BS 5733:2010
F pr EN 60669-2-5
BS EN 61335:2009
General Requirements for Electrical Accessories.
Switches for household and similar fixed electrical
installations - Part 2-5: Particular requirements -
Switches for related accessories for use in home and
building electronic systems
Installation couplers intended for permanent connection
in fixed installations. Excluding classes 10.1 & 10.3 are
to aluminium enclosures
