K2151WHI
10
1 GANG
ARCHITRAVE BOX
K2151WHI
Earth terminal fitted in base.
DIMENSIONS
87 x 33 x 16mm
FIXING CENTRES
60.3mm
BS 5733:1995
2ECR13WHI
25
2ECR13BLK
25
20MM LOOP-IN
2ECR1WHI
25
2ECR1BLK
25
20MM BACK OUTLET
2ECR3WHI
25
2ECR3BLK
25
20MM TWO WAY
2ECR8WHI
10
2ECR8BLK
10
20MM TWO WAY AND
BACK OUTLET
CONDUIT BOXES
20mm Loop-in boxes have 4 x 20mm
knockouts on underside.
MATERIAL
PVC-U
LID FIXING CENTRES
50.8mm
PILLAR THREAD SIZE
M4 (Brass inserts) All boxes contain a
moulded recess for earth terminal.
See pages 354 for the
full selection of circular
conduit boxes.

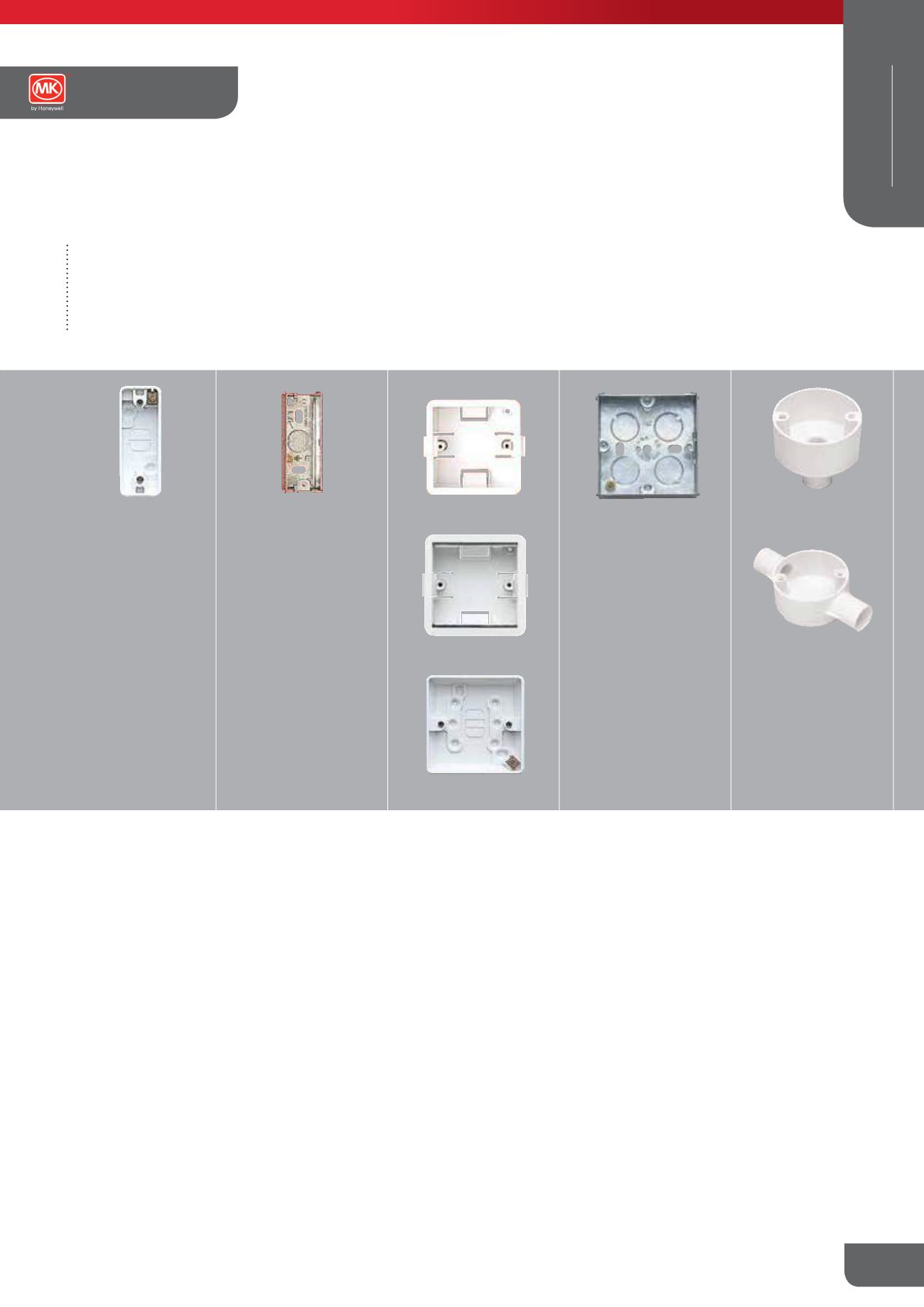

Mounting
Boxes
ARCHITRAVE
MOULDED
FLUSH
STEEL
FLUSH
STEEL
FLUSH
SQUARE
MOULDED
FLUSH
CIRCULAR
SURFACE
3921ZIC
10
1 GANG
ARCHITRAVE BOX
With earth terminal
DIMENSIONS
75 x 27 x 27mm
FIXING CENTRES
60.3mm
KNOCKOUTS
3 x 16mm
BS 4662:1970
861ZIC
10
1 GANG
ONE ADJUSTABLE LUG
With earth terminal
DIMENSIONS
75 x 75mm
FIXING CENTRES
60.3mm
KNOCKOUTS
12 x 20mm
BS 4662:1970
QFB1WHI
20
1 GANG
DRY LINING BOX
QFB/IG1
20
1 GANG
DRY LINING BOX
WITH INTUMESCENT GASKET
K2160WHI
10
1 GANG 16MM
MOULDED BOX
QFB1
All round flange for flush fit. One piece
moulded lug automatically snaps into
place. No rear projections. Clamp device
on cable entry. Will accommodate
partition thicknesses between 6mm and
16mm. Earth terminal facility.
K2160WHI
Earth terminal fitted in base of boxes.
DIMENSIONS
K2160: 87 x 87mm
FIXING CENTRES
60.3mm
BS 5733:1995
QFB/IG1
Pre-fitted with intumescent gaskets to
give fire protection, in accordance with
BS 476 Pt 22:1987. In a fire situation,
a chemical reaction will occur with the
intumescent material. The void behind
the wiring device will be filled, providing
protection against the passage of fire.
BS 4662:1970 where applicable.
2ECR1WHI
QFB1WHI
QFB/IG1
3921ZIC
K2160WHI
K2151WHI
2ECR3WHI
861ZIC
GENERAL SPECIFICATION
Rated voltage for all plugs, sockets and pre-wired assemblies 250V 50Hz
Rated load current for all plugs, sockets and pre-wired assemblies 6A
Static suspension load for plugs, sockets and pre-wired assemblies 5kg max.
